Underbody Rear (Coupe)

Aston Martin V8 Vantage (upto 2016)

Find Your Part

Aston Martin V8 Vantage (upto 2016) - Underbody Rear (Coupe)

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
AG33C103B44AA Member, rear, centre section, upper Enquire To Order
Photo Part No Description Price (each) Stock
6G33C10786AD Member, rear floor, centre section, front Enquire To Order
Photo Part No Description Price (each) Stock
CG3310798AA Reinforced front floor, centre section rear, RH Enquire To Order
6G33-10798-AJ REINF FRONT FLOOR CROSS REAR $99.05 To Order
Photo Part No Description Price (each) Stock
AD2310799AA Reinforced front floor, centre section rear, LH Enquire To Order
BG33-10799-AA REINF FRONT FLOOR CROSS REAR $52.17 To Order
BG33-10799-AA REINF FRONT FLOOR CROSS REAR $52.17 To Order
Photo Part No Description Price (each) Stock
7G33-111B22-AA Reinforcement, Front Floor Pan to Side Member Rear, RH $77.73 To Order
Photo Part No Description Price (each) Stock
7G33-111B23-AC REINF FRONT FLOOR PAN TO SIDEMEMBER REAR LH $81.33 To Order
Photo Part No Description Price (each) Stock
AG33-109A68-AB MBR FRT FLR CS RR RH $228.35 To Order
6G33109A68AE Member, front floor centre section, rear, RH Enquire To Order
Photo Part No Description Price (each) Stock
GOBG33109A69AE Member, front floor centre section, rear, LH Enquire To Order
GOBG33-109A69-BA MBR FRT FLR CS RR LH $140.99 To Order
Photo Part No Description Price (each) Stock
6G33-347863-AC Nutplate, Rear Subframe Front, M14 $20.41 To Order
Photo Part No Description Price (each) Stock
6G3327924AG Panel, Rear Quarter, Inner, RH Enquire To Order
Photo Part No Description Price (each) Stock
AD23-27925-AA Panel, Rear Quarter, Inner, LH $61.93 To Order
8G33-27925-AA PANEL REAR QUARTER INSIDE LH $66.12 To Order
Photo Part No Description Price (each) Stock
6G33C10282AA Member, floor side upper rear, RH Enquire To Order
6G33C101K92AE Member, floor side upper rear, RH Enquire To Order
Photo Part No Description Price (each) Stock
AG33-C10283-AA Member Assy, Rear Floor Side Upper, LH $117.41 To Order
6G33C101K93AE Member, floor side upper rear, LH Enquire To Order
Photo Part No Description Price (each) Stock
6G3310470AB Member, floor side inner rear, RH Enquire To Order
Photo Part No Description Price (each) Stock
6G3310471AB Member, floor side inner rear, LH Enquire To Order
Photo Part No Description Price (each) Stock
6G3310504AC Member, extension floor side lower rear, RH (not illustrated) Enquire To Order
Photo Part No Description Price (each) Stock
6G33-10505-AF EXTRUSION FLOOR SIDE LOWER MEMBER REAR LH $56.49 To Order
Photo Part No Description Price (each) Stock
AG33-24312-AA Pillar, Centre Body, RH $266.62 To Order
Photo Part No Description Price (each) Stock
AG33-24313-AA Pillar, Centre Body, LH $266.62 To Order
Photo Part No Description Price (each) Stock
6G33-C393126-AB NUTPLATE B POST M8 $10.94 To Order
Photo Part No Description Price (each) Stock
6G3324576AB Panel, centre body plr, RH Enquire To Order
Photo Part No Description Price (each) Stock
6G3324577AB Panel, centre body plr, LH Enquire To Order
Photo Part No Description Price (each) Stock
6G33C243A60AE Reinforced centre body, upper outer pillar, centre, RH Enquire To Order
Photo Part No Description Price (each) Stock
6G33C243A61AE Reinforced centre body, upper outer pillar, centre, LH Enquire To Order
Photo Part No Description Price (each) Stock
6G33-24314-AB PILLAR CENTRE BODY OUTER REAR RH $248.20 To Order
Photo Part No Description Price (each) Stock
AD2324315AA Pillar, centre body outer rear, LH Enquire To Order
Photo Part No Description Price (each) Stock
6G33C24326AB Pillar, centre body inner rear, RH Enquire To Order
Photo Part No Description Price (each) Stock
6G33C24327AB Pillar, centre body inner rear, LH Enquire To Order
Photo Part No Description Price (each) Stock
6G3324320AB Reinf, centre body pillar Enquire To Order
Photo Part No Description Price (each) Stock
AG3310762AB Support, battery tray Enquire To Order
Photo Part No Description Price (each) Stock
6G33-602A66-AA Plate, Front Seat Belt Attachment $9.84 To Order

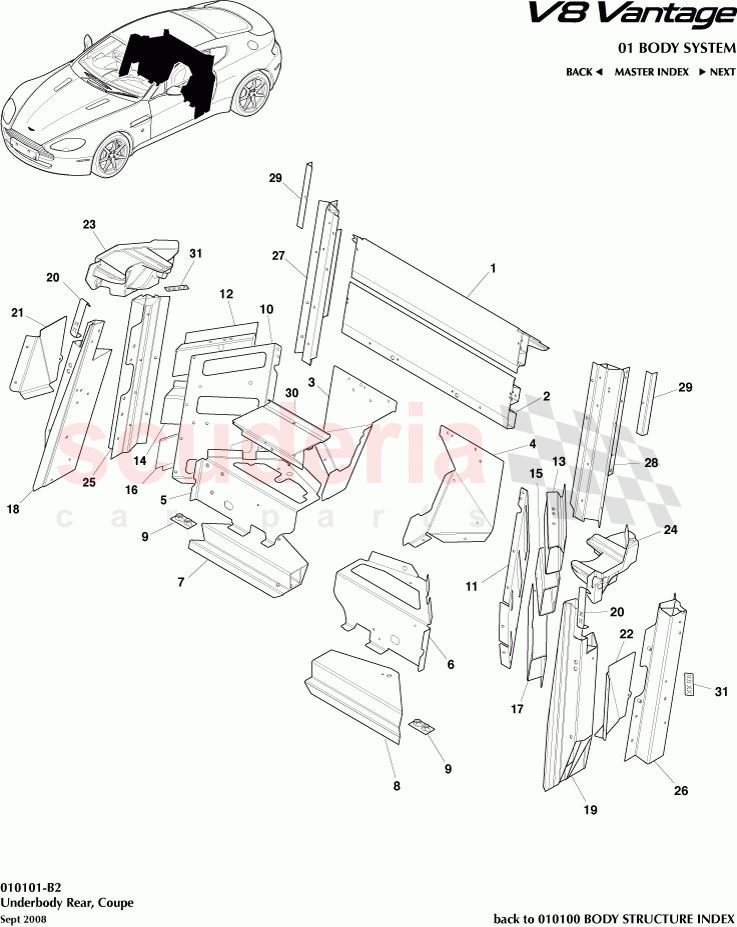

Underbody Rear (Coupe) of Aston Martin Aston Martin V8 Vantage (upto 2016) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 AG33C103B44AA
Member, rear, centre section, upper
Structural Cat. A only 		- 1
PE
 Enquire
2 6G33C10786AD
Member, rear floor, centre section, front
Structural Cat. A only 		- 1
PE
 Enquire
3 CG3310798AA
Reinforced front floor, centre section rear, RH
12MY, Structural Cat. A only 		- 1
PE
 Enquire
3 6G33-10798-AJ
REINF FRONT FLOOR CROSS REAR
Structural Cat. A only 		$99.05 1
TO
4 AD2310799AA
Reinforced front floor, centre section rear, LH
09MY, Structural Cat. A only 		- 1
PE
 Enquire

BG33-10799-AA

REINF FRONT FLOOR CROSS REAR

from $52.17

5 7G33-111B22-AA
Reinforcement, Front Floor Pan to Side Member Rear, RH
Structural Cat. A only 		$77.73 1
TO
6 7G33-111B23-AC
REINF FRONT FLOOR PAN TO SIDEMEMBER REAR LH
Structural Cat. A only 		$81.33 1
TO
7 AG33-109A68-AB
MBR FRT FLR CS RR RH
09MY, Structural Cat. A only 		$228.35 1
TO
7 6G33109A68AE
Member, front floor centre section, rear, RH
Structural Cat. A only 		- 1
PE
 Enquire
8 GOBG33109A69AE
Member, front floor centre section, rear, LH
11MY, Structural Cat. A only 		- 1
PE
 Enquire
8 GOBG33-109A69-BA
MBR FRT FLR CS RR LH
Structural Cat. A only 		$140.99 1
TO
9 6G33-347863-AC
Nutplate, Rear Subframe Front, M14
Structural Cat. A only 		$20.41 2
TO
10 6G3327924AG
Panel, Rear Quarter, Inner, RH
Structural Cat. A only 		- 1
PE
 Enquire
11 AD23-27925-AA
Panel, Rear Quarter, Inner, LH
10MY, Structural Cat. A only 		$61.93 1
TO
11 8G33-27925-AA
PANEL REAR QUARTER INSIDE LH
Structural Cat. A only 		$66.12 1
TO
12 6G33C10282AA
Member, floor side upper rear, RH
10.5MY, Structural Cat. A only 		- 1
PE
 Enquire
12 6G33C101K92AE
Member, floor side upper rear, RH
Structural Cat. A only 		- 1
PE
 Enquire
13 AG33-C10283-AA
Member Assy, Rear Floor Side Upper, LH
10.5MY, Structural Cat. A only 		$117.41 1
TO
13 6G33C101K93AE
Member, floor side upper rear, LH
Structural Cat. A only 		- 1
PE
 Enquire
14 6G3310470AB
Member, floor side inner rear, RH
Structural Cat. A only 		- 1
PE
 Enquire
15 6G3310471AB
Member, floor side inner rear, LH
Structural Cat. A only 		- 1
PE
 Enquire
16 6G3310504AC
Member, extension floor side lower rear, RH (not illustrated)
Structural Cat. A only 		- 1
PE
 Enquire
17 6G33-10505-AF
EXTRUSION FLOOR SIDE LOWER MEMBER REAR LH
Structural Cat. A only 		$56.49 1
TO
18 AG33-24312-AA
Pillar, Centre Body, RH
Structural Cat. A only 		$266.62 1
TO
19 AG33-24313-AA
Pillar, Centre Body, LH
Structural Cat. A only 		$266.62 1
TO
20 6G33-C393126-AB
NUTPLATE B POST M8
Structural Cat. A only 		$10.94 2
TO
21 6G3324576AB
Panel, centre body plr, RH
Structural Cat. A only 		- 1
PE
 Enquire
22 6G3324577AB
Panel, centre body plr, LH
Structural Cat. A only 		- 1
PE
 Enquire
23 6G33C243A60AE
Reinforced centre body, upper outer pillar, centre, RH
Structural Cat. A only 		- 1
PE
 Enquire
24 6G33C243A61AE
Reinforced centre body, upper outer pillar, centre, LH
Structural Cat. A only 		- 1
PE
 Enquire
25 6G33-24314-AB
PILLAR CENTRE BODY OUTER REAR RH
Structural Cat. A only 		$248.20 1
TO
26 AD2324315AA
Pillar, centre body outer rear, LH
Structural Cat. A only 		- 1
PE
 Enquire
27 6G33C24326AB
Pillar, centre body inner rear, RH
Structural Cat. A only 		- 1
PE
 Enquire
28 6G33C24327AB
Pillar, centre body inner rear, LH
Structural Cat. A only 		- 1
PE
 Enquire
29 6G3324320AB
Reinf, centre body pillar
Structural Cat. A only 		- 2
PE
 Enquire
30 AG3310762AB
Support, battery tray
Structural Cat. A only 		- 1
PE
 Enquire
31 6G33-602A66-AA
Plate, Front Seat Belt Attachment
Structural Cat. A only 		$9.84 2
TO
