Aston Martin V8 Vantage (upto 2016) - Underbody

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
6G33-16-10440S ASY FLR RH-STAMPED $1,264.47 To Order
Photo Part No Description Price (each) Stock
6G33-16-10441 ASSEMBLY FLOOR LH $835.75 To Order
Photo Part No Description Price (each) Stock
BG33120780AA Panel, transmission tunnel, RH $339.12 To Order
6G33-120780-AG PANEL TRANS TUNNEL RH $243.86 To Order
Photo Part No Description Price (each) Stock
BG33120781AA Panel, transmission tunnel, LH $339.12 To Order
6G33-120781-AE PANEL TRANS TUNNEL LH $301.18 To Order
Photo Part No Description Price (each) Stock
6G33-20-10437 FRONT SUBRAME UPRIGHT ASSY RH $256.32 To Order
Photo Part No Description Price (each) Stock
6G33-20-10438 FRONT SUBRAME UPRIGHT ASSY LH $256.32 To Order
Photo Part No Description Price (each) Stock
8G43-434K10-AA NUTPLATE FRONT END MOUNTING OUTER RH M12 $93.23 To Order
Photo Part No Description Price (each) Stock
8G43-434K11-AA NUTPLATE FRONT END MOUNTING OUTER LH M12 $22.61 To Order
Photo Part No Description Price (each) Stock
8G43-390725-AA NUT PLATE FRONT END MOUNTING INR M12 $34.21 To Order
Photo Part No Description Price (each) Stock
AG33-10120-AA MEMBER FLOOR SIDE FRONT $274.09 To Order
Photo Part No Description Price (each) Stock
9G33L1898AA Sill assy, outer, RH Enquire To Order
AG33-C10026-AA MBR FLR SD LWR RH $773.70 To Order
Photo Part No Description Price (each) Stock
9G33L1899AA Sill assy, outer, LH Enquire To Order
AG33-C10027-AA MBR FLR SD LWR LH $773.70 To Order
Photo Part No Description Price (each) Stock
AG3310276AA Member, front side, RH Enquire To Order
Photo Part No Description Price (each) Stock
AG3310277AA Member, front side, LH Enquire To Order
Photo Part No Description Price (each) Stock
GOAG33100A94AA Member, Lower Reinforcement, Front Side, RH $63.41 To Order
Photo Part No Description Price (each) Stock
GOAG33-100A95-AA Member, Lower Reinforcement, Front Side, LH $63.41 To Order
Photo Part No Description Price (each) Stock
GOAG33-10094-AA REINF MEMBER FRONT SIDE RH $79.34 To Order
Photo Part No Description Price (each) Stock
GOAG33-10095-AA REINF MEMBER FRONT SIDE LH $79.34 To Order
Photo Part No Description Price (each) Stock
AG3310772AA Extrusion, tunnel, RH Enquire To Order
Photo Part No Description Price (each) Stock
AG3310773AA Extrusion, tunnel, LH Enquire To Order
Photo Part No Description Price (each) Stock
GOAG33-F02599-AB Cross Member, body front $130.04 To Order
Photo Part No Description Price (each) Stock
BG33113C18AA Panel, tunnel, top front Enquire To Order
Photo Part No Description Price (each) Stock
BG3311160AA Panel, tunnel, top Enquire To Order

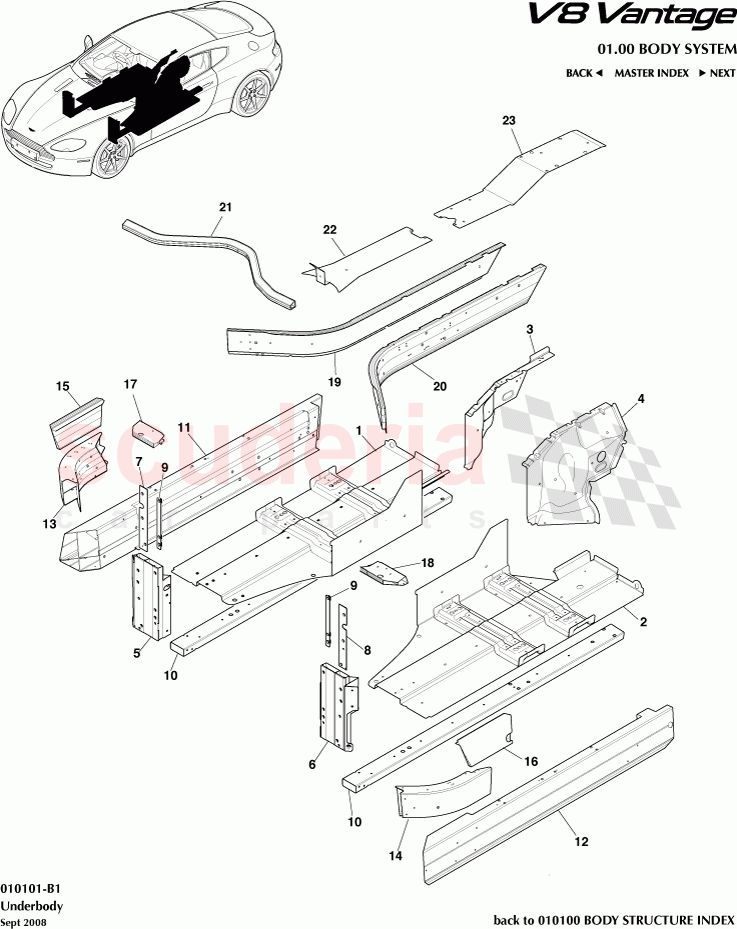

Underbody of Aston Martin Aston Martin V8 Vantage (upto 2016) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 6G33-16-10440S
ASY FLR RH-STAMPED
VIN stamp required, Structural Cat. A only 		$1,264.47 1
TO
2 6G33-16-10441
ASSEMBLY FLOOR LH
Structural Cat. A only 		$835.75 1
TO
3 BG33120780AA
Panel, transmission tunnel, RH
11MY, Structural Cat. A only 		$339.12 1
TO
3 6G33-120780-AG
PANEL TRANS TUNNEL RH
Structural Cat. A only 		$243.86 1
TO
4 BG33120781AA
Panel, transmission tunnel, LH
11MY, Structural Cat. A only 		$339.12 1
TO
4 6G33-120781-AE
PANEL TRANS TUNNEL LH
Structural Cat. A only 		$301.18 1
TO
5 6G33-20-10437
FRONT SUBRAME UPRIGHT ASSY RH
Structural Cat. A only 		$256.32 1
TO
6 6G33-20-10438
FRONT SUBRAME UPRIGHT ASSY LH
Structural Cat. A only 		$256.32 1
TO
7 8G43-434K10-AA
NUTPLATE FRONT END MOUNTING OUTER RH M12
Structural Cat. A only 		$93.23 1
TO
8 8G43-434K11-AA
NUTPLATE FRONT END MOUNTING OUTER LH M12
Structural Cat. A only 		$22.61 1
TO
9 8G43-390725-AA
NUT PLATE FRONT END MOUNTING INR M12
Structural Cat. A only 		$34.21 2
TO
10 AG33-10120-AA
MEMBER FLOOR SIDE FRONT
Structural Cat. A only 		$274.09 2
TO
11 9G33L1898AA
Sill assy, outer, RH
Roadster, Structural Cat. A only 		- 1
PE
 Enquire
11 AG33-C10026-AA
MBR FLR SD LWR RH
Coupe, Structural Cat. A only 		$773.70 1
TO
12 9G33L1899AA
Sill assy, outer, LH
Roadster, Structural Cat. A only 		- 1
PE
 Enquire
12 AG33-C10027-AA
MBR FLR SD LWR LH
Coupe, Structural Cat. A only 		$773.70 1
TO
13 AG3310276AA
Member, front side, RH 		- 1
PE
 Enquire
14 AG3310277AA
Member, front side, LH 		- 1
PE
 Enquire
15 GOAG33100A94AA
Member, Lower Reinforcement, Front Side, RH 		$63.41 1
TO
16 GOAG33-100A95-AA
Member, Lower Reinforcement, Front Side, LH 		$63.41 1
TO
17 GOAG33-10094-AA
REINF MEMBER FRONT SIDE RH 		$79.34 1
TO
18 GOAG33-10095-AA
REINF MEMBER FRONT SIDE LH 		$79.34 1
TO
19 AG3310772AA
Extrusion, tunnel, RH 		- 1
PE
 Enquire
20 AG3310773AA
Extrusion, tunnel, LH 		- 1
PE
 Enquire
21 GOAG33-F02599-AB
Cross Member, body front 		$130.04 1
TO
22 BG33113C18AA
Panel, tunnel, top front 		- 1
PE
 Enquire
23 BG3311160AA
Panel, tunnel, top 		- 1
PE
 Enquire
