Rear Suspension Assembly

Aston Martin V12 Vantage (upto 2016)

Find Your Part

Aston Martin V12 Vantage (upto 2016) - Rear Suspension Assembly

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
AD23-5A970-AA KNUCKLE - REAR WHEEL RH $1,807.13 To Order
AD335A971AA Knuckle, Rear Wheel, LH Enquire To Order
Photo Part No Description Price (each) Stock
4G43-2B663-AD HUB & BEARING ASSEMBLY, FRONT $557.27 IN STOCK
Photo Part No Description Price (each) Stock
4G43-0783-AA-PK Hub Bolt M10 x 55 x 1.25 (Pack of 5) $25.87 IN STOCK
Photo Part No Description Price (each) Stock
6G33-5K742-AA Arm & Bushing Assy, Rear Suspension, Upper, RH $772.99 To Order
8D335K743AA Arm assy, upper, rear suspension, LH Enquire To Order
Photo Part No Description Price (each) Stock
AD33-487029-AA Bolt, M12 x 110, Hex Flange Head $9.25 IN STOCK
Photo Part No Description Price (each) Stock
703565 NUT-M12 HEX FLANGE $1.20 IN STOCK
Photo Part No Description Price (each) Stock
703181 BOLT M12 X 85 HEX FLANGE CHROME FREE $11.82 IN STOCK
Photo Part No Description Price (each) Stock
6G33-5B530-AE SUSPENSION ARM LOWER RH $682.02 IN STOCK
6G33-5B531-AE SUSPENSION ARM LOWER LH $682.02 IN STOCK
Photo Part No Description Price (each) Stock
703133 BOLT M14 X 110 HEX FLANGE CHROME FREE $20.51 IN STOCK
Photo Part No Description Price (each) Stock
704596 Nut, M14, Hex Flange Head $1.32 IN STOCK
Photo Part No Description Price (each) Stock
CG43-08024-AA BOLT M12 X 90 HEXAGON HEAD FLANGED $6.33 IN STOCK
Photo Part No Description Price (each) Stock
703274 Bolt, M12, Eccentric $44.61 IN STOCK
Photo Part No Description Price (each) Stock
4G43-26-10840-PK WASHER-M12 ECCENTRIC PACK OF 10 $16.26 To Order
Photo Part No Description Price (each) Stock
4G43-5B551-AA TOE CONTROL ARM REAR SUSPENSION RH $682.09 IN STOCK
Photo Part No Description Price (each) Stock
4G43-5K978-AB Bolt, M12, Eccentric $43.00 IN STOCK

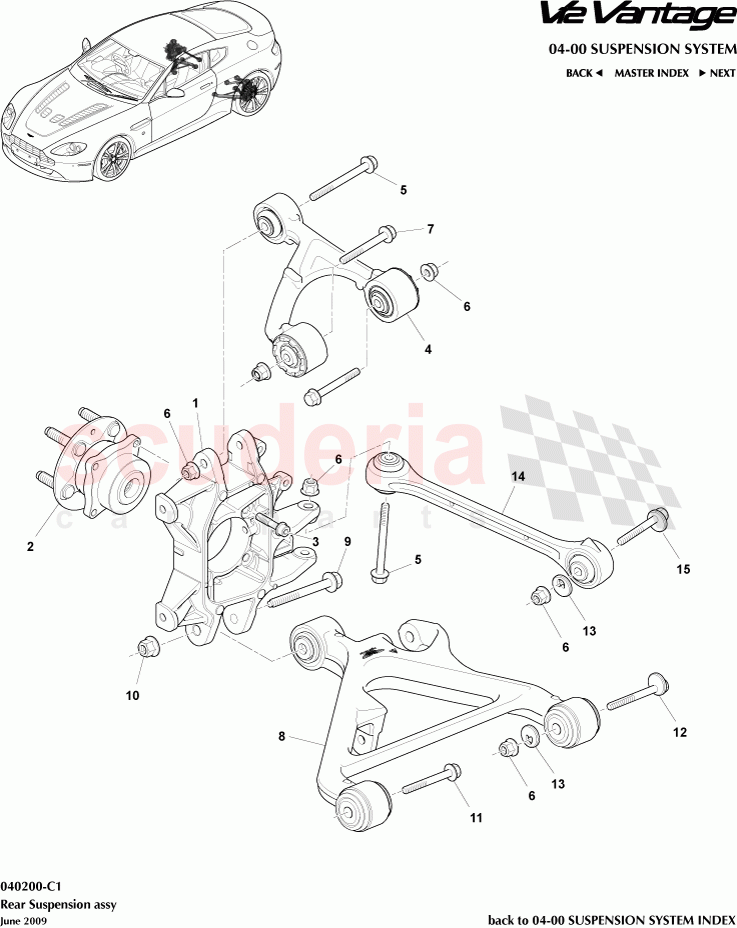

Rear Suspension Assembly of Aston Martin Aston Martin V12 Vantage (upto 2016) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 AD23-5A970-AA
KNUCKLE - REAR WHEEL RH 		$1,807.13 1
TO
1 AD335A971AA
Knuckle, Rear Wheel, LH 		- 1
PE
 Enquire
2 4G43-2B663-AD
HUB & BEARING ASSEMBLY, FRONT
IN STOCK 		$557.27 2
IN
3 4G43-0783-AA-PK
Hub Bolt M10 x 55 x 1.25 (Pack of 5)
IN STOCK 		$25.87 8
IN
4 6G33-5K742-AA
Arm & Bushing Assy, Rear Suspension, Upper, RH 		$772.99 1
TO
4 8D335K743AA
Arm assy, upper, rear suspension, LH 		- 1
PE
 Enquire
5 AD33-487029-AA
Bolt, M12 x 110, Hex Flange Head
IN STOCK 		$9.25 4
IN
6 703565
NUT-M12 HEX FLANGE
IN STOCK 		$1.20 12
IN
7 703181
BOLT M12 X 85 HEX FLANGE CHROME FREE
IN STOCK 		$11.82 4
IN
8 6G33-5B530-AE
SUSPENSION ARM LOWER RH
IN STOCK 		$682.02 1
IN
8 6G33-5B531-AE
SUSPENSION ARM LOWER LH
IN STOCK 		$682.02 1
IN
9 703133
BOLT M14 X 110 HEX FLANGE CHROME FREE
IN STOCK 		$20.51 2
IN
10 704596
Nut, M14, Hex Flange Head
IN STOCK 		$1.32 2
IN
11 CG43-08024-AA
BOLT M12 X 90 HEXAGON HEAD FLANGED
IN STOCK 		$6.33 2
IN
12 703274
Bolt, M12, Eccentric
IN STOCK 		$44.61 2
IN
13 4G43-26-10840-PK
WASHER-M12 ECCENTRIC PACK OF 10 		$16.26 4
TO
14 4G43-5B551-AA
TOE CONTROL ARM REAR SUSPENSION RH
IN STOCK 		$682.09 2
IN
15 4G43-5K978-AB
Bolt, M12, Eccentric
IN STOCK 		$43.00 2
IN
