Front Suspension

Aston Martin V12 Vantage (upto 2016)

Find Your Part

Aston Martin V12 Vantage (upto 2016) - Front Suspension

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
8D33-3K186-AC Knuckle Assy, Front Wheel, RH $1,863.08 To Order
8D33-3K185-AC Knuckle Assy, Front Wheel, LH $372.48 IN STOCK
Photo Part No Description Price (each) Stock
4G43-2B663-AD HUB & BEARING ASSEMBLY, FRONT $557.27 IN STOCK
Photo Part No Description Price (each) Stock
4G43-0783-AA-PK Hub Bolt M10 x 55 x 1.25 (Pack of 5) $25.87 IN STOCK
Photo Part No Description Price (each) Stock
6G33-3084-AB ARM BUSH/JOINT FRONT SUSPENSION UPPER RH $668.92 IN STOCK
6G33-3091-AB ARM BUSH/JOINT FRONT SUSPENSION UPPER LH $668.92 IN STOCK
Photo Part No Description Price (each) Stock
703565 NUT-M12 HEX FLANGE $1.20 IN STOCK
Photo Part No Description Price (each) Stock
CG43-08024-AA BOLT M12 X 90 HEXAGON HEAD FLANGED $6.33 IN STOCK
Photo Part No Description Price (each) Stock
8G33-3A052-AC FRONT SUSPENSION LOWER ARM RH $867.57 IN STOCK
8G33-3A053-AB FRONT SUSPENSION LOWER ARM LH $800.34 To Order
Photo Part No Description Price (each) Stock
4G43-3B236-BB Bolt M12 Eccentric Front $65.98 To Order
Photo Part No Description Price (each) Stock
4G43-3B237-BB Washer, M12, Eccentric $11.31 IN STOCK
Photo Part No Description Price (each) Stock
703565 NUT-M12 HEX FLANGE $1.20 IN STOCK
Photo Part No Description Price (each) Stock
4G43-3B236-CB Bolt, M14, eccentric $27.69 To Order
Photo Part No Description Price (each) Stock
4G43-3B237-CA Washer, M14 eccentric $10.32 IN STOCK
Photo Part No Description Price (each) Stock
704596 Nut, M14, Hex Flange Head $1.32 IN STOCK
Photo Part No Description Price (each) Stock
706933 Nut And Washer Set M12 $16.60 IN STOCK
Photo Part No Description Price (each) Stock
4G43-13D026-AA Screw, retaining disc shield $0.62 IN STOCK

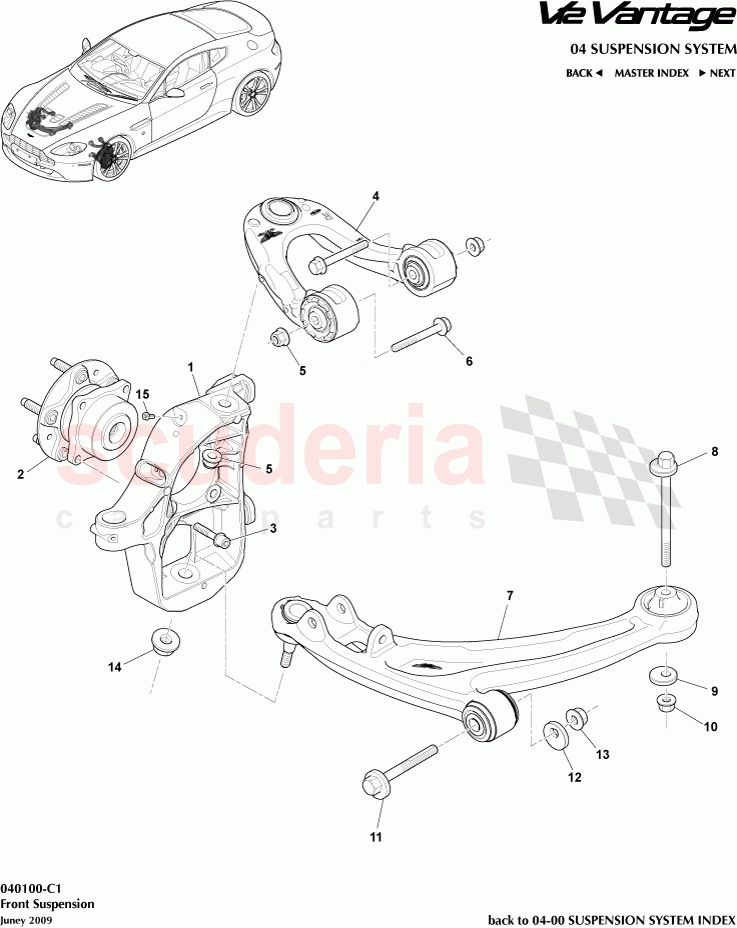

Front Suspension of Aston Martin Aston Martin V12 Vantage (upto 2016) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 8D33-3K186-AC
Knuckle Assy, Front Wheel, RH 		$1,863.08 1
TO
1 8D33-3K185-AC
Knuckle Assy, Front Wheel, LH
IN STOCK 		$372.48 1
IN
2 4G43-2B663-AD
HUB & BEARING ASSEMBLY, FRONT
IN STOCK 		$557.27 2
IN
3 4G43-0783-AA-PK
Hub Bolt M10 x 55 x 1.25 (Pack of 5)
IN STOCK 		$25.87 8
IN
4 6G33-3084-AB
ARM BUSH/JOINT FRONT SUSPENSION UPPER RH
IN STOCK 		$668.92 1
IN
4 6G33-3091-AB
ARM BUSH/JOINT FRONT SUSPENSION UPPER LH
IN STOCK 		$668.92 1
IN

703565

NUT-M12 HEX FLANGE

from $1.20

6 CG43-08024-AA
BOLT M12 X 90 HEXAGON HEAD FLANGED
IN STOCK 		$6.33 4
IN
7 8G33-3A052-AC
FRONT SUSPENSION LOWER ARM RH
IN STOCK 		$867.57 1
IN
7 8G33-3A053-AB
FRONT SUSPENSION LOWER ARM LH 		$800.34 1
TO
8 4G43-3B236-BB
Bolt M12 Eccentric Front 		$65.98 2
TO
9 4G43-3B237-BB
Washer, M12, Eccentric
IN STOCK 		$11.31 2
IN
11 4G43-3B236-CB
Bolt, M14, eccentric 		$27.69 2
TO
12 4G43-3B237-CA
Washer, M14 eccentric
IN STOCK 		$10.32 2
IN
13 704596
Nut, M14, Hex Flange Head
IN STOCK 		$1.32 2
IN
14 706933
Nut And Washer Set M12
IN STOCK 		$16.60 2
IN
15 4G43-13D026-AA
Screw, retaining disc shield
IN STOCK 		$0.62 2
IN
