Aston Martin V12 Zagato - Coolant Hoses

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
AD238333AB Hose, Radiator Inlet $821.46 To Order
Photo Part No Description Price (each) Stock
AD238555AC Bypass Tube Assembly $730.70 To Order
Photo Part No Description Price (each) Stock
AD238555EA HOSE ASSY - BYPASS TUBE TO RADIATOR MODULE $403.16 To Order
Photo Part No Description Price (each) Stock
702903 Heavy Duty Spring Band Clamp 55 x 15 $4.58 IN STOCK
Photo Part No Description Price (each) Stock
AD238555FA HOSE ASSY - BYPASS TUBE TO THERMOSTAT $1,185.10 To Order
Photo Part No Description Price (each) Stock
697660 Clip Hose - Spring Loaded-60 DIA $19.67 To Order
Photo Part No Description Price (each) Stock
AD238555BB Hose Bypass Tube to Water Pump $889.21 IN STOCK
Photo Part No Description Price (each) Stock
AD238C350AB Hose, Coolant Return $754.96 To Order
Photo Part No Description Price (each) Stock
AD238C350BA Hose, Make Up Tube to Bypass Tube Enquire To Order
Photo Part No Description Price (each) Stock
4G438C350FA MAKE UP TUBE ASSY $61.56 To Order
Photo Part No Description Price (each) Stock
NSS  Seat Belt Loops Frt/ Rear and Left/Right Enquire To Order
Photo Part No Description Price (each) Stock
702902 HEAVY DUTY SPRING BAND CLAMP 27 x 15mm $2.23 To Order
Photo Part No Description Price (each) Stock
702839PK SCREW & WASHER M6 X 10 HEX HEAD (PACK OF 10) $5.57 IN STOCK
Photo Part No Description Price (each) Stock
703749 Nut, M6, Hex Flange Head $0.68 IN STOCK
Photo Part No Description Price (each) Stock
4G438003FB Tube Assy, Engine Degas Enquire To Order
Photo Part No Description Price (each) Stock
4G438003EB Pipe, Cross Over Bleed $81.60 To Order
Photo Part No Description Price (each) Stock
4G438003CA Hose, Thermo Housing, Cross Over Bleed $68.45 To Order
Photo Part No Description Price (each) Stock
702904 Spring Clamp, Hose, 17 x 15 $1.94 IN STOCK
Photo Part No Description Price (each) Stock
702295 Nut, M5, Hex Flange Head $0.10 IN STOCK
Photo Part No Description Price (each) Stock
4G438063AE Hose, Engine to Supply Tank $87.57 IN STOCK
Photo Part No Description Price (each) Stock
701172 Clip, 16 x 2.8 - 3.3 $0.42 IN STOCK
Photo Part No Description Price (each) Stock
6G338B081AB HOSE - RADIATOR SUPPLY TANK OVERFLOW $79.69 To Order
Photo Part No Description Price (each) Stock
4G4319B518BD RADIATOR EXPANSION TANK $487.76 To Order
Photo Part No Description Price (each) Stock
4G438101BB PRESSURE CAP 150KPA $133.48 To Order
Photo Part No Description Price (each) Stock
1R123710166 Switch, Coolant Level $77.63 To Order
Photo Part No Description Price (each) Stock
HY53E804349AA M6 X 14 SCREW HEX HD $0.71 IN STOCK
Photo Part No Description Price (each) Stock
703612 Nut & Washer, M6, HVAC to XCB $0.47 IN STOCK
Photo Part No Description Price (each) Stock
6G33TBD2BA Reservoir, Coolant Expansion $60.32 To Order
Photo Part No Description Price (each) Stock
701667 Bolt and Washer, M6 x 25 $0.35 To Order
Photo Part No Description Price (each) Stock
6G338N029AB HOSE - RADIAOTR OVERFLOW EXT $56.81 To Order
Photo Part No Description Price (each) Stock
ED238584AA HOS ASY THERMO UPR $637.99 To Order
Photo Part No Description Price (each) Stock
AD238584CB Tube, Heater Feed Enquire To Order
Photo Part No Description Price (each) Stock
ED238A209AA HOS ASY THERMO UPR $372.19 To Order
Photo Part No Description Price (each) Stock
702901 HEAVY DUTY SPRING BAND CLAMP 23 x 15 $2.11 To Order
Photo Part No Description Price (each) Stock
4G4318D334BC HEATER INLET HOSE ASSY - RHD $114.98 To Order
Photo Part No Description Price (each) Stock
4G4355BA Tie Wrap Enquire To Order
Photo Part No Description Price (each) Stock
701335 Clip, Hose Spring, 20 x 15 $1.13 To Order
Photo Part No Description Price (each) Stock
AD2318674AB Tube Assy, Heater Outlet $438.11 To Order
Photo Part No Description Price (each) Stock
AD2318674AB Tube Assy, Heater Outlet $438.11 To Order
Photo Part No Description Price (each) Stock
AD2318674BA Hose, Heater Return $52.30 To Order
Photo Part No Description Price (each) Stock
4G4318D359BC HEATER OUTLET HOSE ASSY - RHD $45.08 To Order
Photo Part No Description Price (each) Stock
701570 Clip, Swivel 20-24.5mm $0.79 To Order
Photo Part No Description Price (each) Stock
AD238C363AB Hose Assy, Radiator Degas $1,284.02 To Order
Photo Part No Description Price (each) Stock
AD238C363BA Hose, Radiator Degas Enquire To Order
Photo Part No Description Price (each) Stock
4G438C363DA HOSE - RADIATOR DEGAS ASSY $32.70 To Order
Photo Part No Description Price (each) Stock
AD238C363CB Tube, Radiator Degas Enquire To Order
Photo Part No Description Price (each) Stock
4G434867BC Bottom Cover, Engine Harness $19.40 IN STOCK
Photo Part No Description Price (each) Stock
4G436793BB Top Cover, Engine Harness $14.28 To Order
Photo Part No Description Price (each) Stock
703731 Bolt, M8 x 35, Hex Flange Head $0.69 To Order
View All

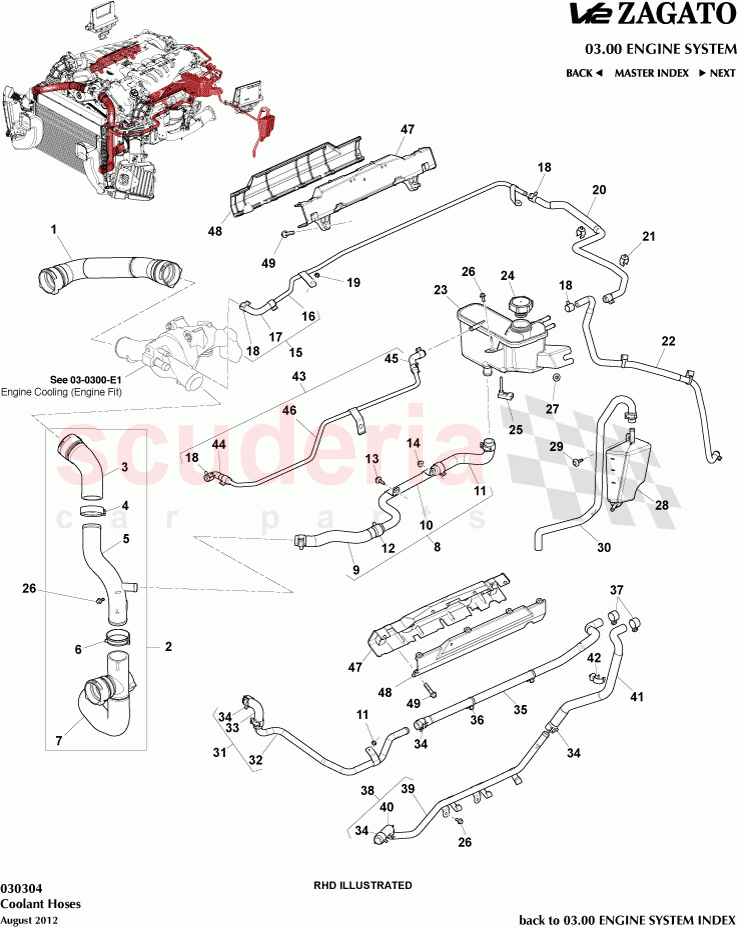

Coolant Hoses of Aston Martin Aston Martin V12 Zagato Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- 4G4318D334AC
HEATER INLET HOSE ASSY - LHD
Includes Items 34 and 36 		$304.81 1
- 4G4318D359AC
HEATER OUTLET HOSE ASSY - LHD
LHD, Includes Item 34 		$206.86 1
1 AD238333AB
Hose, Radiator Inlet 		$821.46 1
2 AD238555AC
Bypass Tube Assembly 		$730.70 1
3 AD238555EA
HOSE ASSY - BYPASS TUBE TO RADIATOR MODULE 		$403.16 1
4 702903
Heavy Duty Spring Band Clamp 55 x 15
IN STOCK 		$4.58 1
5 AD238555FA
HOSE ASSY - BYPASS TUBE TO THERMOSTAT 		$1,185.10 1
6 697660
Clip Hose - Spring Loaded-60 DIA 		$19.67 1
7 AD238555BB
Hose Bypass Tube to Water Pump
IN STOCK 		$889.21 1
8 AD238C350AB
Hose, Coolant Return 		$754.96 1
9 AD238C350BA
Hose, Make Up Tube to Bypass Tube 		- 1 Enquire
10 4G438C350FA
MAKE UP TUBE ASSY 		$61.56 1
11 NSS
 Seat Belt Loops Frt/ Rear and Left/Right
Use Item 8 		- 1 Enquire
12 702902
HEAVY DUTY SPRING BAND CLAMP 27 x 15mm 		$2.23 4
13 702839PK
SCREW & WASHER M6 X 10 HEX HEAD (PACK OF 10)
Pack of 10
IN STOCK 		$5.57 1
14 703749
Nut, M6, Hex Flange Head
IN STOCK 		$0.68 1
15 4G438003FB
Tube Assy, Engine Degas 		- 1 Enquire
16 4G438003EB
Pipe, Cross Over Bleed 		$81.60 1
17 4G438003CA
Hose, Thermo Housing, Cross Over Bleed 		$68.45 1
18 702904
Spring Clamp, Hose, 17 x 15
IN STOCK 		$1.94 10
19 702295
Nut, M5, Hex Flange Head
IN STOCK 		$0.10 2
20 4G438063AE
Hose, Engine to Supply Tank
Includes Item 18
IN STOCK 		$87.57 1
21 701172
Clip, 16 x 2.8 - 3.3
IN STOCK 		$0.42 2
22 6G338B081AB
HOSE - RADIATOR SUPPLY TANK OVERFLOW
Includes Item 18 		$79.69 1
23 4G4319B518BD
RADIATOR EXPANSION TANK
Includes Items 24 and 25 		$487.76 1
24 4G438101BB
PRESSURE CAP 150KPA
Includes Seal 		$133.48 1
25 1R123710166
Switch, Coolant Level 		$77.63 1
26 HY53E804349AA
M6 X 14 SCREW HEX HD
IN STOCK 		$0.71 5
27 703612
Nut & Washer, M6, HVAC to XCB
IN STOCK 		$0.47 1
28 6G33TBD2BA
Reservoir, Coolant Expansion 		$60.32 1
29 701667
Bolt and Washer, M6 x 25 		$0.35 2
30 6G338N029AB
HOSE - RADIAOTR OVERFLOW EXT
Includes Clip 		$56.81 1
31 ED238584AA
HOS ASY THERMO UPR 		$637.99 1
32 AD238584CB
Tube, Heater Feed 		- 1 Enquire
33 ED238A209AA
HOS ASY THERMO UPR 		$372.19 1
34 702901
HEAVY DUTY SPRING BAND CLAMP 23 x 15 		$2.11 6
35 4G4318D334BC
HEATER INLET HOSE ASSY - RHD
Includes Items 34 and 36 		$114.98 1
36 4G4355BA
Tie Wrap 		- 2 Enquire
37 701335
Clip, Hose Spring, 20 x 15 		$1.13 2
38 AD2318674AB
Tube Assy, Heater Outlet 		$438.11 1
39 AD2318674AB
Tube Assy, Heater Outlet 		$438.11 1
40 AD2318674BA
Hose, Heater Return 		$52.30 1
41 4G4318D359BC
HEATER OUTLET HOSE ASSY - RHD
RHD, Includes Item 34 		$45.08 1
42 701570
Clip, Swivel 20-24.5mm 		$0.79 1
43 AD238C363AB
Hose Assy, Radiator Degas 		$1,284.02 1
44 AD238C363BA
Hose, Radiator Degas 		- 1 Enquire
45 4G438C363DA
HOSE - RADIATOR DEGAS ASSY 		$32.70 1
46 AD238C363CB
Tube, Radiator Degas 		- 1 Enquire
47 4G434867BC
Bottom Cover, Engine Harness
IN STOCK 		$19.40 2
48 4G436793BB
Top Cover, Engine Harness 		$14.28 2
49 703731
Bolt, M8 x 35, Hex Flange Head 		$0.69 4
