Aston Martin V12 Zagato - Engine Lubrication

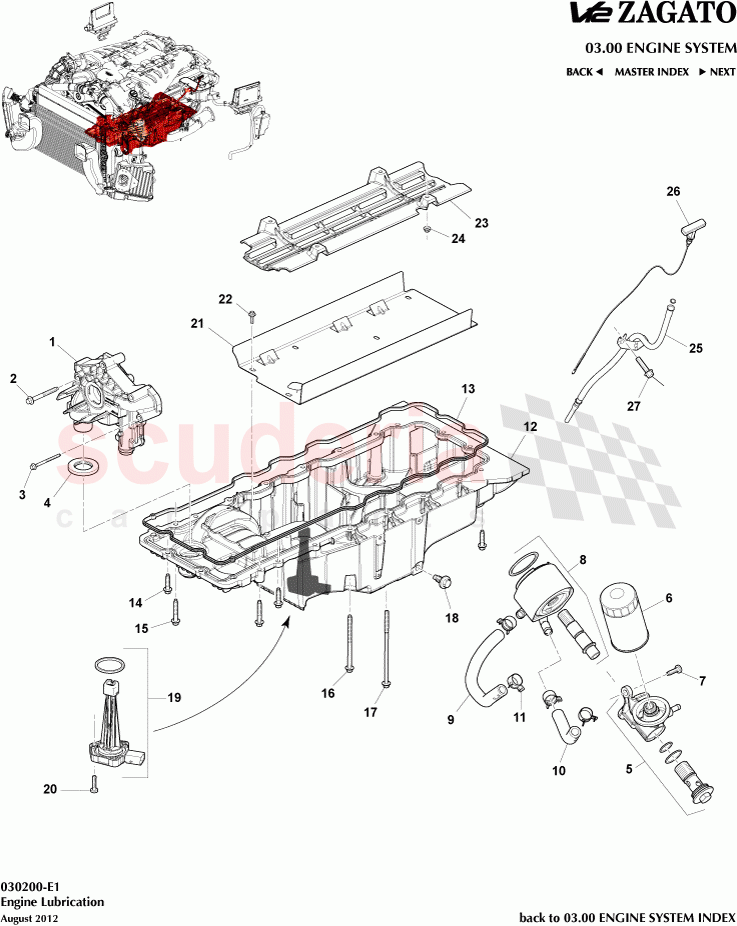

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	8G436621AC	Pump Assy Oil	$2,176.89	To Order

Photo	Part No	Description	Price (each)	Stock
	702552	BOLT M8 X 70 HF PIL 8	$1.15	To Order

Photo	Part No	Description	Price (each)	Stock
	703701	Bolt, M6 x 70, Hex Flange Hd	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G430410196	Seal, Oil Pump Pickup Tube to Pan	$102.68	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	AD236C739BB	OIL FILTER & ADAPTOR ASSEMBLY-WITH DRAIN	$1,898.42	To Order

Photo	Part No	Description	Price (each)	Stock
	AD236714AB	Oil Filter	$46.28	To Order

Photo	Part No	Description	Price (each)	Stock
	704568	Bolt, M8 x 25, Pan Head	$4.19	To Order

Photo	Part No	Description	Price (each)	Stock
	AD236A642AA	COOLER ASSEMBLY- ENGINE OIL	$801.94	To Order

Photo	Part No	Description	Price (each)	Stock
	AD238B451AA	Hose Assy, Engine Oil Cooler, Outlet	$159.26	To Order

Photo	Part No	Description	Price (each)	Stock
	AD236N867AA	TUBE AND HOSE ASSEMBLY ENGINE OIL COOLER	$138.48	To Order

Photo	Part No	Description	Price (each)	Stock
	3285381	CLAMP	$6.69	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	AD236675BD	OIL PAN ASSEMBLY	$12,735.45	To Order

Photo	Part No	Description	Price (each)	Stock
	485092	Engine Sump Gasket	$119.52	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	702526	Bolt M8 x 30 Hex Flange Head	$0.57	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	W500312S437	Bolt, M8 x 45, Hex Flg Hd	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	704498	Bolt, M8 x 120, Hex Flg Hd	$80.33	To Order

Photo	Part No	Description	Price (each)	Stock
	AD23806156AA	BOLT - M8-1.25 x170 HEX FLG	$83.64	To Order

Photo	Part No	Description	Price (each)	Stock
	4G430410205	Plug, Oil Pan Drain	$22.32	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	4G430410972	Sensor Engine Low Oil Level	$99.12	To Order

Photo	Part No	Description	Price (each)	Stock
	702847	SCREW-M6x25 PAN INT LOB 8	$1.38	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	AD236686AA	Sump Baffle Plate	$94.72	To Order

Photo	Part No	Description	Price (each)	Stock
	702601	BOLT-M6-1.0 X 16 HEX FLG PT	$0.27	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4E6B660BA	WINDAGE TRAY	$277.90	To Order

Photo	Part No	Description	Price (each)	Stock
	703169	NUT - M6 HEX FLANGE CHROME FREE	$0.56	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	CD336754AA	Tube Assy, Oil Level Indicator	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8D336750AB	OIL LEVEL INDICATOR ASSEMBLY	$46.90	To Order

Photo	Part No	Description	Price (each)	Stock
	701745	Bolt, M8 x 30, Hex Flg Hd	$0.51	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	8G436621AC	Pump Assy Oil	8G436621AC Pump Assy Oil	$2,176.89	1
2	702552	BOLT M8 X 70 HF PIL 8	702552 BOLT M8 X 70 HF PIL 8	$1.15	3
3	703701	Bolt, M6 x 70, Hex Flange Hd	703701 Bolt, M6 x 70, Hex Flange Hd	-	1	Enquire
4	4G430410196	Seal, Oil Pump Pickup Tube to Pan IN STOCK	4G430410196 Seal, Oil Pump Pickup Tube to Pan IN STOCK	$102.68	1
5	AD236C739BB	OIL FILTER & ADAPTOR ASSEMBLY-WITH DRAIN	AD236C739BB OIL FILTER & ADAPTOR ASSEMBLY-WITH DRAIN Includes Item 6	$1,898.42	1
6	AD236714AB	Oil Filter	AD236714AB Oil Filter	$46.28	1
7	704568	Bolt, M8 x 25, Pan Head	704568 Bolt, M8 x 25, Pan Head	$4.19	1
8	AD236A642AA	COOLER ASSEMBLY- ENGINE OIL	AD236A642AA COOLER ASSEMBLY- ENGINE OIL	$801.94	1
9	AD238B451AA	Hose Assy, Engine Oil Cooler, Outlet	AD238B451AA Hose Assy, Engine Oil Cooler, Outlet Includes Item 11	$159.26	1
10	AD236N867AA	TUBE AND HOSE ASSEMBLY ENGINE OIL COOLER	AD236N867AA TUBE AND HOSE ASSEMBLY ENGINE OIL COOLER Includes Item 11	$138.48	1
11	3285381	CLAMP IN STOCK	3285381 CLAMP IN STOCK	$6.69	4
12	AD236675BD	OIL PAN ASSEMBLY	AD236675BD OIL PAN ASSEMBLY	$12,735.45	1
13	485092	Engine Sump Gasket IN STOCK	485092 Engine Sump Gasket IN STOCK	$119.52	1
14	702526	Bolt M8 x 30 Hex Flange Head IN STOCK	702526 Bolt M8 x 30 Hex Flange Head IN STOCK	$0.57	8
15	W500312S437	Bolt, M8 x 45, Hex Flg Hd	W500312S437 Bolt, M8 x 45, Hex Flg Hd	-	2	Enquire
16	704498	Bolt, M8 x 120, Hex Flg Hd	704498 Bolt, M8 x 120, Hex Flg Hd	$80.33	7
17	AD23806156AA	BOLT - M8-1.25 x170 HEX FLG	AD23806156AA BOLT - M8-1.25 x170 HEX FLG	$83.64	3
18	4G430410205	Plug, Oil Pan Drain IN STOCK	4G430410205 Plug, Oil Pan Drain IN STOCK	$22.32	1
19	4G430410972	Sensor Engine Low Oil Level	4G430410972 Sensor Engine Low Oil Level	$99.12	1
20	702847	SCREW-M6x25 PAN INT LOB 8 IN STOCK	702847 SCREW-M6x25 PAN INT LOB 8 IN STOCK	$1.38	3
21	AD236686AA	Sump Baffle Plate	AD236686AA Sump Baffle Plate	$94.72	1
22	702601	BOLT-M6-1.0 X 16 HEX FLG PT	702601 BOLT-M6-1.0 X 16 HEX FLG PT	$0.27	6
23	4G4E6B660BA	WINDAGE TRAY	4G4E6B660BA WINDAGE TRAY	$277.90	1
24	703169	NUT - M6 HEX FLANGE CHROME FREE IN STOCK	703169 NUT - M6 HEX FLANGE CHROME FREE IN STOCK	$0.56	4
25	CD336754AA	Tube Assy, Oil Level Indicator	CD336754AA Tube Assy, Oil Level Indicator	-	1	Enquire
26	8D336750AB	OIL LEVEL INDICATOR ASSEMBLY	8D336750AB OIL LEVEL INDICATOR ASSEMBLY	$46.90	1
27	701745	Bolt, M8 x 30, Hex Flg Hd	701745 Bolt, M8 x 30, Hex Flg Hd	$0.51	1
