Name: Front Grille Assembly
Rating: 4.8 (1 reviews)

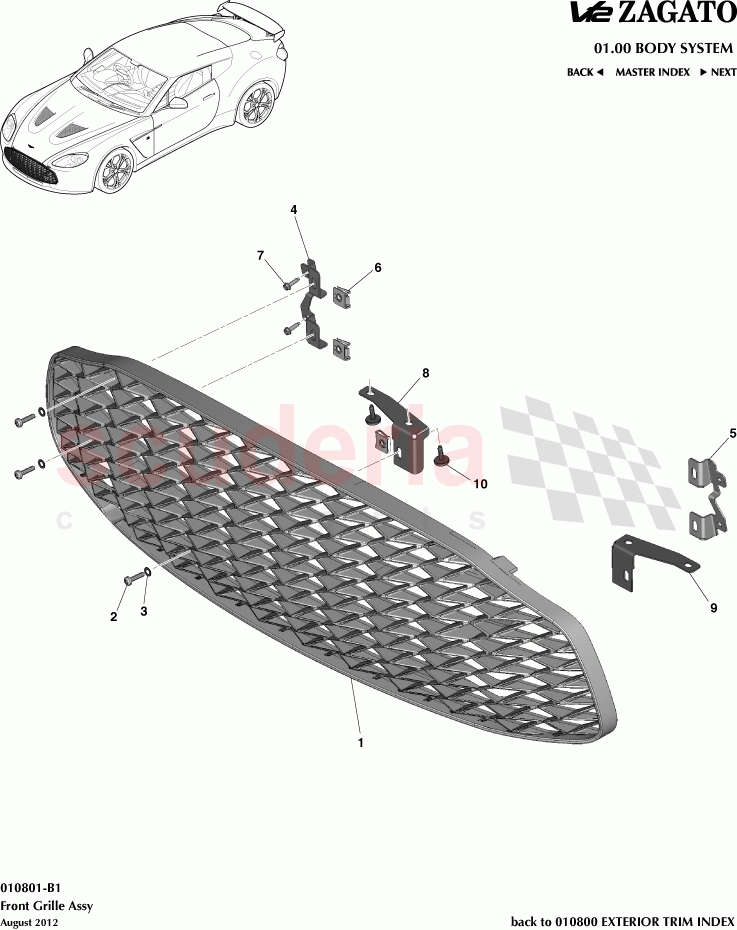

View the exploded parts diagram to find the part you are looking for

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

TO ORDER

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	CY83-8A100-AA	Front Grille	$3,791.07	To Order

Photo	Part No	Description	Price (each)	Stock
	702847	SCREW-M6x25 PAN INT LOB 8	$1.38	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	699733	WASHER M6 ST STL	$0.07	To Order

Photo	Part No	Description	Price (each)	Stock
	CY83-8B095-AB	Bracket, Radiator Grille Mounting, RH	$96.74	To Order

Photo	Part No	Description	Price (each)	Stock
	CY83-8B096-AB	Bracket, Radiator Grille Mounting, LH	$96.74	To Order

Photo	Part No	Description	Price (each)	Stock
	7G43-10609E-AA-PK	Clip Spring M6 U Type 1.5-4.0 Black (Pack of 10)	$9.74	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	6G33-105101-BA	Bolt, M5 x 16, Hex Flange Hd	$0.42	To Order

Photo	Part No	Description	Price (each)	Stock
	CY83-8A022-AB	Bracket, Grille Lower, RH	$65.03	To Order

Photo	Part No	Description	Price (each)	Stock
	CY83-8A023-AB	Bracket, Grille Lower, LH	$65.03	To Order

Photo	Part No	Description	Price (each)	Stock
	6G33-FA0115-AB-PK	Screw and Washer M6 x 20 Torx Head (Pack of 20)	$20.53	To Order

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Key
1	CY83-8A100-AA	Front Grille	CY83-8A100-AA Front Grille	$3,791.07	1	TO
2	702847	SCREW-M6x25 PAN INT LOB 8 IN STOCK	702847 SCREW-M6x25 PAN INT LOB 8 IN STOCK	$1.38	6	IN
3	699733	WASHER M6 ST STL	699733 WASHER M6 ST STL	$0.07	6	TO
4	CY83-8B095-AB	Bracket, Radiator Grille Mounting, RH	CY83-8B095-AB Bracket, Radiator Grille Mounting, RH	$96.74	1	TO
5	CY83-8B096-AB	Bracket, Radiator Grille Mounting, LH	CY83-8B096-AB Bracket, Radiator Grille Mounting, LH	$96.74	1	TO
6	7G43-10609E-AA-PK	Clip Spring M6 U Type 1.5-4.0 Black (Pack of 10) IN STOCK	7G43-10609E-AA-PK Clip Spring M6 U Type 1.5-4.0 Black (Pack of 10) Pack of 10 IN STOCK	$9.74	6	IN
7	6G33-105101-BA	Bolt, M5 x 16, Hex Flange Hd	6G33-105101-BA Bolt, M5 x 16, Hex Flange Hd	$0.42	4	TO
8	CY83-8A022-AB	Bracket, Grille Lower, RH	CY83-8A022-AB Bracket, Grille Lower, RH	$65.03	1	TO
9	CY83-8A023-AB	Bracket, Grille Lower, LH	CY83-8A023-AB Bracket, Grille Lower, LH	$65.03	1	TO
10	6G33-FA0115-AB-PK	Screw and Washer M6 x 20 Torx Head (Pack of 20)	6G33-FA0115-AB-PK Screw and Washer M6 x 20 Torx Head (Pack of 20) Pack of 20	$20.53	4	TO
