Underbody

Aston Martin V12 Zagato

Find Your Part

Aston Martin V12 Zagato - Underbody

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
6G33-16-10440S ASY FLR RH-STAMPED $1,264.47 To Order
Photo Part No Description Price (each) Stock
6G33-16-10441 ASSEMBLY FLOOR LH $835.75 To Order
Photo Part No Description Price (each) Stock
AG33-122716-AA Reinforcement, Transmission Tunnel Enquire To Order
Photo Part No Description Price (each) Stock
GOAG33-10120-AA Member, Floor Side, Front $137.08 To Order
Photo Part No Description Price (each) Stock
DG33-C10116-AA Member, Floor Side Inner, RH $554.40 To Order
Photo Part No Description Price (each) Stock
DG33-C10117-AB Member, Floor Side Inner, LH $554.42 To Order
Photo Part No Description Price (each) Stock
GOAG33100A94AA Member, Lower Reinforcement, Front Side, RH $63.41 To Order
Photo Part No Description Price (each) Stock
GOAG33-100A95-AA Member, Lower Reinforcement, Front Side, LH $63.41 To Order
Photo Part No Description Price (each) Stock
AG33-F001K32-AA Brace, Tunnel Upper Outer Reinforcement, RH $92.62 To Order
Photo Part No Description Price (each) Stock
AG33-F001K33-AA Brace, Tunnel Upper Outer Reinforcement, LH $94.41 To Order
Photo Part No Description Price (each) Stock
AG33-F001K30-AA Brace, Tunnel Upper Outer, RH $133.62 To Order
Photo Part No Description Price (each) Stock
AG33-F001K31-AA Brace, Tunnel Upper Outer, LH $133.62 To Order
Photo Part No Description Price (each) Stock
8G43-434K10-AA NUTPLATE FRONT END MOUNTING OUTER RH M12 $93.23 To Order
Photo Part No Description Price (each) Stock
8G43-434K11-AA NUTPLATE FRONT END MOUNTING OUTER LH M12 $22.61 To Order
Photo Part No Description Price (each) Stock
8G43-390725-AA NUT PLATE FRONT END MOUNTING INR M12 $34.21 To Order
Photo Part No Description Price (each) Stock
GOAG33-F001K28-AA Bracket, tunnel upper inner $88.50 To Order
Photo Part No Description Price (each) Stock
DG43-10772-BB Tunnel Extrusion, RH Enquire To Order
Photo Part No Description Price (each) Stock
DG43-10773-BC Tunnel Extrusion, LH Enquire To Order
Photo Part No Description Price (each) Stock
BG33113C18AA Panel, tunnel, top front Enquire To Order
Photo Part No Description Price (each) Stock
BG3311160AA Panel, tunnel, top Enquire To Order
Photo Part No Description Price (each) Stock
BG33120780AA Panel, transmission tunnel, RH $339.12 To Order
Photo Part No Description Price (each) Stock
BG33120781AA Panel, transmission tunnel, LH $339.12 To Order
Photo Part No Description Price (each) Stock
DG43-10276-BA Member, Front Side, RH $247.61 To Order
Photo Part No Description Price (each) Stock
DG43-10277-BA Member, Front Side, LH $247.61 To Order
Photo Part No Description Price (each) Stock
GOAG33-F02599-BA Cross Member, Body Front Enquire To Order
Photo Part No Description Price (each) Stock
AG3310094AA Member, Reinforcement Front Side, RH Enquire To Order
Photo Part No Description Price (each) Stock
AG33-10095-AA Member, Reinforcement Front Side, LH $69.36 To Order
Photo Part No Description Price (each) Stock
6G33-68676-AC Rivet Structural 6.5 x 14, Blind $1.18 To Order

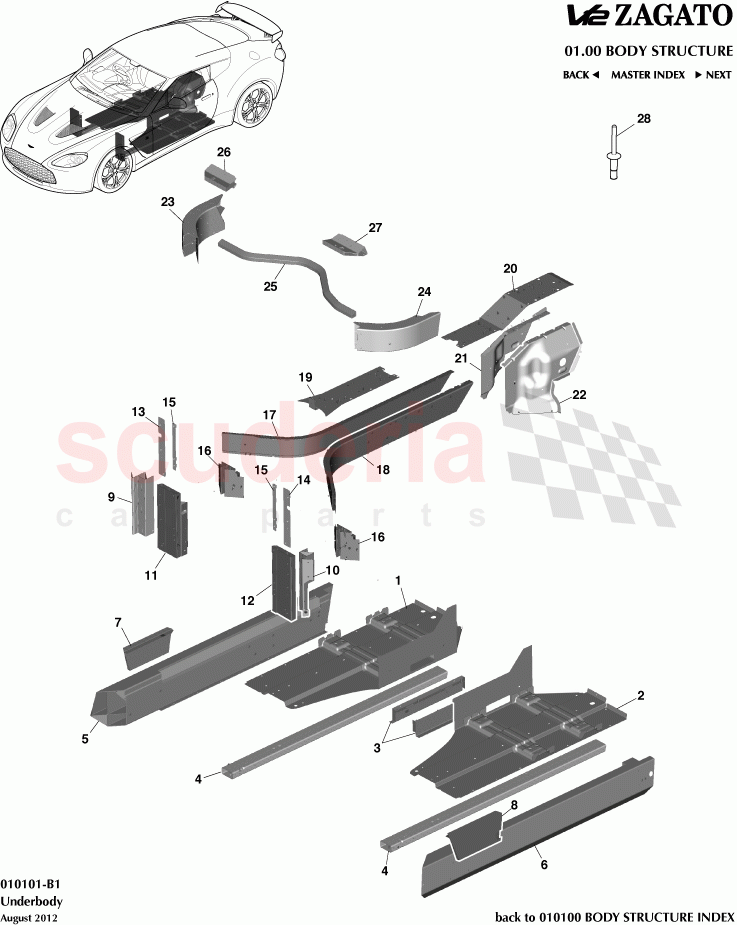

Underbody of Aston Martin Aston Martin V12 Zagato Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 6G33-16-10440S
ASY FLR RH-STAMPED
Vin Stamp Required, Structural. Cat A Only 		$1,264.47 1
TO
2 6G33-16-10441
ASSEMBLY FLOOR LH
Structural. Cat A Only 		$835.75 1
TO
3 AG33-122716-AA
Reinforcement, Transmission Tunnel
Structural. Cat A Only 		- 2
PE
 Enquire
4 GOAG33-10120-AA
Member, Floor Side, Front
Structural. Cat A Only 		$137.08 1
TO
5 DG33-C10116-AA
Member, Floor Side Inner, RH
Structural. Cat A Only 		$554.40 1
TO
6 DG33-C10117-AB
Member, Floor Side Inner, LH
Structural. Cat A Only 		$554.42 1
TO
7 GOAG33100A94AA
Member, Lower Reinforcement, Front Side, RH
Structural. Cat A Only 		$63.41 1
TO
8 GOAG33-100A95-AA
Member, Lower Reinforcement, Front Side, LH
Structural. Cat A Only 		$63.41 1
TO
9 AG33-F001K32-AA
Brace, Tunnel Upper Outer Reinforcement, RH
Structural. Cat A Only 		$92.62 1
TO
10 AG33-F001K33-AA
Brace, Tunnel Upper Outer Reinforcement, LH
Structural. Cat A Only 		$94.41 1
TO
11 AG33-F001K30-AA
Brace, Tunnel Upper Outer, RH
Structural. Cat A Only 		$133.62 1
TO
12 AG33-F001K31-AA
Brace, Tunnel Upper Outer, LH
Structural. Cat A Only 		$133.62 1
TO
13 8G43-434K10-AA
NUTPLATE FRONT END MOUNTING OUTER RH M12 		$93.23 1
TO
14 8G43-434K11-AA
NUTPLATE FRONT END MOUNTING OUTER LH M12 		$22.61 1
TO
15 8G43-390725-AA
NUT PLATE FRONT END MOUNTING INR M12 		$34.21 2
TO
16 GOAG33-F001K28-AA
Bracket, tunnel upper inner
Structural. Cat A Only 		$88.50 2
TO
17 DG43-10772-BB
Tunnel Extrusion, RH
Structural. Cat A Only 		- 1
PE
 Enquire
18 DG43-10773-BC
Tunnel Extrusion, LH
Structural. Cat A Only 		- 1
PE
 Enquire
19 BG33113C18AA
Panel, tunnel, top front
Structural. Cat A Only 		- 1
PE
 Enquire
20 BG3311160AA
Panel, tunnel, top
Structural. Cat A Only 		- 1
PE
 Enquire
21 BG33120780AA
Panel, transmission tunnel, RH
Structural. Cat A Only 		$339.12 1
TO
22 BG33120781AA
Panel, transmission tunnel, LH
Structural. Cat A Only 		$339.12 1
TO
23 DG43-10276-BA
Member, Front Side, RH
Structural. Cat A Only 		$247.61 1
TO
24 DG43-10277-BA
Member, Front Side, LH
Structural. Cat A Only 		$247.61 1
TO
25 GOAG33-F02599-BA
Cross Member, Body Front
Structural. Cat A Only 		- 1
PE
 Enquire
26 AG3310094AA
Member, Reinforcement Front Side, RH
Structural. Cat A Only 		- 1
PE
 Enquire
27 AG33-10095-AA
Member, Reinforcement Front Side, LH
Structural. Cat A Only 		$69.36 1
TO
28 6G33-68676-AC
Rivet Structural 6.5 x 14, Blind 		$1.18 A/R
TO
