Aston Martin Rapide - Fuse Panel, Fuses, Circuit Breakers

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
BG3314A173AB Fuse Box Assembly, Engine Bay $481.55 To Order
AD4314A173AB ENGINE BAY FUSEBOX $529.18 To Order
Photo Part No Description Price (each) Stock
702839PK SCREW & WASHER M6 X 10 HEX HEAD (PACK OF 10) $5.57 IN STOCK
Photo Part No Description Price (each) Stock
4G4314A173BK ENGINE BAY FUSEBOX BRACKET RHD $65.54 To Order
4G4314A173CH ENG BAY F/BOX BRKT $170.32 To Order
Photo Part No Description Price (each) Stock
703151 Screw M6x16 Washer Hex HD Chrome Free $0.51 IN STOCK
Photo Part No Description Price (each) Stock
703164 M6 LOCKNUT FLANGE NY LON CHROM FREE $0.47 To Order
Photo Part No Description Price (each) Stock
8G4314C245AA Central Electronic Module - CEM $931.95 To Order
Photo Part No Description Price (each) Stock
4G4313B525BG Bracket, Cabin Fuse Box CEM $44.44 To Order
Photo Part No Description Price (each) Stock
702082 Bolt, Self Locking, M5 x 16 $1.23 IN STOCK
Photo Part No Description Price (each) Stock
703164 M6 LOCKNUT FLANGE NY LON CHROM FREE $0.47 To Order
Photo Part No Description Price (each) Stock
700606 Screw, M6 x 12, Hex Flange Head $0.20 IN STOCK
Photo Part No Description Price (each) Stock
4G43L41041AA Edge Strip, Black 2 x 40 $10.74 IN STOCK
8D3314N072AE Bracket, Fuse Box, LHD $42.70 To Order
8D3314N072BD Bracket, Fuse Box, RHD $49.70 To Order
Photo Part No Description Price (each) Stock
700963 SREW M4 x 8mm LONG PAN HEAD POZIDRIVE BLACK $0.47 To Order
Photo Part No Description Price (each) Stock
AD4314A073AC REAR FUSEBOX Enquire To Order
Photo Part No Description Price (each) Stock
AD4314A074AA UNDERSEAT FUSEBOX $469.07 To Order
Photo Part No Description Price (each) Stock
AD4314A301BB UNDERSEAT FUSEBOX BRACKET MOUNTING $31.91 To Order
Photo Part No Description Price (each) Stock
AD4314A301AC BRACKET REAR FUSEBOX MOUNTING $127.52 To Order
Photo Part No Description Price (each) Stock
200020135PK Screw, M6 x 16, Flange Hex Head $291.20 To Order
Photo Part No Description Price (each) Stock
701448 Spring Nut, U Type, 4.2 x 2.1 $1.18 IN STOCK
Photo Part No Description Price (each) Stock
1R123710526 RELAY-CHANGE OVER 40A MAXI $9.61 IN STOCK
Photo Part No Description Price (each) Stock
3723423 Fuse Midi 7.5A $2.06 IN STOCK
3723424 Fuse, Midi 10A $1.89 To Order
3723425 Fuse, Midi 15A $1.89 To Order
...and 11 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
4G433710526 Relay, micro Enquire To Order
Photo Part No Description Price (each) Stock
4G433710526 Relay, micro Enquire To Order
Photo Part No Description Price (each) Stock
DD433F826AA MODULE - PWR STRG $336.59 To Order
3785236 Protector, Power Stud $5.72 To Order
View All

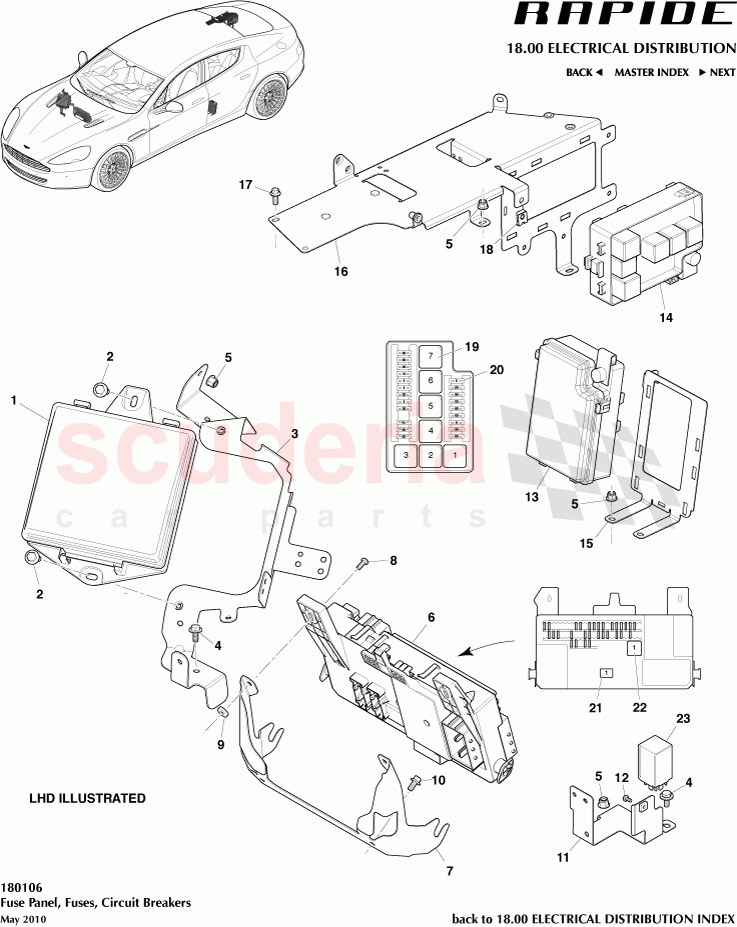

Fuse Panel, Fuses, Circuit Breakers of Aston Martin Aston Martin Rapide Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 BG3314A173AB
Fuse Box Assembly, Engine Bay
-12MY 		$481.55 1
1 AD4314A173AB
ENGINE BAY FUSEBOX 		$529.18 1
2 702839PK
SCREW & WASHER M6 X 10 HEX HEAD (PACK OF 10)
IN STOCK 		$5.57 2
3 4G4314A173BK
ENGINE BAY FUSEBOX BRACKET RHD 		$65.54 1
3 4G4314A173CH
ENG BAY F/BOX BRKT 		$170.32 1
4 703151
Screw M6x16 Washer Hex HD Chrome Free
IN STOCK 		$0.51 3
5 703164
M6 LOCKNUT FLANGE NY LON CHROM FREE 		$0.47 5
6 8G4314C245AA
Central Electronic Module - CEM 		$931.95 1
7 4G4313B525BG
Bracket, Cabin Fuse Box CEM 		$44.44 1
8 702082
Bolt, Self Locking, M5 x 16
IN STOCK 		$1.23 2
9 703164
M6 LOCKNUT FLANGE NY LON CHROM FREE 		$0.47 2
10 700606
Screw, M6 x 12, Hex Flange Head
IN STOCK 		$0.20 2
11 4G43L41041AA
Edge Strip, Black 2 x 40
Bracket, Fusebox mounting
IN STOCK 		$10.74 1
11 8D3314N072AE
Bracket, Fuse Box, LHD 		$42.70 1
11 8D3314N072BD
Bracket, Fuse Box, RHD 		$49.70 1
12 700963
SREW M4 x 8mm LONG PAN HEAD POZIDRIVE BLACK 		$0.47 1
13 AD4314A073AC
REAR FUSEBOX 		- 1 Enquire
14 AD4314A074AA
UNDERSEAT FUSEBOX 		$469.07 1
15 AD4314A301BB
UNDERSEAT FUSEBOX BRACKET MOUNTING 		$31.91 1
16 AD4314A301AC
BRACKET REAR FUSEBOX MOUNTING 		$127.52 1
17 200020135PK
Screw, M6 x 16, Flange Hex Head
Rear fusebox bracket 		$291.20 4
18 701448
Spring Nut, U Type, 4.2 x 2.1
IN STOCK 		$1.18 1
19 1R123710526
RELAY-CHANGE OVER 40A MAXI
IN STOCK 		$9.61 7
20 3723423
Fuse Midi 7.5A
257 07.5
IN STOCK 		$2.06 -
20 3723424
Fuse, Midi 10A
257 010 		$1.89 -
20 3723425
Fuse, Midi 15A
257 015 		$1.89 -
20 3723426
Fuse, Midi 20A
257 020 		$1.89 -
20 3723427
Fuse, Midi 25A
257 025 		$1.77 -
20 3723428
Fuse, Midi 30A
257 030 		$4.25 -
20 3723422
Fuse, Midi 5A
257 005 		$1.89 -
20 4G433710962
FUSE 80 AMP- COOLING FAN MOTOR 		$18.59 -
20 4G433710579PK
MINI FUSE-7.5A PK 10 		$24.82 -
20 4G433710580PK
MINI FUSE-10A PK 10 		$54.96 -
20 4G433710581PK
MINI FUSE-15A PK 10 		$24.82 -
20 4G433710582PK
MINI FUSE-20A PK 10 		$24.82 -
20 4G433710583PK
MINI FUSE-25A PK 10 		$24.82 -
20 4G433710578PK
MINI FUSE-5A PK 10 		$32.37 -
21 4G433710526
Relay, micro 		- 1 Enquire
22 4G433710526
Relay, micro 		- 1 Enquire
23 DD433F826AA
MODULE - PWR STRG 		$336.59 1
23 3785236
Protector, Power Stud 		$5.72 1
