Aston Martin Rapide - Forward Wiring

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
AD43-14290-BD LHD FORWARD HARNESS $7,036.34 To Order
AD43-14290-AC RHD FORWARD HARNESS $1,873.67 To Order
Photo Part No Description Price (each) Stock
AD43-15K877-AB FRONT BUMPER HARNESS $379.03 To Order
Photo Part No Description Price (each) Stock
8G43-9137-AC Harness Assembly, Fan Pack Link $208.29 To Order
Photo Part No Description Price (each) Stock
FD33-14290-DA PAS LINK HARNESS $26.91 To Order
FD33-14290-CA PAS LINK HARNESS $103.23 To Order

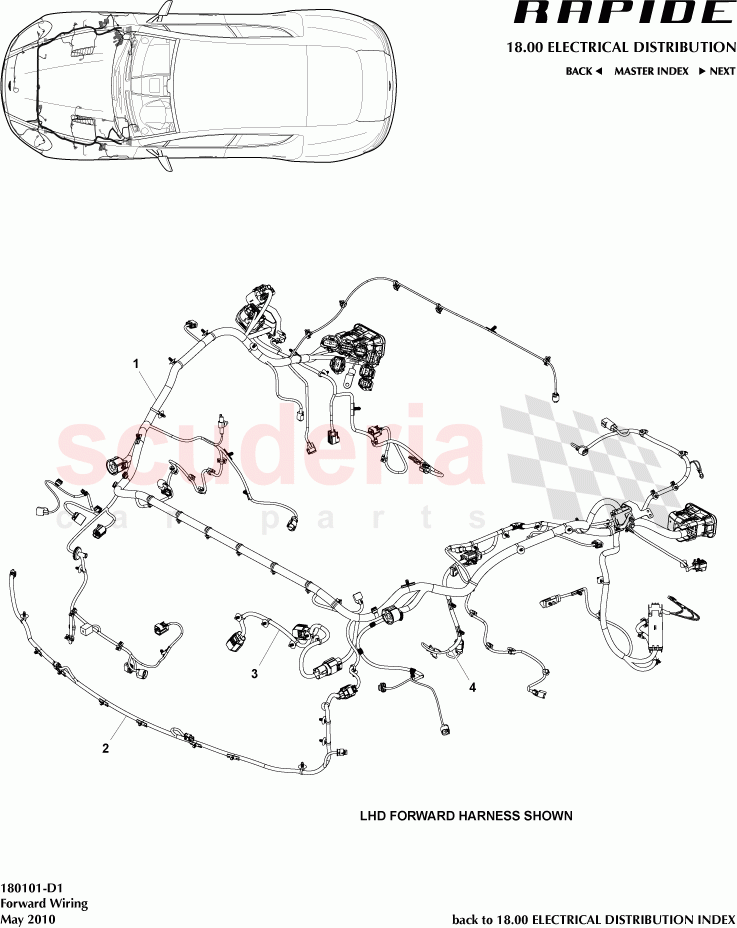

Forward Wiring of Aston Martin Aston Martin Rapide Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 AD43-14290-BD
LHD FORWARD HARNESS 		$7,036.34 1
TO
1 AD43-14290-AC
RHD FORWARD HARNESS 		$1,873.67 1
TO
2 AD43-15K877-AB
FRONT BUMPER HARNESS 		$379.03 1
TO
3 8G43-9137-AC
Harness Assembly, Fan Pack Link 		$208.29 1
TO
4 FD33-14290-DA
PAS LINK HARNESS 		$26.91 1
TO
4 FD33-14290-CA
PAS LINK HARNESS 		$103.23 1
TO
