Body Sound Insulation 2

Aston Martin Rapide

Find Your Part

Aston Martin Rapide - Body Sound Insulation 2

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
AD43C56157AB Foam, luggage compartment front Enquire To Order
Photo Part No Description Price (each) Stock
AD4350106AA Insulation, rear quarter sound, RHS Enquire To Order
Photo Part No Description Price (each) Stock
AD4350107AA Insulation, rear quarter sound, LHS Enquire To Order
Photo Part No Description Price (each) Stock
AD43C27746AA Insulation, rear quarter inside panel, LHS Enquire To Order
Photo Part No Description Price (each) Stock
AD4313B154AA Tape, rear bulkhead upper Enquire To Order
Photo Part No Description Price (each) Stock
AD43278D02AA Insulation, rear body panel Enquire To Order
Photo Part No Description Price (each) Stock
AD4331180AD Backing, rear trim, RHS Enquire To Order
Photo Part No Description Price (each) Stock
AD4331181AD Backing, rear trim, LHS Enquire To Order
Photo Part No Description Price (each) Stock
AD43D1160AC Insulation, C pillar trim, RHS Enquire To Order
Photo Part No Description Price (each) Stock
AD43D1161AC Insulation, C pillar trim, LHS Enquire To Order
Photo Part No Description Price (each) Stock
AD43D1030AB Insulation, B pillar trim, RHS Enquire To Order
Photo Part No Description Price (each) Stock
AD43D1031AB Insulation, B pillar trim, LHS Enquire To Order
Photo Part No Description Price (each) Stock
AD4303505AA Insulation, front header Enquire To Order
Photo Part No Description Price (each) Stock
AD43-016C26-BA INS RR AIR CVR $15.28 To Order
Photo Part No Description Price (each) Stock
AD43-5416-BA NVH TNL RR INR Enquire To Order
Photo Part No Description Price (each) Stock
AD43-7Z309-AB GEARBOX NVH SURROUND Enquire To Order
Photo Part No Description Price (each) Stock
AD43-24926-BB PAD TNL SD RH $28.97 To Order
Photo Part No Description Price (each) Stock
AD43-24927-BA PAD TNL SD LH $17.41 To Order
Photo Part No Description Price (each) Stock
AD43-114B26-AC INSULATION TUNNEL $81.97 To Order
Photo Part No Description Price (each) Stock
AD43-102A86-BA FLR PAN NVH LHS INR $3.14 To Order
Photo Part No Description Price (each) Stock
AD43-102A84-BA FLR PAN NVH RHS INR $3.14 To Order
Photo Part No Description Price (each) Stock
697648 Fastener, Fir Tree $0.84 To Order
Photo Part No Description Price (each) Stock
697654 BOLT-M10 x 85 FLG HD $5.03 To Order

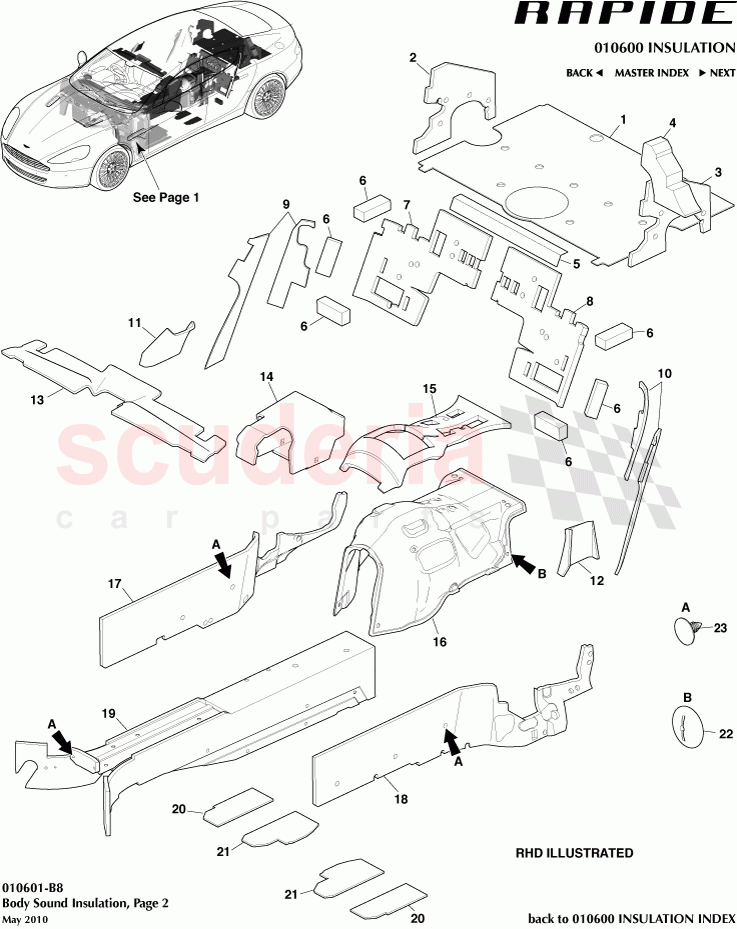

Body Sound Insulation 2 of Aston Martin Aston Martin Rapide Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 AD43C56157AB
Foam, luggage compartment front 		- 1
PE
 Enquire
2 AD4350106AA
Insulation, rear quarter sound, RHS 		- 1
PE
 Enquire
3 AD4350107AA
Insulation, rear quarter sound, LHS 		- 1
PE
 Enquire
4 AD43C27746AA
Insulation, rear quarter inside panel, LHS 		- 1
PE
 Enquire
5 AD4313B154AA
Tape, rear bulkhead upper 		- 1
PE
 Enquire
6 AD43278D02AA
Insulation, rear body panel 		- 6
PE
 Enquire
7 AD4331180AD
Backing, rear trim, RHS 		- 1
PE
 Enquire
8 AD4331181AD
Backing, rear trim, LHS 		- 1
PE
 Enquire
9 AD43D1160AC
Insulation, C pillar trim, RHS 		- 1
PE
 Enquire
10 AD43D1161AC
Insulation, C pillar trim, LHS 		- 1
PE
 Enquire
11 AD43D1030AB
Insulation, B pillar trim, RHS 		- 1
PE
 Enquire
12 AD43D1031AB
Insulation, B pillar trim, LHS 		- 1
PE
 Enquire
13 AD4303505AA
Insulation, front header 		- 1
PE
 Enquire
14 AD43-016C26-BA
INS RR AIR CVR 		$15.28 1
TO
15 AD43-5416-BA
NVH TNL RR INR 		- 1
PE
 Enquire
16 AD43-7Z309-AB
GEARBOX NVH SURROUND 		- 1
PE
 Enquire
17 AD43-24926-BB
PAD TNL SD RH 		$28.97 1
TO
18 AD43-24927-BA
PAD TNL SD LH 		$17.41 1
TO
19 AD43-114B26-AC
INSULATION TUNNEL 		$81.97 1
TO
20 AD43-102A86-BA
FLR PAN NVH LHS INR 		$3.14 2
TO
21 AD43-102A84-BA
FLR PAN NVH RHS INR 		$3.14 2
TO
22 697648
Fastener, Fir Tree 		$0.84 12
TO
23 697654
BOLT-M10 x 85 FLG HD 		$5.03 8
TO
