Body Dash And Cowl (Lhd)

Aston Martin Rapide

Find Your Part

Aston Martin Rapide - Body Dash and Cowl (LHD)

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
AD43F292821AB Casting, Plenum Upper LHD Enquire To Order
AD43F292821BB Casting, Plenum Upper RHD $712.36 To Order
Photo Part No Description Price (each) Stock
AG33-10414-AA MEMBER FRONT CS AT DH $88.35 To Order
Photo Part No Description Price (each) Stock
GOAD43F292650AA Casting, Plenum Lower LHD Enquire To Order
GOAD43F292650BA Casting, Plenum Lower RHD Enquire To Order
Photo Part No Description Price (each) Stock
GOAD43-F8875-AA Casting, Plenum Interface LH $142.68 To Order
Photo Part No Description Price (each) Stock
AD43F8874AA Casting, Plenum Interface RH Enquire To Order
Photo Part No Description Price (each) Stock
AD43A02571AA Casting, A Pillar Lower LH Enquire To Order
Photo Part No Description Price (each) Stock
AD43-A02570-AA A PILLAR LOWER CASTING RH Enquire To Order
Photo Part No Description Price (each) Stock
6G33-486226-AA Nutplate, M8, IP beam $9.24 To Order
Photo Part No Description Price (each) Stock
GOAD43F02527AB Reinforcement, Front Body Pillar LH Enquire To Order
Photo Part No Description Price (each) Stock
GOAD43F02526AB Reinforcement, Front Body Pillar RH Enquire To Order
Photo Part No Description Price (each) Stock
AD43-F01760-AD PNL DH UPR LHD Enquire To Order
AD43-F01760-BC PNL DH UPPER RHD Enquire To Order
Photo Part No Description Price (each) Stock
AD43-F01613-AA PNL DH SD LH $1,720.30 To Order
Photo Part No Description Price (each) Stock
AD43F01612AA Panel, Dash Side RH Enquire To Order
Photo Part No Description Price (each) Stock
GOAD43-F02661-AA PLR FRT BDY LWR FRT LH $194.72 To Order
Photo Part No Description Price (each) Stock
GOAD43-F02660-AA PLR FRT BDY LWR FRT RH $186.12 To Order
Photo Part No Description Price (each) Stock
GOAD43-F02663-AA Pillar, External Front Body Lower LH $110.99 To Order
Photo Part No Description Price (each) Stock
GOAD43-F02662-AA EXT FRT BDY PLR RH $102.25 To Order
Photo Part No Description Price (each) Stock
AD43F71491AA Nutplate, A Post Hinge Upper LH Enquire To Order
Photo Part No Description Price (each) Stock
AD43-F71490-AA Nutplate, A Post Hinge Upper RH $15.79 To Order
Photo Part No Description Price (each) Stock
6G33-15111-AA Nutplate, A Post Hinge, Upper, LH $8.32 To Order
Photo Part No Description Price (each) Stock
6G33-15110-AB Nutplate M8, ??post hinge, lower, RH $12.73 To Order
Photo Part No Description Price (each) Stock
AD43-16B247-AA FENDER FRONT UPPER ASSY LH SERVICE $1,031.04 To Order
Photo Part No Description Price (each) Stock
AD43-16B246-AA FENDER FRNT UPPER REINF ASSY RH SERVIC $1,104.98 To Order
Photo Part No Description Price (each) Stock
8G43-16431-AA REINF HOOD STRIKER PLATE LH $92.17 To Order
Photo Part No Description Price (each) Stock
8G43-16430-AA REINF HOOD STRIKER PLATE RH $59.41 To Order
Photo Part No Description Price (each) Stock
AD43-F18178-AB BRACKET GAS DAMPER MOUNTING $10.11 To Order
Photo Part No Description Price (each) Stock
6G33-375732-AB Screw, 5.5 x 19, Self Drill, Hex Flange head $0.35 To Order
Photo Part No Description Price (each) Stock
1R12-640101-AA Ball Stud $5.62 IN STOCK
Photo Part No Description Price (each) Stock
AD43F025B06AA SLV, Front Body Pillar Tube Upper Enquire To Order

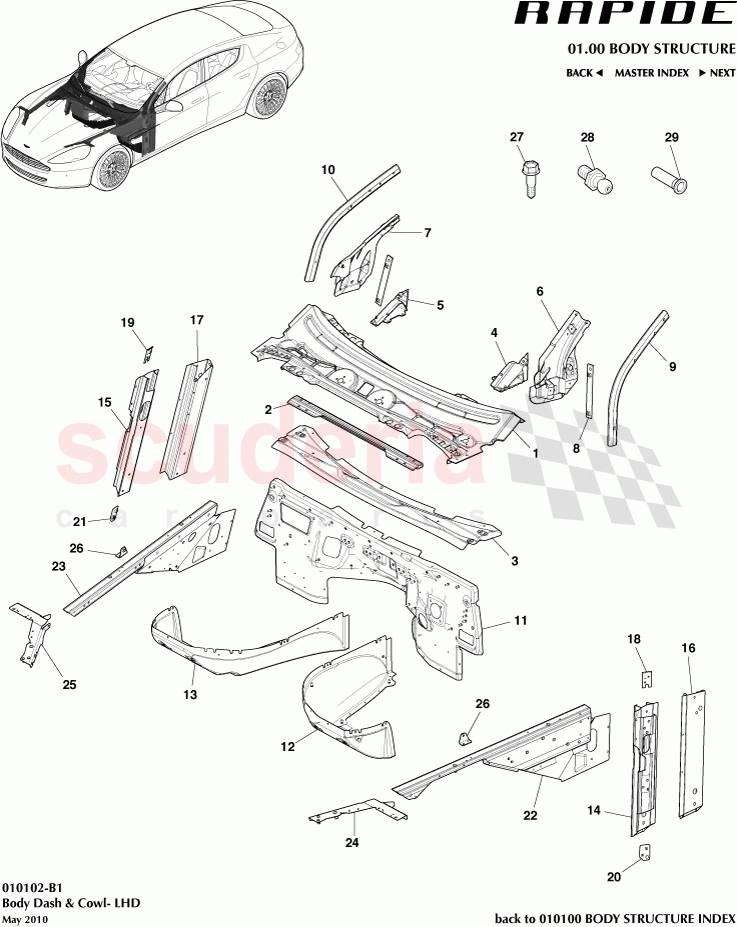

Body Dash and Cowl (LHD) of Aston Martin Aston Martin Rapide Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 AD43F292821AB
Casting, Plenum Upper LHD
Structural Cat. A only 		- 1
PE
 Enquire
1 AD43F292821BB
Casting, Plenum Upper RHD
Structural Cat. A only 		$712.36 1
TO
2 AG33-10414-AA
MEMBER FRONT CS AT DH
Structural Cat. A only 		$88.35 1
TO
3 GOAD43F292650AA
Casting, Plenum Lower LHD
Structural Cat. A only 		- 1
PE
 Enquire
3 GOAD43F292650BA
Casting, Plenum Lower RHD
Structural Cat. A only 		- 1
PE
 Enquire
4 GOAD43-F8875-AA
Casting, Plenum Interface LH
Structural Cat. A only 		$142.68 1
TO
5 AD43F8874AA
Casting, Plenum Interface RH
Structural Cat. A only 		- 1
PE
 Enquire
6 AD43A02571AA
Casting, A Pillar Lower LH
Structural Cat. A only 		- 1
PE
 Enquire
7 AD43-A02570-AA
A PILLAR LOWER CASTING RH
Structural Cat. A only 		- 1
PE
 Enquire
8 6G33-486226-AA
Nutplate, M8, IP beam
Structural Cat. A only 		$9.24 2
TO
9 GOAD43F02527AB
Reinforcement, Front Body Pillar LH
Structural Cat. A only 		- 1
PE
 Enquire
10 GOAD43F02526AB
Reinforcement, Front Body Pillar RH
Structural Cat. A only 		- 1
PE
 Enquire
11 AD43-F01760-AD
PNL DH UPR LHD
Structural Cat. A only 		- 1
PE
 Enquire
11 AD43-F01760-BC
PNL DH UPPER RHD
Structural Cat. A only 		- 1
PE
 Enquire
12 AD43-F01613-AA
PNL DH SD LH
Structural Cat. A only 		$1,720.30 1
TO
13 AD43F01612AA
Panel, Dash Side RH
Structural Cat. A only 		- 1
PE
 Enquire
14 GOAD43-F02661-AA
PLR FRT BDY LWR FRT LH
Structural Cat. A only 		$194.72 1
TO
15 GOAD43-F02660-AA
PLR FRT BDY LWR FRT RH
Structural Cat. A only 		$186.12 1
TO
16 GOAD43-F02663-AA
Pillar, External Front Body Lower LH
Structural Cat. A only 		$110.99 1
TO
17 GOAD43-F02662-AA
EXT FRT BDY PLR RH
Structural Cat. A only 		$102.25 1
TO
18 AD43F71491AA
Nutplate, A Post Hinge Upper LH
Structural Cat. A only 		- 1
PE
 Enquire
19 AD43-F71490-AA
Nutplate, A Post Hinge Upper RH
Structural Cat. A only 		$15.79 1
TO
20 6G33-15111-AA
Nutplate, A Post Hinge, Upper, LH
Structural Cat. A only 		$8.32 1
TO
21 6G33-15110-AB
Nutplate M8, ??post hinge, lower, RH
Structural Cat. A only 		$12.73 1
TO
22 AD43-16B247-AA
FENDER FRONT UPPER ASSY LH SERVICE
Service Assy, Structural Cat. A only 		$1,031.04 1
TO
23 AD43-16B246-AA
FENDER FRNT UPPER REINF ASSY RH SERVIC
Service Assy, Structural Cat. A only 		$1,104.98 1
TO
24 8G43-16431-AA
REINF HOOD STRIKER PLATE LH
Structural Cat. A only 		$92.17 1
TO
25 8G43-16430-AA
REINF HOOD STRIKER PLATE RH
Structural Cat. A only 		$59.41 1
TO
26 AD43-F18178-AB
BRACKET GAS DAMPER MOUNTING 		$10.11 2
TO
27 6G33-375732-AB
Screw, 5.5 x 19, Self Drill, Hex Flange head 		$0.35 4
TO
28 1R12-640101-AA
Ball Stud
IN STOCK 		$5.62 2
IN
29 AD43F025B06AA
SLV, Front Body Pillar Tube Upper
2 per tube, Structural Cat. A only 		- 4
PE
 Enquire
