Valve Train of Aston Martin Aston Martin DBS V12

View All

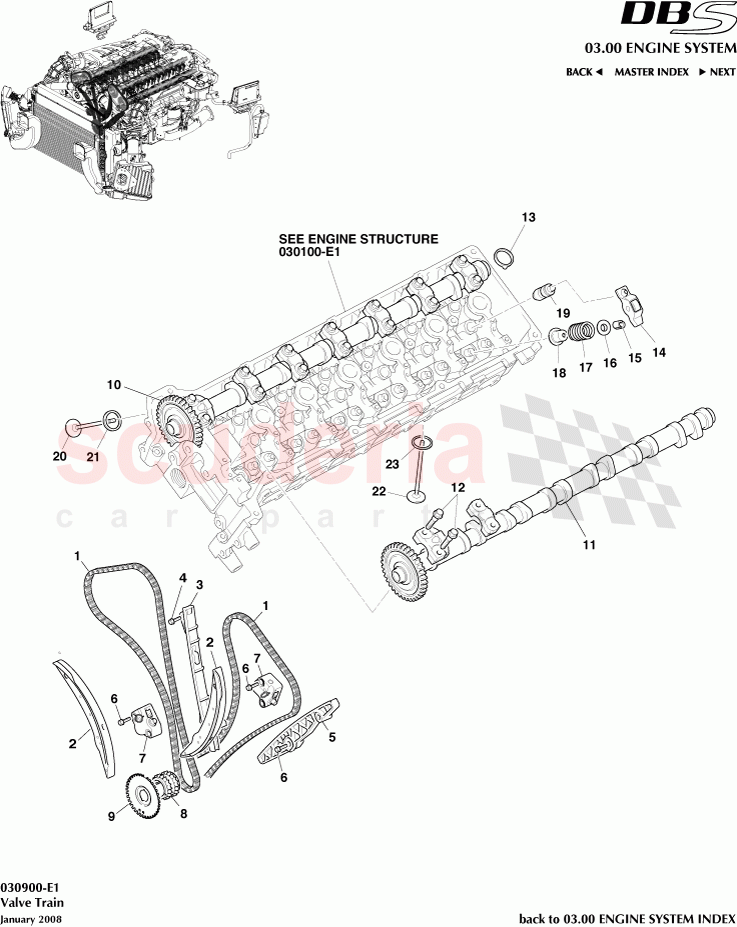

Aston Martin DBS V12 - Valve Train

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	1R120310483	Chain, Timing	$108.04	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	4G430310013	Arm Assembly, Timing Chain Tensioner	$55.43	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	1R120310069	Guide, Timing Chain, RH	$71.03	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	702851	BOLT & WASHER M8 X 32 HEX FLANGE	$4.93	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	1R120310070	Guide, Timing Chain, LH	$71.03	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	703694	BOLT & WASHER M8x45 HF PIL 8	$5.72	To Order

Photo	Part No	Description	Price (each)	Stock
	1R120310071	Tensioner - Timing Chain	$270.54	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	4G430210012	CRANKSHAFT SPROCKET-DOUBLE - 21T	$64.66	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	1R120710720	SENSOR RING-IGNITION	$47.90	To Order

Photo	Part No	Description	Price (each)	Stock
	7G4E6A267AB	Camshaft Assy, Intake, LH	$1,216.58	To Order

Photo	Part No	Description	Price (each)	Stock
	7G4E6A269AB	Camshaft Assy, Exhaust, LH	$1,200.24	To Order
	7G4E6A268AB	Camshaft Assy, Exhaust, RH	$1,200.24	To Order
	7G4E6A266AB	Camshaft Assy, Intake, RH	$1,216.85	To Order

Photo	Part No	Description	Price (each)	Stock
	685321	Bolt, M6 x 40, Hex Hd	$7.14	To Order

Photo	Part No	Description	Price (each)	Stock
	785366	GASKET SPARK PLUG HOLE	$6.82	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	685914	Arm Assembly Valve Rocker	$29.43	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	685041	Key, Valve Spring	$15.28	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	685040	Retainer Valve Spring	$1.71	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	1R120610062	Spring, Valve	$12.09	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	685038PK	Seal Valve Stem (Pack of 24)	$78.76	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	685042	Adjuster Valve Lash	$32.60	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	685037	Valve, Exhaust	$50.21	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	8D336510BA	Bushing, valve guide	$4.07	To Order
	685034	INSERT-V/SEAT EXH	$3.36	IN STOCK
	685035	Bushing, Valve Guide	$3.87	To Order

Photo	Part No	Description	Price (each)	Stock
	4G430610577	Valve, Inlet	$118.98	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	6G430610177	Insert, Valve Seat, Intake	$2.13	IN STOCK

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	1R120310483	Chain, Timing IN STOCK	1R120310483 Chain, Timing IN STOCK	$108.04	2
2	4G430310013	Arm Assembly, Timing Chain Tensioner IN STOCK	4G430310013 Arm Assembly, Timing Chain Tensioner IN STOCK	$55.43	2
3	1R120310069	Guide, Timing Chain, RH IN STOCK	1R120310069 Guide, Timing Chain, RH IN STOCK	$71.03	1
4	702851	BOLT & WASHER M8 X 32 HEX FLANGE IN STOCK	702851 BOLT & WASHER M8 X 32 HEX FLANGE IN STOCK	$4.93	2
5	1R120310070	Guide, Timing Chain, LH IN STOCK	1R120310070 Guide, Timing Chain, LH IN STOCK	$71.03	1
6	703694	BOLT & WASHER M8x45 HF PIL 8	703694 BOLT & WASHER M8x45 HF PIL 8	$5.72	6
7	1R120310071	Tensioner - Timing Chain IN STOCK	1R120310071 Tensioner - Timing Chain IN STOCK	$270.54	2
8	4G430210012	CRANKSHAFT SPROCKET-DOUBLE - 21T IN STOCK	4G430210012 CRANKSHAFT SPROCKET-DOUBLE - 21T IN STOCK	$64.66	1
9	1R120710720	SENSOR RING-IGNITION	1R120710720 SENSOR RING-IGNITION	$47.90	1
10	7G4E6A267AB	Camshaft Assy, Intake, LH	7G4E6A267AB Camshaft Assy, Intake, LH	$1,216.58	1
11	7G4E6A269AB	Camshaft Assy, Exhaust, LH	7G4E6A269AB Camshaft Assy, Exhaust, LH	$1,200.24	1
11	7G4E6A268AB	Camshaft Assy, Exhaust, RH	7G4E6A268AB Camshaft Assy, Exhaust, RH	$1,200.24	1
11	7G4E6A266AB	Camshaft Assy, Intake, RH	7G4E6A266AB Camshaft Assy, Intake, RH	$1,216.85	1
12	685321	Bolt, M6 x 40, Hex Hd	685321 Bolt, M6 x 40, Hex Hd	$7.14	56
13	785366	GASKET SPARK PLUG HOLE IN STOCK	785366 GASKET SPARK PLUG HOLE IN STOCK	$6.82	12
14	685914	Arm Assembly Valve Rocker IN STOCK	685914 Arm Assembly Valve Rocker IN STOCK	$29.43	48
15	685041	Key, Valve Spring IN STOCK	685041 Key, Valve Spring IN STOCK	$15.28	96
16	685040	Retainer Valve Spring IN STOCK	685040 Retainer Valve Spring IN STOCK	$1.71	48
17	1R120610062	Spring, Valve IN STOCK	1R120610062 Spring, Valve IN STOCK	$12.09	48
18	685038PK	Seal Valve Stem (Pack of 24) IN STOCK	685038PK Seal Valve Stem (Pack of 24) IN STOCK	$78.76	48
19	685042	Adjuster Valve Lash IN STOCK	685042 Adjuster Valve Lash IN STOCK	$32.60	48
20	685037	Valve, Exhaust IN STOCK	685037 Valve, Exhaust IN STOCK	$50.21	24
21	8D336510BA	Bushing, valve guide	8D336510BA Bushing, valve guide 12MY	$4.07	48
21	685034	INSERT-V/SEAT EXH IN STOCK	685034 INSERT-V/SEAT EXH IN STOCK	$3.36	24
21	685035	Bushing, Valve Guide	685035 Bushing, Valve Guide	$3.87	48
22	4G430610577	Valve, Inlet IN STOCK	4G430610577 Valve, Inlet IN STOCK	$118.98	24
23	6G430610177	Insert, Valve Seat, Intake IN STOCK	6G430610177 Insert, Valve Seat, Intake IN STOCK	$2.13	24
