Engine Cooling (Engine Fit)

Aston Martin DBS V12

Find Your Part

Photo Part No Description Price (each) Stock
8G43-8A586-AC Housing & Connection Assy, Engine Thermostat $1,161.09 To Order
Photo Part No Description Price (each) Stock
4G4E-8575-AB Thermostat Assy $305.65 IN STOCK
Photo Part No Description Price (each) Stock
32-85116 Seal, Thermostat $154.23 To Order
Photo Part No Description Price (each) Stock
32-85114 O Ring - Seal Housing $2.74 IN STOCK
Photo Part No Description Price (each) Stock
6G43-39-10080 Sensor, Engine Coolant Temperature $398.03 IN STOCK
Photo Part No Description Price (each) Stock
32-85112 O Ring - Water Outlet $6.03 IN STOCK
Photo Part No Description Price (each) Stock
32-85113 O RING SEAL $1.23 IN STOCK
Photo Part No Description Price (each) Stock
702855 BOLT &WASHER-M6x30 HEX FLG PIL $2.62 To Order
Photo Part No Description Price (each) Stock
7G43-8A588-AA Bracket, Engine Thermostat Connector $83.49 To Order
Photo Part No Description Price (each) Stock
05-85104 Pulley, Water Pump $567.40 To Order
4G43-18482-AA Hose Guard, Water Pump $36.81 To Order
05-85382 Gasket, Water Pump $48.14 IN STOCK
Photo Part No Description Price (each) Stock
1R12-32-10531 Seal, Press In, Water Pump $5.73 IN STOCK
4G43-05-10957 WATERPUMP ASSY- (NOSECONE ASSY) $692.09 IN STOCK
Photo Part No Description Price (each) Stock
8G43-8A513-AA CVR ASY WTR PMP $1,146.53 To Order
Photo Part No Description Price (each) Stock
703108 BOLT M8x45 HEX FLG 8 $0.60 To Order
Photo Part No Description Price (each) Stock
703694 BOLT & WASHER M8x45 HF PIL 8 $5.13 To Order
Photo Part No Description Price (each) Stock
702842 Bolt, M8 x 1.25 x 41, Hex Flange Head $0.32 To Order
Photo Part No Description Price (each) Stock
0585308 Gasket Enquire To Order
Photo Part No Description Price (each) Stock
05-85104 Pulley, Water Pump $567.40 To Order
Photo Part No Description Price (each) Stock
702843 Screw and Washer, M8 x 1.25 x 19, Hex Head $1.15 To Order

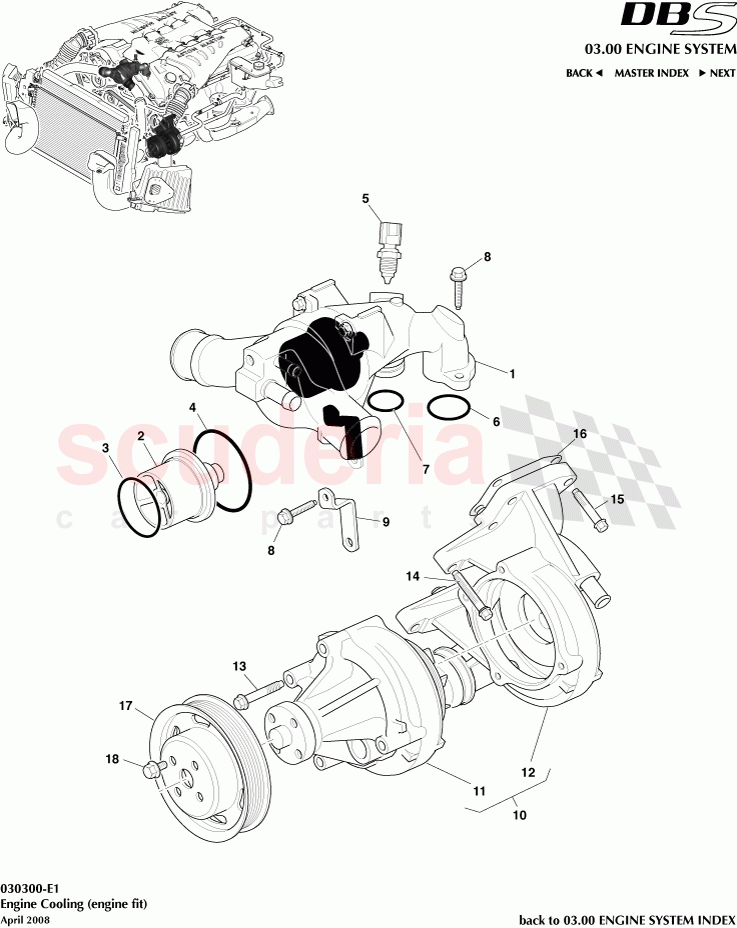

Engine Cooling (engine fit) of Aston Martin Aston Martin DBS V12 Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 8G43-8A586-AC
Housing & Connection Assy, Engine Thermostat 		$1,161.09 1
2 4G4E-8575-AB
Thermostat Assy
IN STOCK 		$305.65 1
3 32-85116
Seal, Thermostat 		$154.23 1
4 32-85114
O Ring - Seal Housing
IN STOCK 		$2.74 1
5 6G43-39-10080
Sensor, Engine Coolant Temperature
IN STOCK 		$398.03 1
6 32-85112
O Ring - Water Outlet
IN STOCK 		$6.03 1
7 32-85113
O RING SEAL
IN STOCK 		$1.23 1
8 702855
BOLT &WASHER-M6x30 HEX FLG PIL 		$2.62 6
9 7G43-8A588-AA
Bracket, Engine Thermostat Connector 		$83.49 1
10 05-85104
Pulley, Water Pump 		$567.40 1
10 4G43-18482-AA
Hose Guard, Water Pump 		$36.81 1
10 05-85382
Gasket, Water Pump
IN STOCK 		$48.14 1
11 1R12-32-10531
Seal, Press In, Water Pump
IN STOCK 		$5.73 1
11 4G43-05-10957
WATERPUMP ASSY- (NOSECONE ASSY)
IN STOCK 		$692.09 1
12 8G43-8A513-AA
CVR ASY WTR PMP 		$1,146.53 1
13 703108
BOLT M8x45 HEX FLG 8 		$0.60 4
14 703694
BOLT & WASHER M8x45 HF PIL 8 		$5.13 3
15 702842
Bolt, M8 x 1.25 x 41, Hex Flange Head 		$0.32 3
16 0585308
Gasket 		- 3 Enquire
17 05-85104
Pulley, Water Pump 		$567.40 1
18 702843
Screw and Washer, M8 x 1.25 x 19, Hex Head 		$1.15 4
