Ip Harness Assembly

Aston Martin DBS V12

Find Your Part

Aston Martin DBS V12 - IP Harness Assembly

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
9G43-14401-AC HARNESS ASSY FACIA RHD MANUAL $909.88 To Order
9G43-14401-BC HARNESS ASSY FACIA LHD MANUAL $873.50 To Order
CG43-14K024-AD Harness assy, facia, B and O Enquire To Order
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
9G43-14B079-DC CENTRE STACK HARNESS $545.92 To Order
9G43-14B079-CC CENTRE STACK HARNESS $600.51 To Order
CG43-14B079-BC Harness assy, centre Stack, MANUAL $528.03 To Order
...and 2 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
8D33-9137-BA Harness Assembly, Passive Anti Theft System (PATS) Link $34.63 To Order
Photo Part No Description Price (each) Stock
9D33-14N003-AA Inline bracket, Instrument Panel (IP), RHS $25.93 To Order
Photo Part No Description Price (each) Stock
77-84981-PK Tape, Anti Rattle Rear Quarter Wheel $31.59 To Order
CG43-14D454-BC Link Harness, Garmin Sat Nav $204.54 To Order
4G43-18C951-HB Media Oriented System transport (MOST), Service Loop $20.43 To Order
...and 1 more part variants. See table on right for more details.

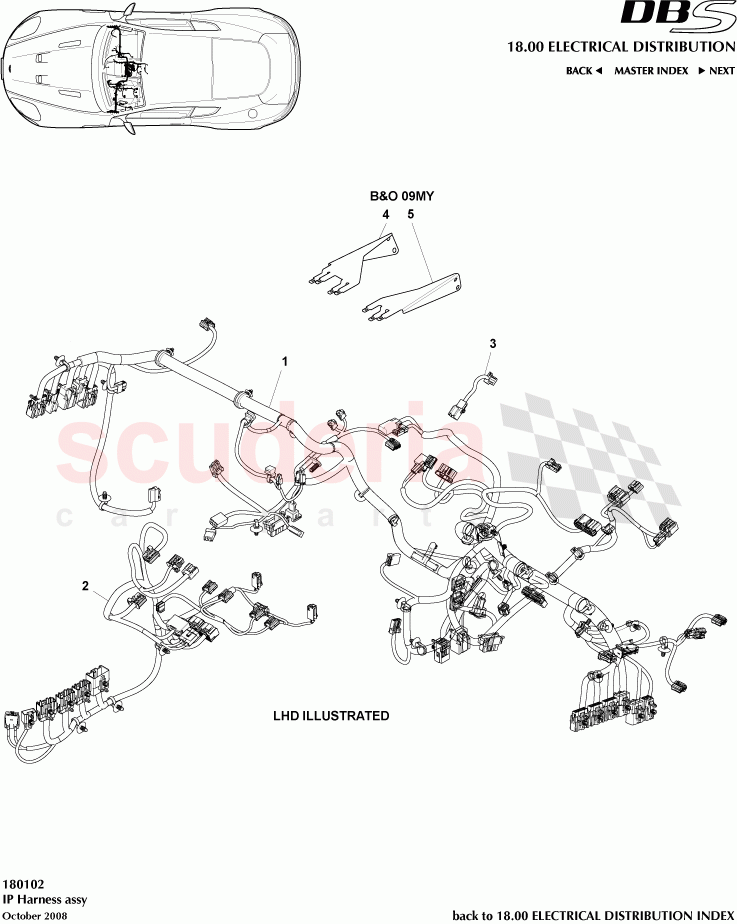

IP Harness Assembly of Aston Martin Aston Martin DBS V12 Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 9G43-14401-AC
HARNESS ASSY FACIA RHD MANUAL
RHD 9.5MY 		$909.88 1
TO
1 9G43-14401-BC
HARNESS ASSY FACIA LHD MANUAL
LHD 9.5MY 		$873.50 1
TO
1 CG43-14K024-AD
Harness assy, facia, B and O
RHD 12MY 		- 1
PE
 Enquire
1 CG43-14401-AD
LHD B & O FACIA HARNESS
LHD 12MY 		$888.96 1
TO
1 8D33-14401-GD
HARNESS ASSY FACIA RHD
RHD 		$779.15 1
TO
1 8D33-14401-HD
HARNESS ASSY FACIA LHD
LHD 		$855.60 1
TO
2 9G43-14B079-DC
CENTRE STACK HARNESS
9.5MY 		$545.92 1
TO
2 9G43-14B079-CC
CENTRE STACK HARNESS
9.5MY 		$600.51 1
TO
2 CG43-14B079-BC
Harness assy, centre Stack, MANUAL
12MY 		$528.03 1
TO
2 CG43-14B079-CC
CENTRE STACK AUTO
12MY 		$681.53 1
TO
2 8D33-14B079-AF
CENTRE STACK HARNESS 		$450.23 1
TO
3 8D33-9137-BA
Harness Assembly, Passive Anti Theft System (PATS) Link 		$34.63 1
TO
4 9D33-14N003-AA
Inline bracket, Instrument Panel (IP), RHS
9.5MY 		$25.93 1
TO
5 77-84981-PK
Tape, Anti Rattle Rear Quarter Wheel
12MY, not illustrated 		$31.59 1
TO
5 CG43-14D454-BC
Link Harness, Garmin Sat Nav
12MY, not illustrated 		$204.54 1
TO
5 4G43-18C951-HB
Media Oriented System transport (MOST), Service Loop
not illustrated 		$20.43 1
TO
5 9D33-14N003-BB
Inline bracket, Instrument Panel (IP), LHS
9.5MY 		$29.95 1
TO
