Body Harness (Volante) of Aston Martin Aston Martin DBS V12

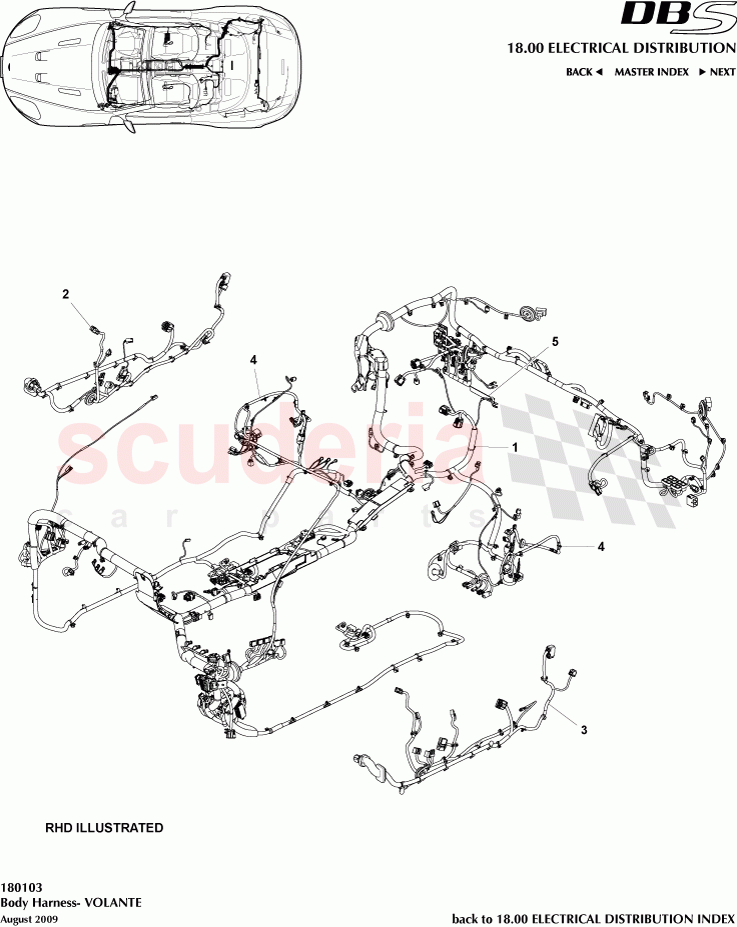

Aston Martin DBS V12 - Body Harness (Volante)

View the exploded parts diagram to find the part you are looking for

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN

IN STOCK

AS

ARRIVING SOON

TO

TO ORDER

PE

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	CG4314A005HB	Harness assy, cabin VOLANTE, B & O + ADS	Enquire	To Order
	CG43-14A005-GD	LHD CONV CABIN HARNESS B&O +ADS	$13,297.38	To Order
	AG4314A005QB	Harness assy, cabin, VOLANTE	$24,895.06	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	8D33-14631-AD	HARNESS ASSY DRIVERS DOOR RHD	$662.12	To Order
	8D33-14631-BD	HARNESS ASSY DRIVERS DOOR LHD	$662.12	To Order

Photo	Part No	Description	Price (each)	Stock
	8D33-14630-AD	HARNESS ASSY PASSENGER DOOR RHD	$702.65	To Order
	8D33-14630-BD	HARNESS ASSY PASSENGER DOOR LHD	$702.67	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43-14284-AB	REAR QUARTER LIGHT CONVERTIBLE LINK HARNESS	$86.98	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43-14A280-FC	Earth Braid, Antenna Module	$42.21	To Order
	7G43SPD5596AA	Foam Strip, Anti-rattle	Enquire	To Order

Body Harness (Volante) of Aston Martin Aston Martin DBS V12

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

	#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Order Qty	Key	Add to Cart
	1	CG4314A005HB	Harness assy, cabin VOLANTE, B & O + ADS	CG4314A005HB Harness assy, cabin VOLANTE, B & O + ADS LHD, 12MY	-	1		PE	Enquire
	1	CG43-14A005-GD	LHD CONV CABIN HARNESS B&O +ADS	CG43-14A005-GD LHD CONV CABIN HARNESS B&O +ADS LHD, 12MY	$13,297.38	1		TO
	1	AG4314A005QB	Harness assy, cabin, VOLANTE	AG4314A005QB Harness assy, cabin, VOLANTE RHD	$24,895.06	1		TO
	1	AG4314A005RB	Harness assy, cabin, VOLANTE	AG4314A005RB Harness assy, cabin, VOLANTE LHD	$11,944.09	1		TO
	2	8D33-14631-AD	HARNESS ASSY DRIVERS DOOR RHD	8D33-14631-AD HARNESS ASSY DRIVERS DOOR RHD RHD 09MY	$662.12	1		TO
	2	8D33-14631-BD	HARNESS ASSY DRIVERS DOOR LHD	8D33-14631-BD HARNESS ASSY DRIVERS DOOR LHD LHD 09MY	$662.12	1		TO
	3	8D33-14630-AD	HARNESS ASSY PASSENGER DOOR RHD	8D33-14630-AD HARNESS ASSY PASSENGER DOOR RHD RHD 09MY	$702.65	1		TO
	3	8D33-14630-BD	HARNESS ASSY PASSENGER DOOR LHD	8D33-14630-BD HARNESS ASSY PASSENGER DOOR LHD LHD 09MY	$702.67	1		TO
	4	4G43-14284-AB	REAR QUARTER LIGHT CONVERTIBLE LINK HARNESS	4G43-14284-AB REAR QUARTER LIGHT CONVERTIBLE LINK HARNESS	$86.98	2		TO
	5	4G43-14A280-FC	Earth Braid, Antenna Module	4G43-14A280-FC Earth Braid, Antenna Module	$42.21	1		TO
	5	7G43SPD5596AA	Foam Strip, Anti-rattle	7G43SPD5596AA Foam Strip, Anti-rattle	-	1		PE	Enquire
