Centre Stack Assembly (2009)

Aston Martin DB9 (2004-2012)

Find Your Part

Aston Martin DB9 (2004-2012) - Centre Stack Assembly (2009)

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
8D33-18K810-AA INFOTAINMENT CONTROL MODULE HARDWARE $1,632.81 IN STOCK
Photo Part No Description Price (each) Stock
CG3318C612AA Module, HVAC control Enquire To Order
8D33-18C612-AB CENTRE CONSOLE MODULE ECU $916.95 To Order
Photo Part No Description Price (each) Stock
8D33-15000-BB Analogue Clock $792.17 To Order
Photo Part No Description Price (each) Stock
8D3313D734CB Switch body, Piano Black surround and Silver lens $217.51 To Order
Photo Part No Description Price (each) Stock
8D33-18C612-DA Module, Temp HVAC Rotary Control $188.01 To Order
Photo Part No Description Price (each) Stock
8D33-13D734-BB Module, Volume / Auto Audio Control $253.69 To Order
Photo Part No Description Price (each) Stock
8D33-18817-AB AUDIO CONROL KNOB $363.92 To Order
Photo Part No Description Price (each) Stock
8D33-18C612-EA Module, Fan Speed HVAC Rotary Control $233.04 To Order
Photo Part No Description Price (each) Stock
CG4318783AA Knob, HVAC control, satin chrome Enquire To Order
AG43-37-11210 SWITCH KIT-GLASS DB9 MANUAL & V8 VTG MANUAL (MADE TO ORD) $599.09 To Order
AG43-37-11211 SWITCH KIT-GLASS DB9 AUTO (MADE TO ORDER) $1,172.18 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
AD33-15A860-BB PARKING SENSOR SWITC $170.94 To Order
8D33-15A860-BB SWITCH-PARKNG SENSOR $46.45 To Order
Photo Part No Description Price (each) Stock
AD33-2C418-DA Switch, DSC Control $111.92 To Order
AD33-2C418-CA Switch, Active Damping $845.32 To Order
BG43-2C418-BA DSC CONTROL SWITCH $60.76 To Order
...and 2 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
AD33-15K237-BB FOGLAMP SWITCH $130.44 To Order
6G33-15K237-BB FOGLAMP SWITCH $44.72 To Order
Photo Part No Description Price (each) Stock
AD33-14B626-CB SPORTS MODE SWITCH $442.56 To Order
9D33-14B626-AA SPORTS MODE SWITCH $51.93 To Order
6G33-14B626-BB SPORTS MODE SWITCH $62.10 To Order
Photo Part No Description Price (each) Stock
9G43-56051-BB PEN HOLDER $50.79 To Order
700623 LAMY POCKET PEN-CHROME $113.93 IN STOCK
Photo Part No Description Price (each) Stock
707263 SCREW 4.2x13 FLG T/F $4.07 To Order
Photo Part No Description Price (each) Stock
701157-PK Screw & Washer 4.2 x 16 (Pack of 10) $2.65 IN STOCK
Photo Part No Description Price (each) Stock
CD33-13D734-CA SWITCH MAIN BODY $6,126.02 To Order
8D33-18783-AC HVAC CONTROL KNOB $398.23 To Order
Photo Part No Description Price (each) Stock
AG43-04708-BB ICM LENS $108.80 IN STOCK

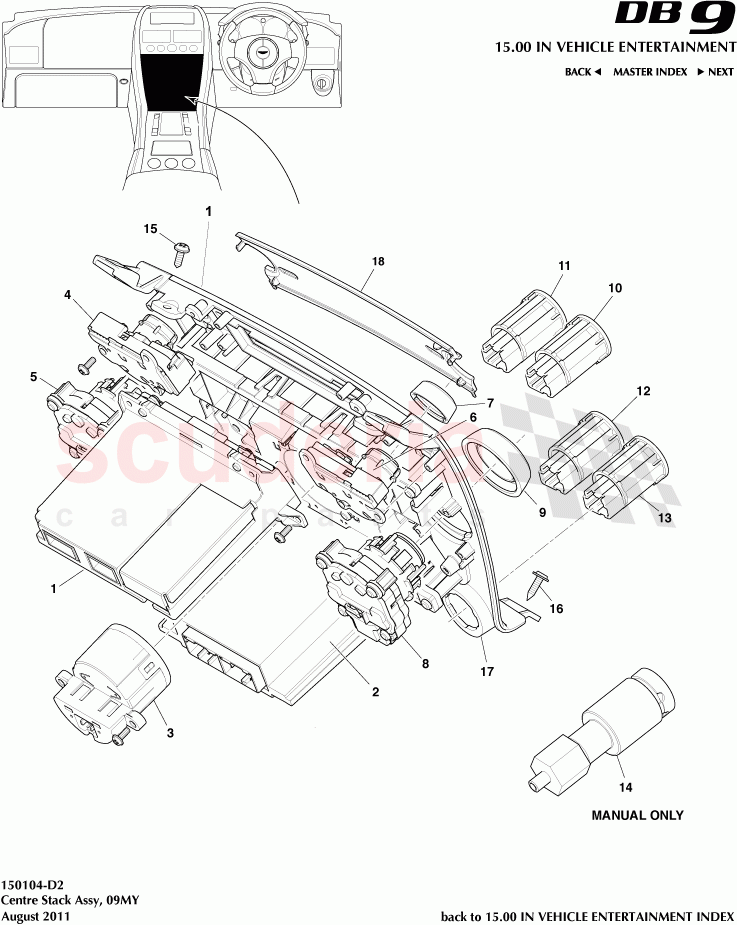

Centre Stack Assembly (2009) of Aston Martin Aston Martin DB9 (2004-2012) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- CG4318C815GA
Centre stack assy, black outer, black inner, satin chrome knobs
12MY 		- 1
PE
 Enquire
- 9G43-18C815-AD
CENTRE STACK ASSY SILVER OUTR GRAPHITE INNER
11MY 		$5,902.47 1
TO
- 9G4318C858BC
Centre stack assy, silver outer, graphite inner, LHD MANUAL 		- 1
PE
 Enquire
- 9G4318C858AB
Centre stack assy, silver outer, graphite inner, LHD AUTO 		- 1
PE
 Enquire
- 9G4318C858DB
Centre stack assy, silver, RHD MANUAL 		- 1
PE
 Enquire
- 9G43-18C858-CA
CENTRE STACK ASSY SILVER 		$5,281.11 1
TO
1 8D33-18K810-AA
INFOTAINMENT CONTROL MODULE HARDWARE
IN STOCK 		$1,632.81 1
IN
2 CG3318C612AA
Module, HVAC control
12MY 		- 1
PE
 Enquire
2 8D33-18C612-AB
CENTRE CONSOLE MODULE ECU 		$916.95 1
TO
3 8D33-15000-BB
Analogue Clock 		$792.17 1
TO
4 8D3313D734CB
Switch body, Piano Black surround and Silver lens 		$217.51 1
TO
5 8D33-18C612-DA
Module, Temp HVAC Rotary Control 		$188.01 1
TO
6 8D33-13D734-BB
Module, Volume / Auto Audio Control 		$253.69 1
TO
7 8D33-18817-AB
AUDIO CONROL KNOB 		$363.92 2
TO
8 8D33-18C612-EA
Module, Fan Speed HVAC Rotary Control 		$233.04 1
TO
9 CG4318783AA
Knob, HVAC control, satin chrome
12MY 		- 2
PE
 Enquire
9 AG43-37-11210
SWITCH KIT-GLASS DB9 MANUAL & V8 VTG MANUAL (MADE TO ORD) 		$599.09 1
TO
9 AG43-37-11211
SWITCH KIT-GLASS DB9 AUTO (MADE TO ORDER) 		$1,172.18 1
TO

8D33-18783-AC

HVAC CONTROL KNOB

from $398.23

10 AD33-15A860-BB
PARKING SENSOR SWITC
11MY, Glass 		$170.94 1
TO
10 8D33-15A860-BB
SWITCH-PARKNG SENSOR 		$46.45 1
TO
11 AD33-2C418-DA
Switch, DSC Control
11MY, Glass 		$111.92 1
TO
11 AD33-2C418-CA
Switch, Active Damping
12MY 		$845.32 1
TO
11 BG43-2C418-BA
DSC CONTROL SWITCH
12MY 		$60.76 1
TO
11 8D33-2C418-CA
ACTIVE DAMPING SWTCH
12MY 		$63.72 1
TO
11 6G33-2C418-AA
DSC CONTROL SWITCH
IN STOCK 		$48.81 1
IN
12 AD33-15K237-BB
FOGLAMP SWITCH
11MY, Glass 		$130.44 1
TO
12 6G33-15K237-BB
FOGLAMP SWITCH 		$44.72 1
TO
13 AD33-14B626-CB
SPORTS MODE SWITCH
11MY 		$442.56 1
TO
13 9D33-14B626-AA
SPORTS MODE SWITCH
12MY 		$51.93 1
TO
13 6G33-14B626-BB
SPORTS MODE SWITCH 		$62.10 1
TO
14 9G43-56051-BB
PEN HOLDER 		$50.79 1
TO
14 700623
LAMY POCKET PEN-CHROME
IN STOCK 		$113.93 1
IN
15 707263
SCREW 4.2x13 FLG T/F 		$4.07 2
TO
16 701157-PK
Screw & Washer 4.2 x 16 (Pack of 10)
IN STOCK 		$2.65 2
IN
17 CD33-13D734-CA
SWITCH MAIN BODY
12MY 		$6,126.02 1
TO
18 AG43-04708-BB
ICM LENS
9.5MY on
IN STOCK 		$108.80 1
IN
