Name: Harness, Instrument Panel
Rating: 4.4 (1 reviews)

Harness, Instrument Panel of Aston Martin Aston Martin DB9 (2004-2012)

View All

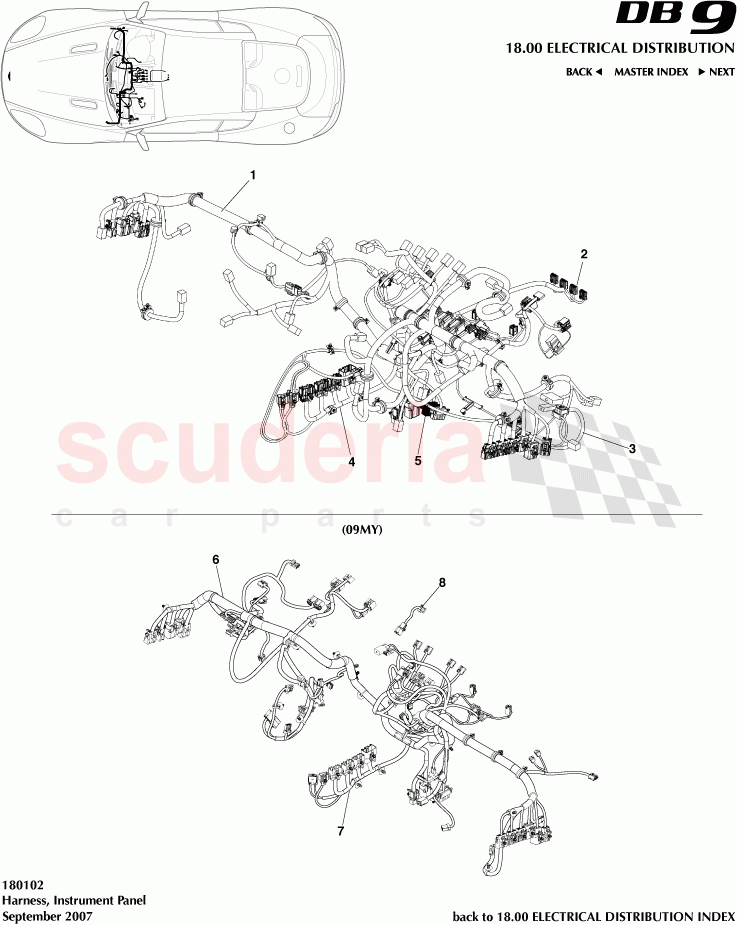

Aston Martin DB9 (2004-2012) - Harness, Instrument Panel

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	8G4314401HB	HARNESS ASSY FACIA LHD MANUAL	$709.73	To Order
	8G4314401GB	HARNESS ASSY FACIA RHD MANUAL	$709.73	To Order
	8G4314401EB	HARNESS ASSY FACIA RHD AUTO	$891.65	To Order

...and 9 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	8G4314B079EB	LHD CENTRE STACK HARNESS	$400.39	To Order
	8G4314B079CB	RHD CENTRE STACK HARNESS	$382.16	To Order
	8G4314B079DB	LHD CENTRE STACK HARNESS	$382.16	To Order

...and 5 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	8G4314C007AA	PHONE LINK RIGHT HAND DRIVE	$414.72	To Order
	8G4314C007BA	PHONE LINK LEFT HAND DRIVE	$431.34	To Order
	4G4314C007AD	PHONE LINK RIGHT HAND DRIVE	$174.34	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	4G4318C951HB	Media Oriented System transport (MOST), Service Loop	$20.43	To Order

Photo	Part No	Description	Price (each)	Stock
	6G3314A457AA	COVER DIAGNOSTIC CONNECTOR	$10.40	To Order

Photo	Part No	Description	Price (each)	Stock
	8D3314401GD	HARNESS ASSY FACIA RHD	$779.15	To Order
	8D3314401HD	HARNESS ASSY FACIA LHD	$855.60	To Order

Photo	Part No	Description	Price (each)	Stock
	9G4314B079AE	CENTRE STACK HARNESS	$492.02	To Order
	8D3314B079AF	CENTRE STACK HARNESS	$450.23	To Order

Photo	Part No	Description	Price (each)	Stock
	8D339137BA	Harness Assembly, Passive Anti Theft System (PATS) Link	$34.63	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	8G4314401HB	HARNESS ASSY FACIA LHD MANUAL	8G4314401HB HARNESS ASSY FACIA LHD MANUAL 08MY From (V) A09110 +	$709.73	1
1	8G4314401GB	HARNESS ASSY FACIA RHD MANUAL	8G4314401GB HARNESS ASSY FACIA RHD MANUAL 08MY From (V) A09110 +	$709.73	1
1	8G4314401EB	HARNESS ASSY FACIA RHD AUTO	8G4314401EB HARNESS ASSY FACIA RHD AUTO 08MY From (V) A09110 +	$891.65	1
1	8G4314401FB	HARNESS ASSY FACIA LHD AUTO	8G4314401FB HARNESS ASSY FACIA LHD AUTO 08MY From (V) A09110 +	$818.86	1
1	7G4314401HC	HARNESS ASSY FACIA LHD MANUAL	7G4314401HC HARNESS ASSY FACIA LHD MANUAL 07MY	$765.68	1
1	7G4314401GC	HARNESS ASSY FACIA RHD MANUAL	7G4314401GC HARNESS ASSY FACIA RHD MANUAL 07MY	$720.63	1
1	7G4314401EC	HARNESS ASSY FACIA RHD AUTO	7G4314401EC HARNESS ASSY FACIA RHD AUTO 07MY	$2,844.09	1
1	7G4314401FC	HARNESS ASSY FACIA LHD AUTO	7G4314401FC HARNESS ASSY FACIA LHD AUTO 07MY	$849.34	1
1	4G4314401HA	HARNESS ASSY FACIA LHD MANUAL	4G4314401HA HARNESS ASSY FACIA LHD MANUAL	$723.13	1
1	4G4314401GA	HARNESS ASSY FACIA RHD MANUAL	4G4314401GA HARNESS ASSY FACIA RHD MANUAL	$797.37	1
1	4G4314401EA	HARNESS ASSY FACIA RHD AUTO	4G4314401EA HARNESS ASSY FACIA RHD AUTO	$852.98	1
1	4G4314401FA	HARNESS ASSY FACIA LHD AUTO	4G4314401FA HARNESS ASSY FACIA LHD AUTO	$860.36	1
2	8G4314B079EB	LHD CENTRE STACK HARNESS	8G4314B079EB LHD CENTRE STACK HARNESS 08MY From (V) A09110 +	$400.39	1
2	8G4314B079CB	RHD CENTRE STACK HARNESS	8G4314B079CB RHD CENTRE STACK HARNESS 08MY From (V) A09110 +	$382.16	1
2	8G4314B079DB	LHD CENTRE STACK HARNESS	8G4314B079DB LHD CENTRE STACK HARNESS 08MY From (V) A09110 +	$382.16	1
2	7G4314B079EB	LHD CENTRE STACK HARNESS	7G4314B079EB LHD CENTRE STACK HARNESS 07MY	$446.11	1
2	7G4314B079CB	RHD CENTRE STACK HARNESS	7G4314B079CB RHD CENTRE STACK HARNESS 07MY	$417.81	1
2	7G4314B079DB	LHD CENTRE STACK HARNESS	7G4314B079DB LHD CENTRE STACK HARNESS 07MY	$423.67	1
2	4G4314B079CA	RHD CENTRE STACK HARNESS	4G4314B079CA RHD CENTRE STACK HARNESS	$474.79	1
2	4G4314B079DA	LHD CENTRE STACK HARNESS	4G4314B079DA LHD CENTRE STACK HARNESS	$463.60	1
3	8G4314C007AA	PHONE LINK RIGHT HAND DRIVE	8G4314C007AA PHONE LINK RIGHT HAND DRIVE 08MY From (V) A09110 +	$414.72	1
3	8G4314C007BA	PHONE LINK LEFT HAND DRIVE	8G4314C007BA PHONE LINK LEFT HAND DRIVE 08MY From (V) A09110 +	$431.34	1
3	4G4314C007AD	PHONE LINK RIGHT HAND DRIVE	4G4314C007AD PHONE LINK RIGHT HAND DRIVE 07MY	$174.34	1
3	4G4314C007BD	PHONE LINK LEFT HAND DRIVE	4G4314C007BD PHONE LINK LEFT HAND DRIVE 07MY	$185.43	1
4	4G4318C951HB	Media Oriented System transport (MOST), Service Loop	4G4318C951HB Media Oriented System transport (MOST), Service Loop	$20.43	1
5	6G3314A457AA	COVER DIAGNOSTIC CONNECTOR	6G3314A457AA COVER DIAGNOSTIC CONNECTOR	$10.40	1
6	8D3314401GD	HARNESS ASSY FACIA RHD	8D3314401GD HARNESS ASSY FACIA RHD 09MY	$779.15	1
6	8D3314401HD	HARNESS ASSY FACIA LHD	8D3314401HD HARNESS ASSY FACIA LHD 09MY	$855.60	1
7	9G4314B079AE	CENTRE STACK HARNESS	9G4314B079AE CENTRE STACK HARNESS 09MY	$492.02	1
7	8D3314B079AF	CENTRE STACK HARNESS	8D3314B079AF CENTRE STACK HARNESS 09MY	$450.23	1
8	8D339137BA	Harness Assembly, Passive Anti Theft System (PATS) Link	8D339137BA Harness Assembly, Passive Anti Theft System (PATS) Link 09MY	$34.63	1
