Aston Martin DB7 Vantage - Rear Brakes

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
28-125037-AA-PK ASSY GROOVED DISC(2) $905.98 To Order
30-122656-AA ASSY DRUM PARKBRAKE RH $568.31 To Order
30122657AA Drum, parking brake, LH GT upgrade $430.29 To Order
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
28-122157-AC ASSY CALIPER REAR LH $790.55 To Order
28-122156-AC ASSY CALIPER REAR RH $790.55 To Order
28-122157-AD ASSY CALIPER REAR LH $790.55 To Order
...and 13 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
28-85455 REAR BRAKE PAD SET $386.24 To Order
Photo Part No Description Price (each) Stock
28-85759-PK Brake Pads Rear $699.78 IN STOCK
28-85455 REAR BRAKE PAD SET $386.24 To Order
28-85455 REAR BRAKE PAD SET $386.24 To Order
Photo Part No Description Price (each) Stock
697797 BOLT M10 x 28 HEX FLANGE HEAD GRD 12.9 PATCH $36.13 To Order
28-85946 SCREW M10x1.5x32 HEX FLG HD $16.56 To Order
Photo Part No Description Price (each) Stock
33-122160-AB ASSY BRAKE HOSE REAR $130.39 To Order
Photo Part No Description Price (each) Stock
33-81080 NUT M10 x 1 $1.01 To Order
Photo Part No Description Price (each) Stock
697253 WASHER M10 S/PROOF INT $0.44 To Order
Photo Part No Description Price (each) Stock
33120976AA Brake pipe, across axle to RH RR flexi $15.03 To Order
33-83932 BRAKE PIPE CON TEE TO LHRF $14.82 To Order
33-120712-AB BRAKE PIPE RHD U/FLOOR TO LH REAR $20.75 To Order
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
28-85456 CLIP & PIN SET REAR CALIPER $47.88 To Order
28-85454 BLEED SCREW &CAP SET $7.34 To Order
28-85457 BOOT SET (2) 28 REAR CALIPER $10.84 To Order
...and 3 more part variants. See table on right for more details.

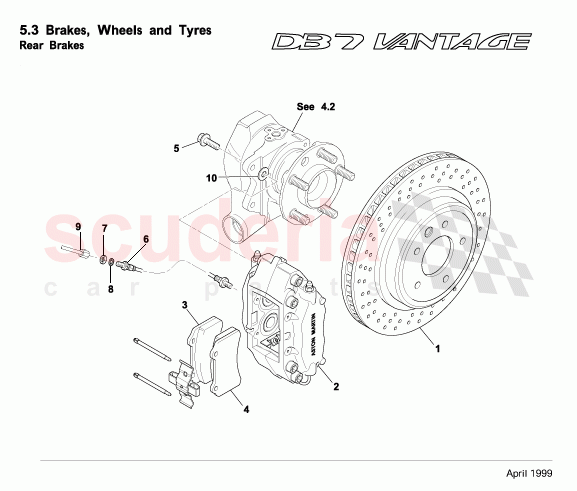

Rear Brakes of Aston Martin Aston Martin DB7 Vantage Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 28-125037-AA-PK
ASSY GROOVED DISC(2)
Optional, standard on GT 		$905.98 2
TO
1 30-122656-AA
ASSY DRUM PARKBRAKE RH
See section 5.4 		$568.31 2
TO
1 30122657AA
Drum, parking brake, LH GT upgrade
See section 5.4 		$430.29 2
TO
1 30-125246-AA
ASSY DRUM PARKBRAKE RH - GT
See section 5.4 		$602.11 2
TO
1 30-125245-AA
ASSY DRUM PARKBRAKE LH - GT
See section 5.4 		$602.11 2
TO

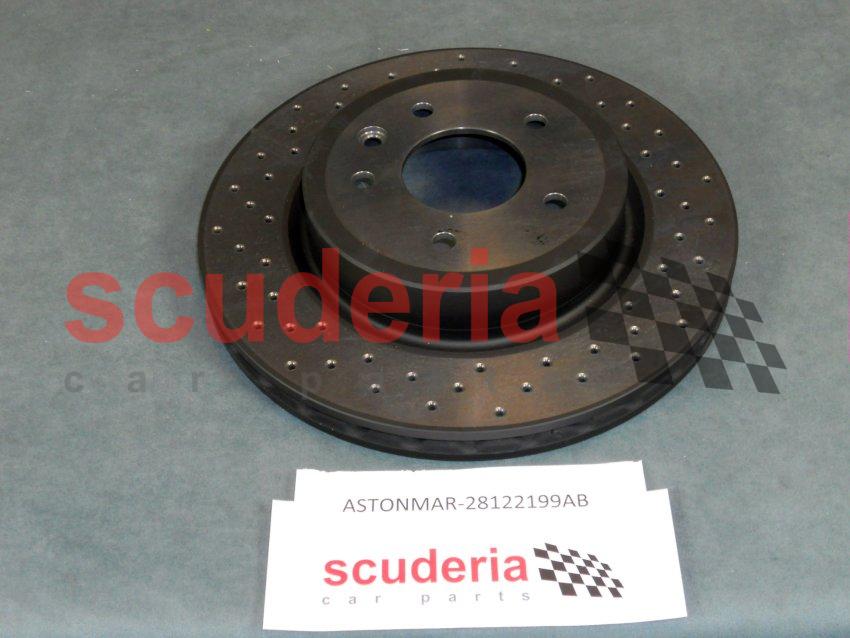

1 28-122199-AB
Brake Disc Rear Ventilated
IN STOCK 		$439.44 2
IN
2 28-122157-AC
ASSY CALIPER REAR LH
From (V) 300832 Up to (V) 301457 		$790.55 1
TO
2 28-122156-AC
ASSY CALIPER REAR RH
From (V) 300832 Up to (V) 301457 		$790.55 1
TO
2 28-122157-AD
ASSY CALIPER REAR LH
From (V) 301458 Up to (V) 402884 		$790.55 1
TO
2 28-122156-AD
ASSY CALIPER REAR RH
From (V) 301458 Up to (V) 402884 		$790.55 1
TO
2 28-122157-AB
ASSY CALIPER REAR LH
Up to (V) 300831 		$610.50 1
TO
2 28-122156-AB
ASSY CALIPER REAR RH
Up to (V) 300831 		$610.50 1
TO
2 28-86591
BRAKE CALIPER RR LH SILVER ONE PIECE BRAKE PAD TEXTAR
From (V) 402885 		$406.48 1
TO
2 28-86590
BRAKE CALIPER RR RH SILVER ONE PIECE BRAKE PAD TEXTAR
From (V) 402885 		$406.48 1
TO
2 28-86583
BRAKE CALIPER RR LH BLACK - ONE PIECE
From (V) 402885 		$406.48 1
TO
2 28-86582
BRAKE CALIPER RR RH BLACK - ONE PIECE
From (V) 402885 		$406.48 1
TO
2 28-86587
BRAKE CALIPER RR LH GREY - ONE PIECE
From (V) 402885 		$406.48 1
TO
2 28-86589
BRAKE CALIPER RR LH GOLD - ONE PIECE
From (V) 402885 		$406.48 1
TO
2 28-86585
BRAKE CALIPER RR LH RED - ONE PIECE
From (V) 402885 		$406.48 1
TO
2 28-86586
BRAKE CALIPER RR RH GREY - ONE PIECE
From (V) 402885 		$406.48 1
TO
2 28-86588
BRAKE CALIPER RR RH GOLD - ONE PIECE
From (V) 402885 		$406.48 1
TO
2 28-86584
BRAKE CALIPER RR RH RED - ONE PIECE
From (V) 402885 		$406.48 1
TO

28-85455

REAR BRAKE PAD SET

from $386.24

4 28-85759-PK
Brake Pads Rear
From (V) 301458 May be used, in conjunction with front pad set 28-85758, to replace early/existing pads - BUT MUST BE FITTED IN VEHICLE SETS
IN STOCK 		$699.78 1
IN
5 697797
BOLT M10 x 28 HEX FLANGE HEAD GRD 12.9 PATCH
Up to (V) 402884 		$36.13 4
TO
5 28-85946
SCREW M10x1.5x32 HEX FLG HD
From (V) 402885 		$16.56 4
TO
6 33-122160-AB
ASSY BRAKE HOSE REAR 		$130.39 2
TO
7 33-81080
NUT M10 x 1 		$1.01 2
TO
8 697253
WASHER M10 S/PROOF INT 		$0.44 2
TO
9 33120976AA
Brake pipe, across axle to RH RR flexi
RHD 		$15.03 1
TO
9 33-83932
BRAKE PIPE CON TEE TO LHRF
LHD 		$14.82 1
TO
9 33-120712-AB
BRAKE PIPE RHD U/FLOOR TO LH REAR
RHD 		$20.75 1
TO
9 33-120713-AB
BRAKE PIPE LHD U/FLOOR TO LH REAR
LHD 		$20.53 1
TO
9 33-120714-AB
BRAKE PIPE RHD U/FLOOR TO RH REAR
RHD 		$50.67 1
TO
9 33-120715-AB
BRAKE PIPE LHD U/FLOOR TO RH REAR
LHD 		$21.39 1
TO
10 28-85456
CLIP & PIN SET REAR CALIPER 		$47.88 2
TO
10 28-85454
BLEED SCREW &CAP SET 		$7.34 2
TO
10 28-85457
BOOT SET (2) 28 REAR CALIPER 		$10.84 2
TO
10 28-85458
BOOT SET (2) 30 REAR CALIPER 		$10.84 2
TO
10 23-80898
WASHER 15/32inIDx 7/8inODx 1/32in thk 		$2.28 -
TO
10 28-80270
SHIM 		$7.82 -
TO
