Aston Martin DB7 Vantage - Front Brakes

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
28125036AA DISC GROOVED FRONT - GT $529.53 To Order

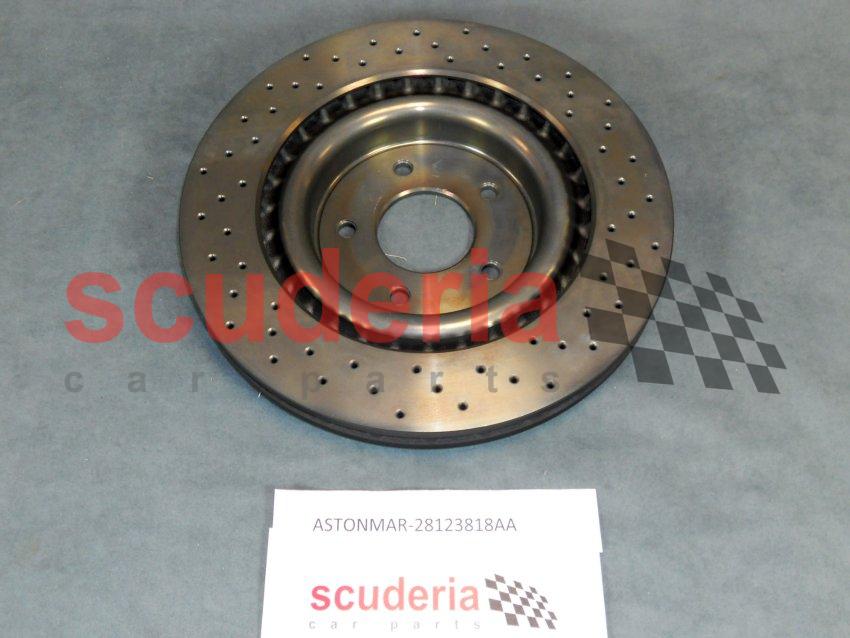

28123818AA BRAKE DISC FRONT VENTILATED $480.25 IN STOCK
28123818AA BRAKE DISC FRONT VENTILATED $480.25 IN STOCK
Photo Part No Description Price (each) Stock
28122141AD ASSY CALIPER FRONT LH $760.39 To Order
28122140AD ASSY CALIPER FRONT RH $919.35 To Order
28122141AD ASSY CALIPER FRONT LH $760.39 To Order
...and 23 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
2885450 FRONT BRAKE PAD SET DB7 VANTAGE ONLY $453.72 IN STOCK
Photo Part No Description Price (each) Stock
2886280PK BRAKE PADS FRONT $731.52 IN STOCK
2886069PK BRAKE PAD SET(4)FRT $1,089.22 To Order
2885450 FRONT BRAKE PAD SET DB7 VANTAGE ONLY $453.72 IN STOCK
Photo Part No Description Price (each) Stock
28123941AA BOLT DURLOC M12x35 $10.45 To Order
28123452AA BOLT HEX HD M12x50 12.9 GRD(SUPPLIER PART U190670) $17.73 To Order
697790 LOCKING BOLT $7.39 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
33122161AB ASSY BRAKE HOSE FRNT $252.47 To Order
Photo Part No Description Price (each) Stock
697253 WASHER M10 S/PROOF INT $0.44 To Order
Photo Part No Description Price (each) Stock
3381076 CLIP $2.48 To Order
3381080 NUT M10 x 1 $1.01 To Order
Photo Part No Description Price (each) Stock
2380898 WASHER 15/32inIDx 7/8inODx 1/32in thk $2.28 To Order
2880270 SHIM $7.82 To Order
Photo Part No Description Price (each) Stock
2885451 CLIP & PIN KIT- FRONT BRAKE PADS $65.10 To Order
Photo Part No Description Price (each) Stock
2885452 BOOT SET (2) 40 FRONT CALIPER $13.37 To Order
2885453 BOOT SET (2) 44 FRONT CALIPER $13.37 To Order
Photo Part No Description Price (each) Stock
2885454 BLEED SCREW &CAP SET $7.34 To Order
Photo Part No Description Price (each) Stock
2885822 ANTI-SQUEAL SHIM KIT SELF-ADHESIVE $23.74 To Order
View All

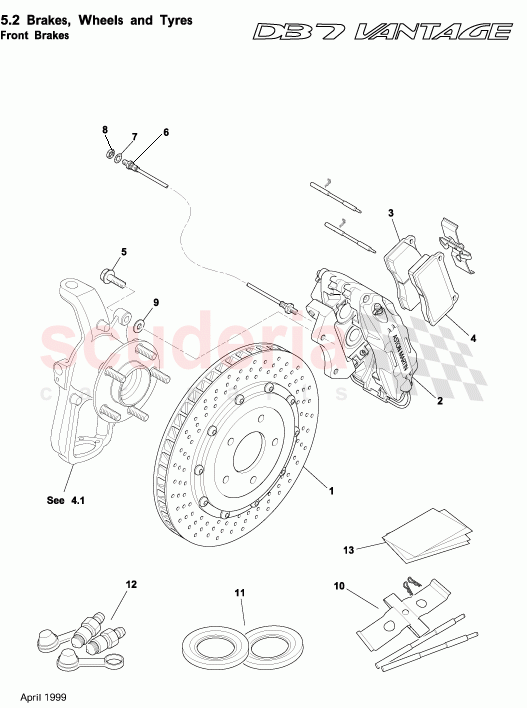

Front Brakes of Aston Martin Aston Martin DB7 Vantage Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 28125036AA
DISC GROOVED FRONT - GT
Optional, standard on GT 		$529.53 2
1 28123818AA
BRAKE DISC FRONT VENTILATED
Up to (V) 300831
IN STOCK 		$480.25 1
1 28123818AA
BRAKE DISC FRONT VENTILATED
From (V) 300832
IN STOCK 		$480.25 2
2 28122141AD
ASSY CALIPER FRONT LH
From (V) 300832 Up to (V) 301457 		$760.39 1
2 28122140AD
ASSY CALIPER FRONT RH
From (V) 300832 Up to (V) 301457 		$919.35 1
2 28122141AD
ASSY CALIPER FRONT LH
From (V) 301458 Up to (V) 402884 		$760.39 1
2 28122140AD
ASSY CALIPER FRONT RH
From (V) 301458 Up to (V) 402884 		$919.35 1
2 28125039AA
BRAKE CALIPER FRT LH SILVER - GT
Optional, standard on GT 		$1,023.07 1
2 28125038AA
BRAKE CALIPER FRT RH SILVER - GT
Optional, standard on GT 		$1,023.07 1
2 28125527AA
BRAKE CALIPER FRONT L/H BLACK
Optional, standard on GT 		$812.92 1
2 28125526AA
BRAKE CALIPER FRONT R/H BLACK
Optional, standard on GT 		$812.92 1
2 28125525AA
BRAKE CALIPER FRONT L/H GREY
Optional, standard on GT 		$840.96 1
2 28125524AA
BRAKE CALIPER FRONT R/H GREY
Optional, standard on GT 		$840.96 1
2 28125529AA
BRAKE CALIPER FRONT LH GOLD
Optional, standard on GT 		$840.96 1
2 28125528AA
BRAKE CALIPER FRONT RH GOLD
Optional, standard on GT 		$840.96 1
2 28125531AA
BRAKE CALIPER FRONT L/H RED
Optional, standard on GT 		$840.96 1
2 28125530AA
BRAKE CALIPER FRONT R/H RED
Optional, standard on GT 		$840.96 1
2 28122141AB
ASSY CALIPER FRONT LH
Up to (V) 300831 		$724.18 1
2 28122140AD
ASSY CALIPER FRONT RH
Up to (V) 300831 		$919.35 1
2 2886581
BRAKE CALIPER FRT LH SILVER ONE PIECE BRAKE PAD TEXTAR
From (V) 402885 		$704.66 1
2 2886580
BRAKE CALIPER FRT RH SILVER ONE PIECE BRAKE PAD TEXTAR
From (V) 402885 		$704.66 1
2 2886573
BRAKE CALIPER FRH LH BLACK - ONE PIECE
From (V) 402885 		$704.66 1
2 2886572
BRAKE CALIPER FRT RH BLACK - ONE PIECE
From (V) 402885 		$704.66 1
2 2886577
BRAKE CALIPER FRT LH GRAY - ONE PIECE
From (V) 402885 		$555.08 1
2 2886576
BRAKE CALIPER FRT RH GRAY - ONE PIECE
From (V) 402885 		$704.66 1
2 2886579
BRAKE CALIPER FRT LH GOLD - ONE PIECE
From (V) 402885 		$704.66 1
2 2886578
BRAKE CALIPER FRT RH GOLD - ONE PIECE
From (V) 402885 		$704.66 1
2 2886575
BRAKE CALIPER FRT LH RED - ONE PIECE
From (V) 402885 		$704.66 1
2 2886574
BRAKE CALIPER FRT RH RED - ONE PIECE
From (V) 402885 		$704.66 1
3 2885450
FRONT BRAKE PAD SET DB7 VANTAGE ONLY
Up to (V) 301457
IN STOCK 		$453.72 1
4 2886280PK
BRAKE PADS FRONT
From (V) 301458 May be used, in conjunction with rear pad set 28-85759, to replace early/existing pads - BUT MUST BE FITTED IN VEHICLE SETS
IN STOCK 		$731.52 1
4 2886069PK
BRAKE PAD SET(4)FRT
Optional, standard on GT 		$1,089.22 4
4 2885450
FRONT BRAKE PAD SET DB7 VANTAGE ONLY
Up to (V) 301457
IN STOCK 		$453.72 1
5 28123941AA
BOLT DURLOC M12x35
From (V) 300832 Up to (V) 402884 		$10.45 4
5 28123452AA
BOLT HEX HD M12x50 12.9 GRD(SUPPLIER PART U190670)
Up to (V) 300831 		$17.73 2
5 697790
LOCKING BOLT
Up to (V) 300831 		$7.39 2
5 2885947
SCREW M14x1.5x45 HEX FLG 10.9
From (V) 402885 		$24.08 4
6 33122161AB
ASSY BRAKE HOSE FRNT 		$252.47 2
7 697253
WASHER M10 S/PROOF INT 		$0.44 2
8 3381076
CLIP 		$2.48 2
8 3381080
NUT M10 x 1 		$1.01 2
9 2380898
WASHER 15/32inIDx 7/8inODx 1/32in thk 		$2.28 -
9 2880270
SHIM 		$7.82 -
10 2885451
CLIP & PIN KIT- FRONT BRAKE PADS 		$65.10 2
11 2885452
BOOT SET (2) 40 FRONT CALIPER 		$13.37 2
11 2885453
BOOT SET (2) 44 FRONT CALIPER 		$13.37 2
12 2885454
BLEED SCREW &CAP SET 		$7.34 2
13 2885822
ANTI-SQUEAL SHIM KIT SELF-ADHESIVE 		$23.74 1
