Main Body Wiring

Aston Martin Cygnet

Find Your Part

Aston Martin Cygnet - Main Body Wiring

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
82161-74110 Harness, Floor, RHD $1,485.22 To Order
Photo Part No Description Price (each) Stock
77333-74010 Clamp, Fuel Lid Lock Control Cable, No.1 Enquire To Order
Photo Part No Description Price (each) Stock
77333-74020 Clamp, Fuel Lid Lock Control Cable, No.2, RHD Enquire To Order
Photo Part No Description Price (each) Stock
90980-04189 Condenser, Radio Setting Enquire To Order
Photo Part No Description Price (each) Stock
82171-74030 Wire, Roof, No.1 $55.45 To Order
Photo Part No Description Price (each) Stock
82413-74010 Wire, Fuel Tank Enquire To Order
Photo Part No Description Price (each) Stock
90119-06915 Screw, RHD $1.28 To Order

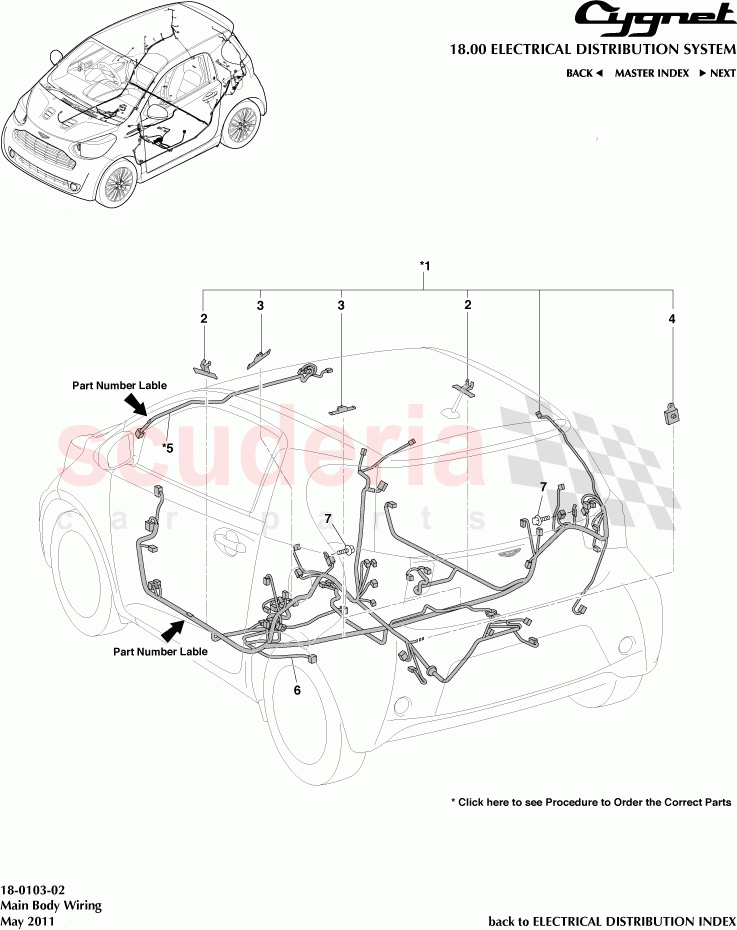

Main Body Wiring of Aston Martin Aston Martin Cygnet Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- 82161-74111
Harness, Floor, RHD
*From 08/2010 		$900.98 1
TO
- 82161-74130
Harness, Floor, LHD 		$955.28 1
TO
- 82171-74031
Wire, Roof, No.1
*From 05/2010 		- 1
PE
 Enquire
1 82161-74110
Harness, Floor, RHD
*To 08/2010 		$1,485.22 1
TO
2 77333-74010
Clamp, Fuel Lid Lock Control Cable, No.1 		- 2
PE
 Enquire
3 77333-74020
Clamp, Fuel Lid Lock Control Cable, No.2, RHD 		- 2
PE
 Enquire
4 90980-04189
Condenser, Radio Setting 		- 1
PE
 Enquire
5 82171-74030
Wire, Roof, No.1
*To 05/2010 		$55.45 1
TO
6 82413-74010
Wire, Fuel Tank 		- 1
PE
 Enquire
7 90119-06915
Screw, RHD 		$1.28 2
TO
