Aston Martin Cygnet - HVAC Unit

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
87010-74030 Unit Assy, Air Conditioner, RHD Enquire To Order
Photo Part No Description Price (each) Stock
87200-74020 Accessory Assy, Heater, RHD Enquire To Order
Photo Part No Description Price (each) Stock
87103-74021 Motor Sub-Assy, Blower W/ Fan, RHD $290.97 To Order
Photo Part No Description Price (each) Stock
87107-74010 Unit Sub-Assy, Heater Radiator Enquire To Order
Photo Part No Description Price (each) Stock
87237-74010 Cover, Cooler No.1 Enquire To Order
Photo Part No Description Price (each) Stock
88501-74010 Evaporator Sub-Assy, Cooler, No.1 $639.21 To Order
Photo Part No Description Price (each) Stock
88515-74010 Valve, Cooler Expansion $259.11 To Order
Photo Part No Description Price (each) Stock
87106-74030 Servo Sub-Assy, Damper, No.1, RHD Enquire To Order
Photo Part No Description Price (each) Stock
87106-74020 Servo Sub-Assy, Damper, (for mode) $192.74 To Order
Photo Part No Description Price (each) Stock
87106-74010 Servo Sub-Assy, Damper, (for airmix) Enquire To Order
Photo Part No Description Price (each) Stock
82212-74010 Harness Assy, Air Conditioner, RHD Enquire To Order
Photo Part No Description Price (each) Stock
88620-74010 Thermistor, Cooler, No.1 Enquire To Order
Photo Part No Description Price (each) Stock
88568-YZZ01 AIR FILTER $17.98 To Order
Photo Part No Description Price (each) Stock
88548-74010 Case, Air Filter $6.18 To Order
Photo Part No Description Price (each) Stock
87128-74010 Grommet, Heater $11.82 To Order
Photo Part No Description Price (each) Stock
87245-74101 Hose, Heater Water, Outlet, AUTO Enquire To Order
Photo Part No Description Price (each) Stock
87245-74110 Hose, Heater Water, Inlet, MAN Enquire To Order
Photo Part No Description Price (each) Stock
88505-74011 Duct Sub-Assy, Air Conditioner Enquire To Order
Photo Part No Description Price (each) Stock
88650-74031 Amplifier Assy, Air Conditioner-Front Air Con-AUTO Enquire To Order
Photo Part No Description Price (each) Stock
90467-07214 Clip, Front Fender Liner $1.79 To Order
Photo Part No Description Price (each) Stock
90179-06282 Nut $1.79 To Order
Photo Part No Description Price (each) Stock
90159-60383 Screw W/Washer Tapping $1.71 To Order
Photo Part No Description Price (each) Stock
90159-70003 Screw, W/Washer, RHD $1.69 To Order
Photo Part No Description Price (each) Stock
87710-74030 Quick Heater Assy, COLD AREA SPEC Enquire To Order

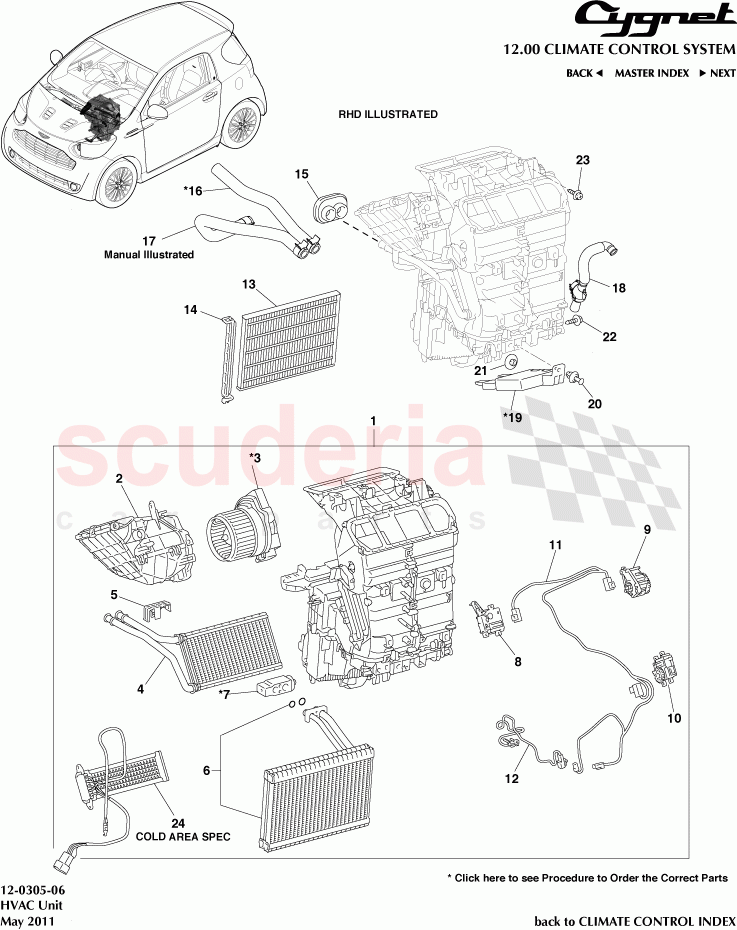

HVAC Unit of Aston Martin Aston Martin Cygnet Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- 87010-74080
Unit Assy, Air Conditioner, LHD 		$2,701.46 1
TO
- 87010-74100
Unit Assy, Air Conditioner, COLD AREA SPEC, LHD 		- 1
PE
 Enquire
- 87200-74040
Accessory Assy, Heater, LHD 		- 1
PE
 Enquire
- 87103-74040
Motor Sub-Assy, Blower W/ Fan, LHD
*11/2008 to 12/2010 		- 1
PE
 Enquire
- 87103-74041
Motor Sub-Assy, Blower W/ Fan, LHD
*From 01/2011 		- 1
PE
 Enquire
- 88515-68010
Valve, Cooler Expansion
*From 10/2010 		- 1
PE
 Enquire
- 87106-74040
Servo Sub-Assy, Damper, No.1, LHD 		$189.68 1
TO
- 82212-74020
Harness Assy, Air Conditioner, LHD 		$248.02 1
TO
- 87245-74150
Hose, Heater Water, Outlet, MAN
*From 03/2011 		- 1
PE
 Enquire

87245-74101

HOSE, HEATER WATER, OUTLET, AUTO

 -
- 87245-74091
Hose, Heater Water, Inlet, AUTO 		- 1
PE
 Enquire
- 88650-74032
Amplifier Assy, Air Conditioner-Front Air Con-AUTO
*From 11/2010 		- 1
PE
 Enquire
- 88650-74041
Amplifier Assy, Air Conditioner-Front Air Con-Auto, COLD CLIMATE SPEC
*05/2009 to 10/2010 		- 1
PE
 Enquire
- 88650-74042
Amplifier Assy, Air Conditioner-Front Air Con-Auto, COLD CLIMATE SPEC
*From 11/2010 		- 1
PE
 Enquire
1 87010-74030
Unit Assy, Air Conditioner, RHD 		- 1
PE
 Enquire
2 87200-74020
Accessory Assy, Heater, RHD 		- 1
PE
 Enquire
3 87103-74021
Motor Sub-Assy, Blower W/ Fan, RHD 		$290.97 1
TO
4 87107-74010
Unit Sub-Assy, Heater Radiator 		- 1
PE
 Enquire
5 87237-74010
Cover, Cooler No.1 		- 1
PE
 Enquire
6 88501-74010
Evaporator Sub-Assy, Cooler, No.1 		$639.21 1
TO
7 88515-74010
Valve, Cooler Expansion
*11/2008 to 10/2010 		$259.11 1
TO
8 87106-74030
Servo Sub-Assy, Damper, No.1, RHD 		- 1
PE
 Enquire
9 87106-74020
Servo Sub-Assy, Damper, (for mode) 		$192.74 1
TO
10 87106-74010
Servo Sub-Assy, Damper, (for airmix) 		- 1
PE
 Enquire
11 82212-74010
Harness Assy, Air Conditioner, RHD 		- 1
PE
 Enquire
12 88620-74010
Thermistor, Cooler, No.1 		- 1
PE
 Enquire
13 88568-YZZ01
AIR FILTER 		$17.98 1
TO
14 88548-74010
Case, Air Filter 		$6.18 1
TO
15 87128-74010
Grommet, Heater 		$11.82 1
TO
17 87245-74110
Hose, Heater Water, Inlet, MAN 		- 1
PE
 Enquire
18 88505-74011
Duct Sub-Assy, Air Conditioner 		- 1
PE
 Enquire
19 88650-74031
Amplifier Assy, Air Conditioner-Front Air Con-AUTO
*05/2009 to 10/2010 		- 1
PE
 Enquire
20 90467-07214
Clip, Front Fender Liner 		$1.79 1
TO
21 90179-06282
Nut 		$1.79 1
TO
22 90159-60383
Screw W/Washer Tapping 		$1.71 1
TO
23 90159-70003
Screw, W/Washer, RHD 		$1.69 2
TO
24 87710-74030
Quick Heater Assy, COLD AREA SPEC 		- 1
PE
 Enquire
