Name: Repair parts optical fibre cable
Rating: 4.3 (1 reviews)

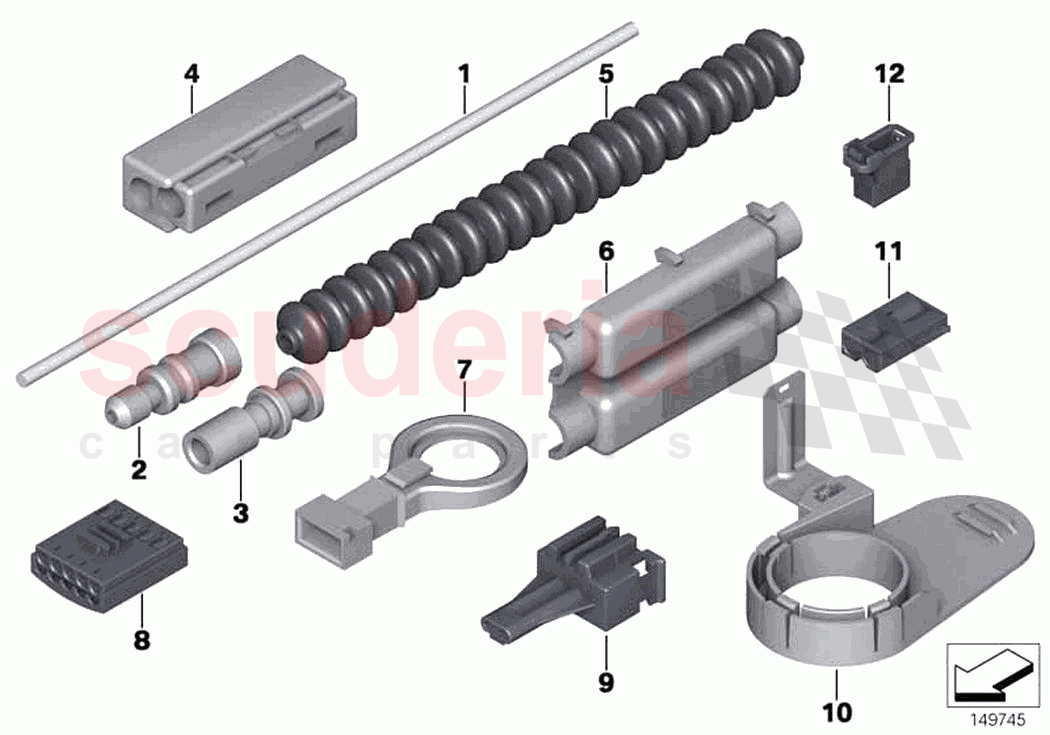

View the exploded parts diagram to find the part you are looking for

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

TO ORDER

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	61 12 0142318	Optical waveguide	$41.08	To Order

Photo	Part No	Description	Price (each)	Stock
	61136905233	Optical waveguide, pin contact	$5.59	To Order

Photo	Part No	Description	Price (each)	Stock
	61136906554	Optical waveguide, socket contact	$9.73	To Order

Photo	Part No	Description	Price (each)	Stock
	61 13 6906535	Optical waveguide, connector	$5.66	To Order

Photo	Part No	Description	Price (each)	Stock
	61 13 6918242	Metal tube, corrugated	$6.08	To Order

Photo	Part No	Description	Price (each)	Stock
	61 13 6919111	Envelope f optical waveguide	$10.73	To Order

Photo	Part No	Description	Price (each)	Stock
	61 13 6917541	Diagnosis interface MOST	$33.19	To Order

Photo	Part No	Description	Price (each)	Stock
	61 13 6918277	Inline-connector for optical fibre cable	$7.77	To Order

Photo	Part No	Description	Price (each)	Stock
	61 13 6931507	Diagnosis interface MOST	$33.19	To Order

Photo	Part No	Description	Price (each)	Stock
	61 13 6918291	Optical waveguide, deflection pulley	$10.00	To Order

Photo	Part No	Description	Price (each)	Stock
	61 13 8387214	Envelope f optical waveguide	$9.49	To Order

Photo	Part No	Description	Price (each)	Stock
	61 13 6917978	Optical waveguide, connector housing	$2.39	To Order

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Key
1	61 12 0142318	Optical waveguide	61 12 0142318 Optical waveguide L=7000MM	$41.08	-	TO
2	61136905233	Optical waveguide, pin contact	61136905233 Optical waveguide, pin contact	$5.59	-	TO
3	61136906554	Optical waveguide, socket contact	61136906554 Optical waveguide, socket contact	$9.73	-	TO
4	61 13 6906535	Optical waveguide, connector	61 13 6906535 Optical waveguide, connector	$5.66	-	TO
5	61 13 6918242	Metal tube, corrugated	61 13 6918242 Metal tube, corrugated	$6.08	-	TO
6	61 13 6919111	Envelope f optical waveguide	61 13 6919111 Envelope f optical waveguide	$10.73	-	TO
7	61 13 6917541	Diagnosis interface MOST	61 13 6917541 Diagnosis interface MOST	$33.19	-	TO
8	61 13 6918277	Inline-connector for optical fibre cable	61 13 6918277 Inline-connector for optical fibre cable 5 POL.	$7.77	-	TO
9	61 13 6931507	Diagnosis interface MOST	61 13 6931507 Diagnosis interface MOST	$33.19	-	TO
10	61 13 6918291	Optical waveguide, deflection pulley	61 13 6918291 Optical waveguide, deflection pulley	$10.00	-	TO
11	61 13 8387214	Envelope f optical waveguide	61 13 8387214 Envelope f optical waveguide 2POL. /SCHWARZ	$9.49	-	TO
12	61 13 6917978	Optical waveguide, connector housing	61 13 6917978 Optical waveguide, connector housing	$2.39	-	TO

Repair Parts Optical Fibre Cable

Rolls Royce Wraith RR5(2017-2023)
