Name: Rear window shelf
Rating: 5.0 (1 reviews)

Diagram
INFO

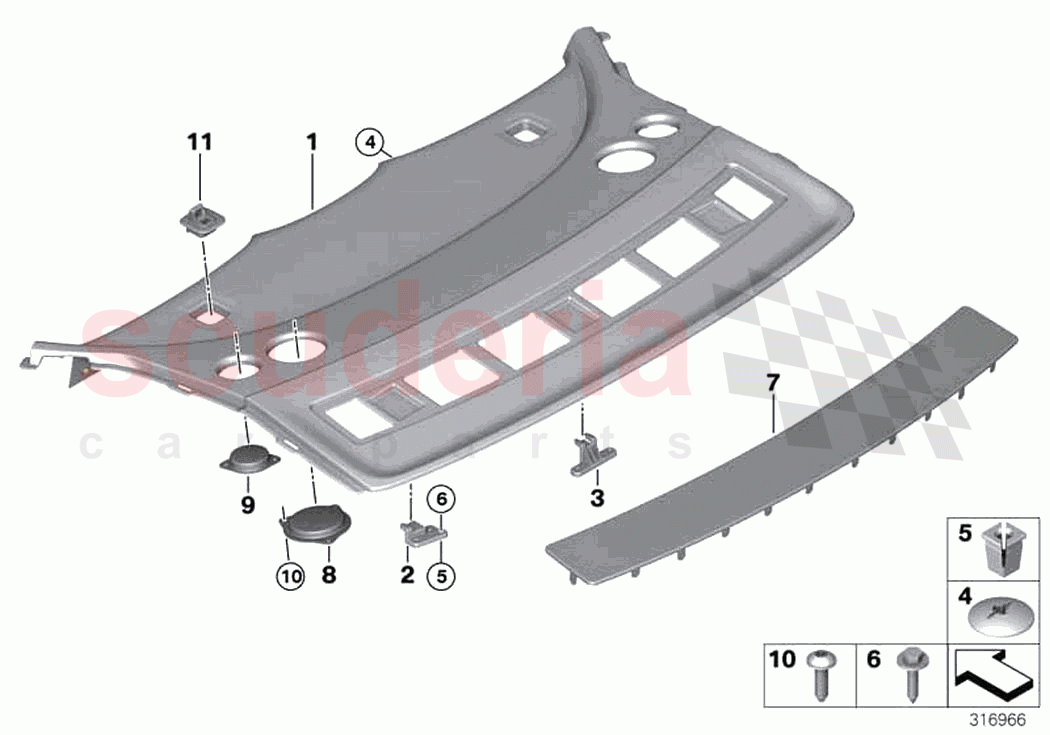

Rear window shelf of Rolls Royce Rolls Royce Wraith RR5(2017-2023)

Rolls Royce Wraith RR5(2017-2023) - Rear window shelf

View the exploded parts diagram to find the part you are looking for

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

TO ORDER

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	51647330585	Rear window shelf	$5,191.15	To Order

Photo	Part No	Description	Price (each)	Stock
	51 46 9165423	Holder, mounting, storage shelf, left	$126.47	To Order
	51 46 9165424	Holder, mounting, storage shelf, right	$126.47	To Order

Photo	Part No	Description	Price (each)	Stock
	51 46 9165426	Holder, mounting, storage shelf, middle	$126.47	To Order

Photo	Part No	Description	Price (each)	Stock
	51 48 8126849	Push-button, grey	$0.38	To Order

Photo	Part No	Description	Price (each)	Stock
	51 71 7154520	Expanding nut	$1.04	To Order

Photo	Part No	Description	Price (each)	Stock
	07 11 9905241	Hex head screw with washer	$0.88	To Order

Photo	Part No	Description	Price (each)	Stock
	51467324103	Ventilation grille, rear window shelf	$400.26	To Order

Photo	Part No	Description	Price (each)	Stock
	51 41 7220237	Speaker cover, mid-range speaker	$261.49	To Order
	51417351813	Speaker cover, mid-range speaker	$333.34	To Order

Photo	Part No	Description	Price (each)	Stock
	51 41 9158080	Speaker cover, tweeter	$212.90	To Order
	51417351878	Speaker cover, tweeter	$212.90	To Order

Photo	Part No	Description	Price (each)	Stock
	07 14 6963839	Screw	$1.62	To Order

Photo	Part No	Description	Price (each)	Stock
	72147040410	Support, child seat	$42.15	To Order
	72147255423	Support, child seat	$40.24	To Order
	72147255424	Support, child seat	$40.24	To Order

...and 1 more part variants. See table on right for more details.

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Key
1	51647330585	Rear window shelf	51647330585 Rear window shelf COLOUR NEUTRAL	$5,191.15	1	TO
2	51 46 9165423	Holder, mounting, storage shelf, left	51 46 9165423 Holder, mounting, storage shelf, left	$126.47	1	TO
2	51 46 9165424	Holder, mounting, storage shelf, right	51 46 9165424 Holder, mounting, storage shelf, right	$126.47	1	TO
3	51 46 9165426	Holder, mounting, storage shelf, middle	51 46 9165426 Holder, mounting, storage shelf, middle	$126.47	1	TO
4	51 48 8126849	Push-button, grey	51 48 8126849 Push-button, grey	$0.38	4	TO
5	51 71 7154520	Expanding nut	51 71 7154520 Expanding nut ST4,8MM	$1.04	6	TO
6	07 11 9905241	Hex head screw with washer	07 11 9905241 Hex head screw with washer ST 4,8X25 ZNS3	$0.88	6	TO
7	51467324103	Ventilation grille, rear window shelf	51467324103 Ventilation grille, rear window shelf COLOUR NEUTRAL	$400.26	1	TO
8	51 41 7220237	Speaker cover, mid-range speaker	51 41 7220237 Speaker cover, mid-range speaker	$261.49	2	TO
8	51417351813	Speaker cover, mid-range speaker	51417351813 Speaker cover, mid-range speaker	$333.34	2	TO
9	51 41 9158080	Speaker cover, tweeter	51 41 9158080 Speaker cover, tweeter	$212.90	2	TO
9	51417351878	Speaker cover, tweeter	51417351878 Speaker cover, tweeter CHROME	$212.90	2	TO
10	07 14 6963839	Screw	07 14 6963839 Screw 4X14MM	$1.62	6	TO
11	72147040410	Support, child seat	72147040410 Support, child seat SCHWARZ	$42.15	2	TO
11	72147255423	Support, child seat	72147255423 Support, child seat BEIGE 3	$40.24	2	TO
11	72147255424	Support, child seat	72147255424 Support, child seat CREAMBEIGE	$40.24	2	TO
11	72147255430	Support, child seat	72147255430 Support, child seat GRAU 60	$40.24	2	TO

Rear Window Shelf

Rolls Royce Wraith RR5(2017-2023)

Rolls Royce Wraith RR5(2017-2023) - Rear window shelf
