Name: Rear axle carrier
Rating: 4.4 (1 reviews)

Rear axle carrier of Rolls Royce Rolls Royce Wraith RR5(2017-2023)

View All

Rolls Royce Wraith RR5(2017-2023) - Rear axle carrier

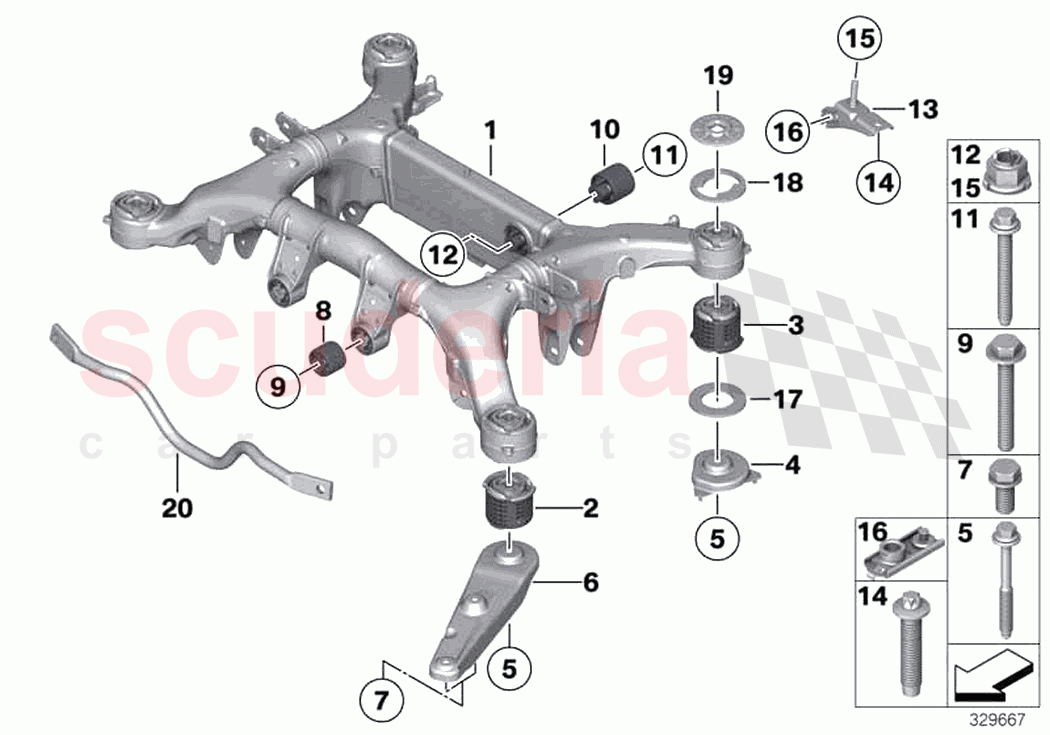

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	33316855455	Rear axle carrier	$2,638.00	To Order

Photo	Part No	Description	Price (each)	Stock
	33316852042	Rubber mounting front	$139.04	To Order

Photo	Part No	Description	Price (each)	Stock
	33316852047	Rubber mounting rear	$152.49	To Order

Photo	Part No	Description	Price (each)	Stock
	33316793637	Stopper, rear left	$39.63	To Order
	33316793638	Stopper, rear right	$39.63	To Order

Photo	Part No	Description	Price (each)	Stock
	33306782246	Hex Bolt with washer	$13.84	To Order

Photo	Part No	Description	Price (each)	Stock
	33326781947	Compression strut, front left	$160.29	To Order
	33326781948	Compression strut, front right	$160.29	To Order

Photo	Part No	Description	Price (each)	Stock
	33306760652	Hex Bolt with washer	$3.98	To Order

Photo	Part No	Description	Price (each)	Stock
	33316792873	Rubber mounting front	$44.75	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	7119906460	Hex Bolt with washer	$6.19	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	33316792872	Rubber mounting rear	$67.64	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	33176760336	Hex Bolt with washer	$13.84	To Order

Photo	Part No	Description	Price (each)	Stock
	33306787062	Combination nut	$4.96	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	33316775899	Bracket, left	$49.03	To Order
	33316775900	Bracket, right	$49.03	To Order

Photo	Part No	Description	Price (each)	Stock
	31106850776	Screw, self tapping	$11.32	To Order

Photo	Part No	Description	Price (each)	Stock
	33316776652	Cage nut	$5.45	To Order

Photo	Part No	Description	Price (each)	Stock
	33316797513	Damping washer	$34.26	To Order

Photo	Part No	Description	Price (each)	Stock
	33306854347	Damping washer	$6.78	To Order

Photo	Part No	Description	Price (each)	Stock
	33306781951	Spacer	$16.50	To Order

Photo	Part No	Description	Price (each)	Stock
	33316780329	Cross brace	$132.93	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
-	41327000571	Blind rivet nut, flat headed	41327000571 Blind rivet nut, flat headed M8	$4.81	2
-	33316775897	Blind rivet nut with collar	33316775897 Blind rivet nut with collar M5	$9.67	1
-	83192405829	Installation tool IN STOCK	83192405829 Installation tool 250ML IN STOCK	$29.14	2
1	33316855455	Rear axle carrier	33316855455 Rear axle carrier	$2,638.00	1
2	33316852042	Rubber mounting front	33316852042 Rubber mounting front	$139.04	2
3	33316852047	Rubber mounting rear	33316852047 Rubber mounting rear	$152.49	2
4	33316793637	Stopper, rear left	33316793637 Stopper, rear left	$39.63	1
4	33316793638	Stopper, rear right	33316793638 Stopper, rear right	$39.63	1
5	33306782246	Hex Bolt with washer	33306782246 Hex Bolt with washer M14X1,5X158	$13.84	4
6	33326781947	Compression strut, front left	33326781947 Compression strut, front left	$160.29	1
6	33326781948	Compression strut, front right	33326781948 Compression strut, front right	$160.29	1
7	33306760652	Hex Bolt with washer	33306760652 Hex Bolt with washer M10X35-Z1-10.9	$3.98	4
8	33316792873	Rubber mounting front IN STOCK	33316792873 Rubber mounting front IN STOCK	$44.75	1
9	7119906460	Hex Bolt with washer IN STOCK	7119906460 Hex Bolt with washer M12X1,5X110 IN STOCK	$6.19	2
10	33316792872	Rubber mounting rear IN STOCK	33316792872 Rubber mounting rear IN STOCK	$67.64	1
11	33176760336	Hex Bolt with washer	33176760336 Hex Bolt with washer M14X1,5X133ZNS3	$13.84	1
12	33306787062	Combination nut IN STOCK	33306787062 Combination nut M14X1,5-10ZNNIV IN STOCK	$4.96	1
13	33316775899	Bracket, left	33316775899 Bracket, left	$49.03	1
13	33316775900	Bracket, right	33316775900 Bracket, right	$49.03	1
14	31106850776	Screw, self tapping	31106850776 Screw, self tapping M14X1,5X75-10.9	$11.32	2
16	33316776652	Cage nut	33316776652 Cage nut M12X1,5-10 ZNS3	$5.45	2
17	33316797513	Damping washer	33316797513 Damping washer 7MM	$34.26	4
18	33306854347	Damping washer	33306854347 Damping washer 7MM	$6.78	4
19	33306781951	Spacer	33306781951 Spacer	$16.50	4
20	33316780329	Cross brace	33316780329 Cross brace	$132.93	1

Rear Axle Carrier

Rolls Royce Wraith RR5(2017-2023)

Rolls Royce Wraith RR5(2017-2023) - Rear axle carrier
