Fuel Tank Mounting Parts

Rolls Royce Wraith RR5(2017-2023)

Find Your Part

Rolls Royce Wraith RR5(2017-2023) - Fuel tank mounting parts

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
16117364177 Plastic fuel tank $1,799.20 To Order
16117364188 Plastic fuel tank $1,799.20 To Order
Photo Part No Description Price (each) Stock
16117305135 Plastic filler pipe $909.45 To Order
16117495578 Plastic filler pipe $4,045.20 To Order
16117305142 Plastic filler pipe $909.45 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
07 12 9952119 Hose clamp $3.87 To Order
Photo Part No Description Price (each) Stock
16 11 7184963 Tension strap $56.09 To Order
Photo Part No Description Price (each) Stock
16 11 7194458 Spacer $3.51 To Order
Photo Part No Description Price (each) Stock
16 11 1182454 Rubber grommet $3.17 To Order
Photo Part No Description Price (each) Stock
07119906672 Hex Bolt $1.82 To Order
Photo Part No Description Price (each) Stock
16 11 1182609 Rubber grommet $3.20 To Order
Photo Part No Description Price (each) Stock
16117248837 Spacer $5.27 To Order
Photo Part No Description Price (each) Stock
16 11 7201486 Spacer $10.47 To Order
Photo Part No Description Price (each) Stock
07147273549 Base $12.28 To Order
Photo Part No Description Price (each) Stock
16 13 1183133 Plastic nut for coarse threaded pin $1.39 To Order
Photo Part No Description Price (each) Stock
16 12 7199666 Line clip, double $3.96 To Order
Photo Part No Description Price (each) Stock
16 11 7003188 Triple clip $7.93 To Order
Photo Part No Description Price (each) Stock
16117482902 Filler cap $35.45 To Order
16117470341 Filler cap $36.58 IN STOCK
16117493051 Filler cap $831.48 To Order
...and 1 more part variants. See table on right for more details.

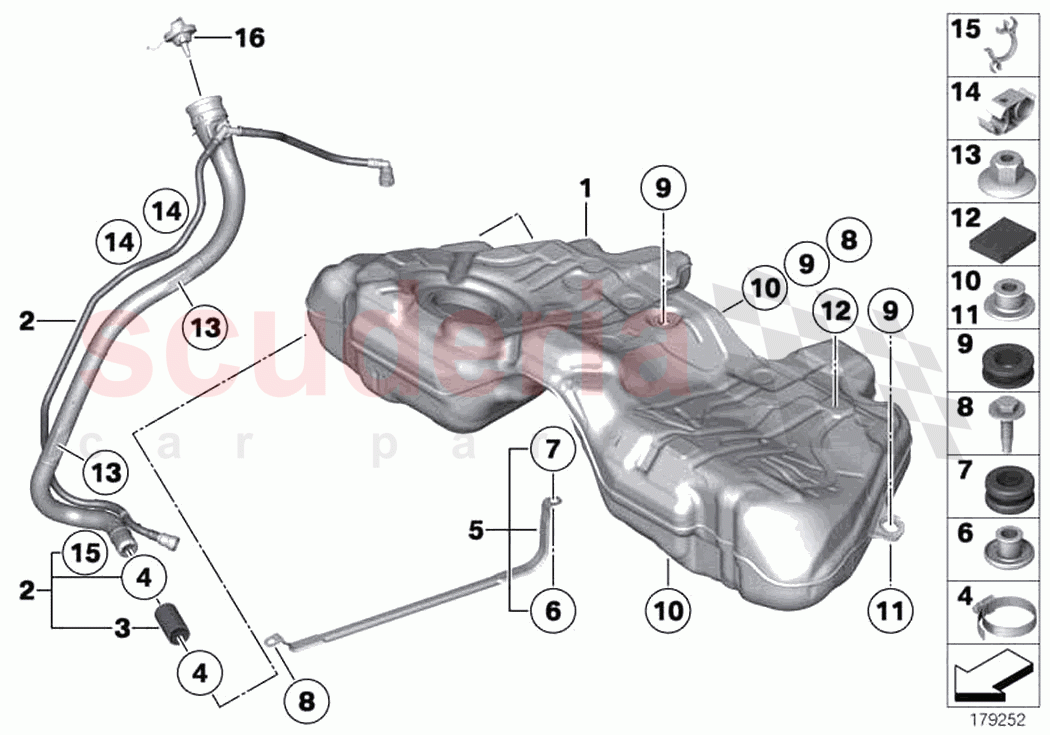

Fuel tank mounting parts of Rolls Royce Rolls Royce Wraith RR5(2017-2023) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 16117364177
Plastic fuel tank 		$1,799.20 1
TO
1 16117364188
Plastic fuel tank 		$1,799.20 1
TO
2 16117305135
Plastic filler pipe 		$909.45 1
TO
2 16117495578
Plastic filler pipe 		$4,045.20 1
TO
2 16117305142
Plastic filler pipe 		$909.45 1
TO
2 16117305140
Plastic filler pipe 		$873.47 1
TO
4 07 12 9952119
Hose clamp
L42-48 		$3.87 2
TO
5 16 11 7184963
Tension strap 		$56.09 2
TO
6 16 11 7194458
Spacer 		$3.51 4
TO
7 16 11 1182454
Rubber grommet 		$3.17 4
TO
8 07119906672
Hex Bolt
M8X30-PF-U2-8.8 		$1.82 4
TO
9 16 11 1182609
Rubber grommet 		$3.20 3
TO
10 16117248837
Spacer 		$5.27 1
TO
11 16 11 7201486
Spacer 		$10.47 2
TO
12 07147273549
Base
43X35X8 MM 		$12.28 7
TO
13 16 13 1183133
Plastic nut for coarse threaded pin 		$1.39 2
TO
14 16 12 7199666
Line clip, double 		$3.96 2
TO
15 16 11 7003188
Triple clip 		$7.93 1
TO
16 16117482902
Filler cap 		$35.45 1
TO
16 16117470341
Filler cap
IN STOCK 		$36.58 1
IN
16 16117493051
Filler cap
to 12.2018 		$831.48 1
TO
16 16117354892
Filler cap
08.2016 - 08.2018 		$751.48 1
TO
