Engine Block

Rolls Royce Wraith RR5(2017-2023)

Find Your Part

Rolls Royce Wraith RR5(2017-2023) - Engine block

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
11 11 2158071 Engine block with piston $23,919.01 To Order
Photo Part No Description Price (each) Stock
07 12 9904795 ASA-Bolt $5.19 To Order
Photo Part No Description Price (each) Stock
07 12 9905712 ASA-Bolt $3.93 To Order
Photo Part No Description Price (each) Stock
11 41 7508149 Collar screw $5.32 To Order
Photo Part No Description Price (each) Stock
11117628302 Collar screw $5.32 To Order
Photo Part No Description Price (each) Stock
11 42 7584759 Oil Spraying Nozzle $52.95 To Order
Photo Part No Description Price (each) Stock
11 11 7568242 Spacer $19.45 To Order
Photo Part No Description Price (each) Stock
11 11 7568243 Screw $10.70 To Order
Photo Part No Description Price (each) Stock
11 11 1710132 Spacer bush $5.02 To Order
Photo Part No Description Price (each) Stock
11 12 1726238 Dowel $0.98 To Order
Photo Part No Description Price (each) Stock
07 11 9963225 Gasket ring $0.59 IN STOCK
Photo Part No Description Price (each) Stock
07 11 9904539 Screw plug $2.39 To Order
Photo Part No Description Price (each) Stock
11 12 1715657 Dowel $2.24 IN STOCK
Photo Part No Description Price (each) Stock
11 11 7524470 Dowel $1.62 To Order
Photo Part No Description Price (each) Stock
11 11 1743118 Dowel $5.05 To Order
Photo Part No Description Price (each) Stock
11 11 7584776 Connector $40.22 To Order
Photo Part No Description Price (each) Stock
07 11 9963300 Gasket ring $1.83 To Order
Photo Part No Description Price (each) Stock
11 11 7587530 Oil pipe $57.35 To Order
Photo Part No Description Price (each) Stock
11117557325 Collar screw $5.32 To Order

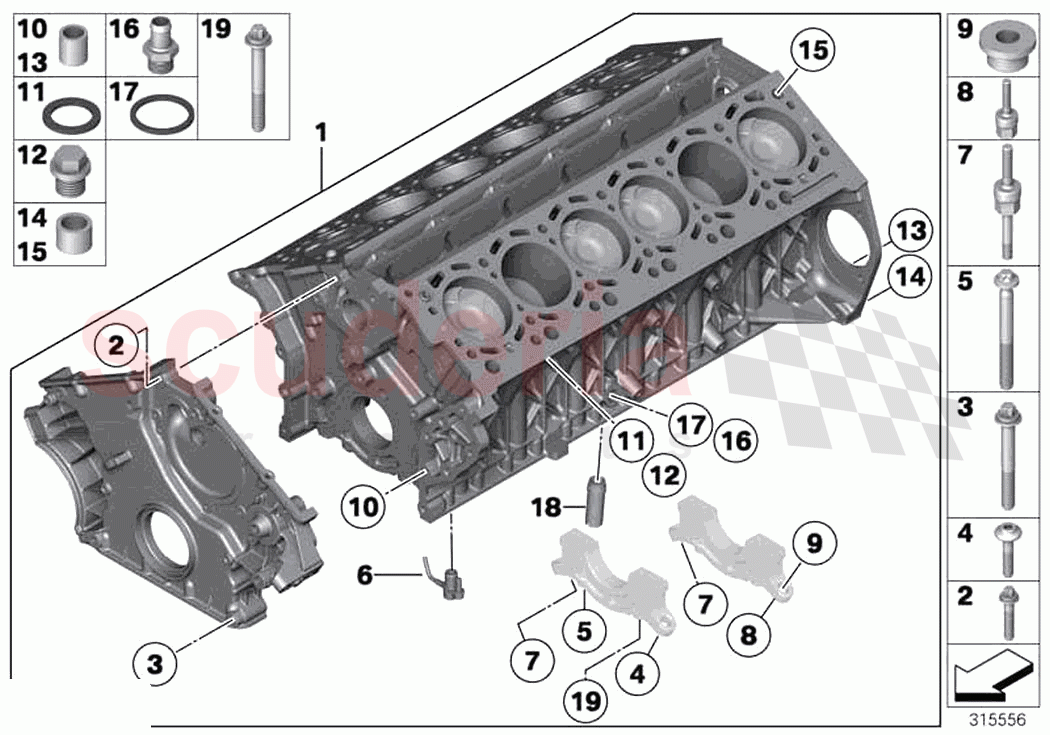

Engine block of Rolls Royce Rolls Royce Wraith RR5(2017-2023) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- 83 19 7515683
Primer Loctite 171000
4ML 		- 1
PE
 Enquire
1 11 11 2158071
Engine block with piston 		$23,919.01 1
TO
2 07 12 9904795
ASA-Bolt
M8X40-U1-8.8 		$5.19 3
TO
3 07 12 9905712
ASA-Bolt
M8X65-U1 		$3.93 3
TO
4 11 41 7508149
Collar screw
M8X37 		$5.32 11
TO
5 11117628302
Collar screw
M11X99 		$5.32 14
TO
6 11 42 7584759
Oil Spraying Nozzle 		$52.95 12
TO
7 11 11 7568242
Spacer 		$19.45 2
TO
8 11 11 7568243
Screw 		$10.70 1
TO
9 11 11 1710132
Spacer bush 		$5.02 14
TO
10 11 12 1726238
Dowel
D=10,5MM 		$0.98 2
TO
11 07 11 9963225
Gasket ring
A14X20-AL
IN STOCK 		$0.59 2
IN
12 07 11 9904539
Screw plug
M14X1,5-ZNNIV 		$2.39 2
TO
13 11 12 1715657
Dowel
D=8,3MM
IN STOCK 		$2.24 2
IN
14 11 11 7524470
Dowel
D=14,5MM 		$1.62 2
TO
15 11 11 1743118
Dowel
D=14,5MM 		$5.05 4
TO
16 11 11 7584776
Connector 		$40.22 2
TO
17 07 11 9963300
Gasket ring
A18X22-AL 		$1.83 2
TO
18 11 11 7587530
Oil pipe 		$57.35 2
TO
19 11117557325
Collar screw
M8X70 		$5.32 14
TO
