Charge Air Cooler

Rolls Royce Phantom Extended RR12(2017-2023)

Find Your Part

Rolls Royce Phantom Extended RR12(2017-2023) - Charge air cooler

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
17 51 7566391 Charge-air cooler $733.79 To Order
17 51 7566392 Charge-air cooler $733.79 To Order
17519470130 Charge-air cooler $1,635.16 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
07 11 9905182 Fillister head screw $5.13 To Order
11617574307 Oval head screw with O-ring $4.45 To Order
Photo Part No Description Price (each) Stock
17 51 7566396 Bracket, charge-air cooler $52.68 To Order
17518695450 Bracket, charge-air cooler $53.53 To Order
17519796608 Bracket, charge-air cooler $55.52 To Order
...and 2 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
17 11 7594307 ISA screw $1.70 To Order
Photo Part No Description Price (each) Stock
17 51 7578864 Air channel $92.52 To Order
17518647964 Air channel $130.73 To Order
Photo Part No Description Price (each) Stock
13 71 7588501 Rubber buffer $5.63 To Order
Photo Part No Description Price (each) Stock
11 61 7561009 Profile-gasket $12.37 IN STOCK
Photo Part No Description Price (each) Stock
07 11 9904526 Hex Bolt with washer $1.43 To Order

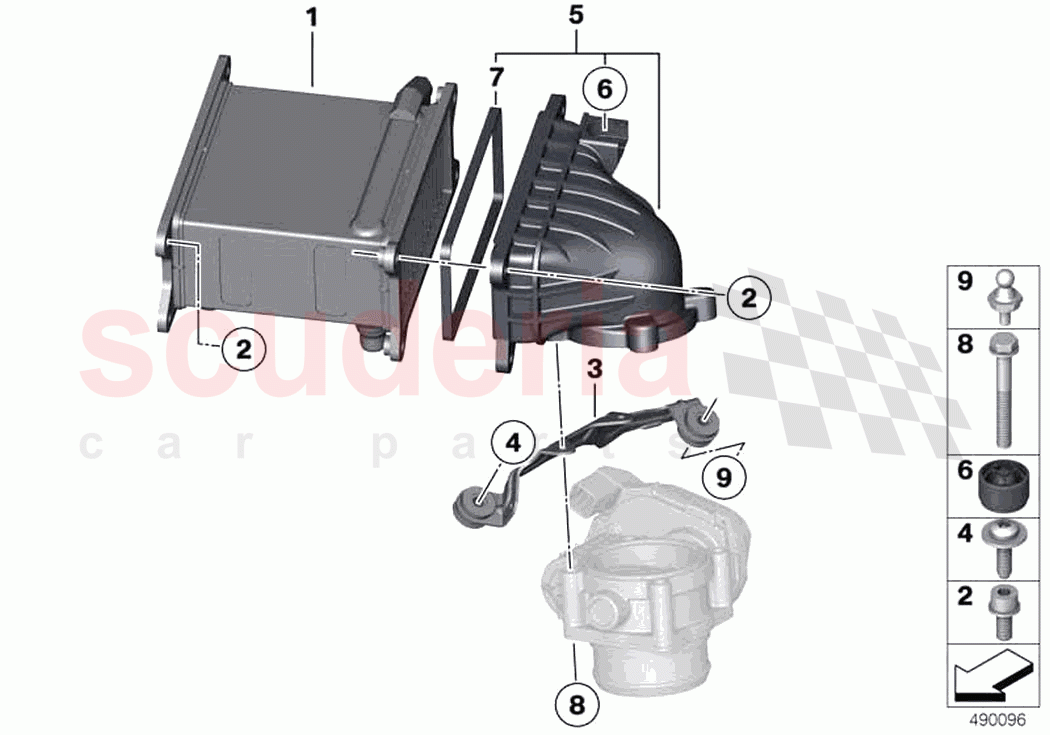

Charge air cooler of Rolls Royce Rolls Royce Phantom Extended RR12(2017-2023) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- 07149362188
Ball pin
from 02.2018 		$4.81 1
TO
1 17 51 7566391
Charge-air cooler
7-12 		$733.79 1
TO
1 17 51 7566392
Charge-air cooler
1-6 		$733.79 1
TO
1 17519470130
Charge-air cooler
CYL. 1-6 		$1,635.16 1
TO
1 17519480566
Charge-air cooler
CYL. 7-12 		$1,635.16 1
TO
2 07 11 9905182
Fillister head screw
M6X22 		$5.13 16
TO
2 11617574307
Oval head screw with O-ring
M6X25 		$4.45 12
TO
3 17 51 7566396
Bracket, charge-air cooler
7-12; from 02.2018 		$52.68 1
TO
3 17518695450
Bracket, charge-air cooler
CYL.7-12; from 02.2018 		$53.53 1
TO
3 17519796608
Bracket, charge-air cooler
CYL.7-12; from 02.2018 		$55.52 1
TO
3 17 51 7566397
Bracket, charge-air cooler
1-6; from 02.2018 		$52.68 1
TO
3 17518695449
Bracket, charge-air cooler
CYL.1-6; from 02.2018 		$70.67 1
TO
4 17 11 7594307
ISA screw
M6X27; from 02.2018 		$1.70 4
TO
5 17 51 7578864
Air channel
1-6 		$92.52 1
TO
5 17518647964
Air channel
7-12 		$130.73 1
TO
6 13 71 7588501
Rubber buffer 		$5.63 2
TO
7 11 61 7561009
Profile-gasket
IN STOCK 		$12.37 2
IN
8 07 11 9904526
Hex Bolt with washer
M6X55-Z1 		$1.43 8
TO
