Name: Seat front backrest frame
Rating: 5.0 (1 reviews)

View All

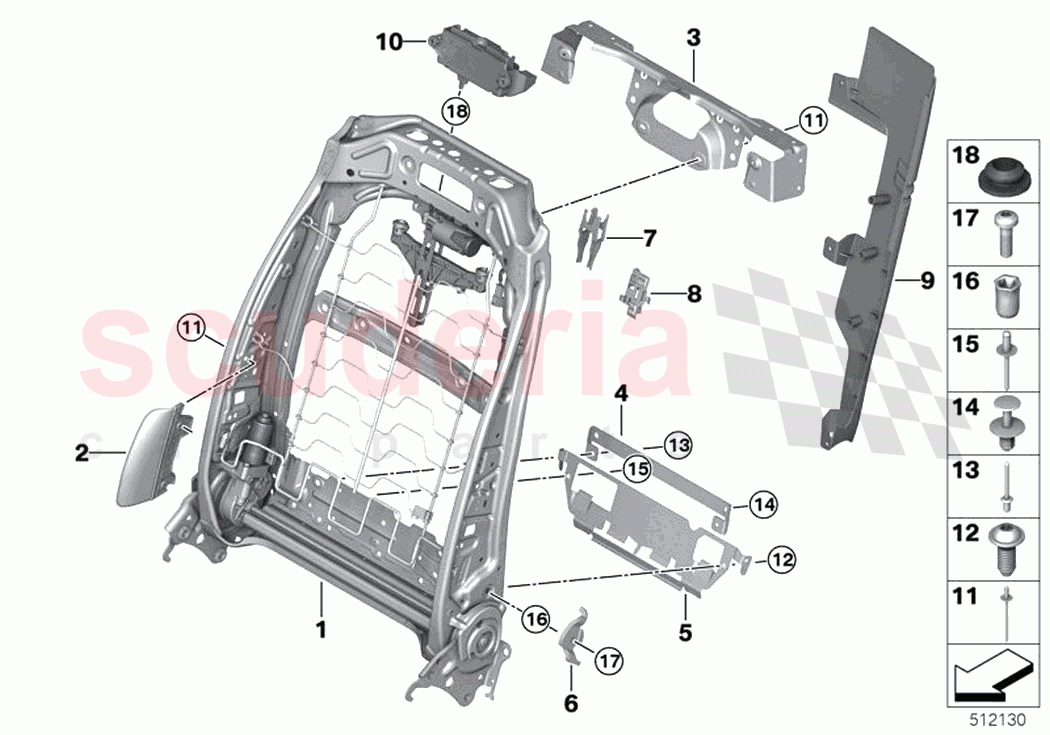

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	52107308917	Carrier plate	$82.34	To Order

Photo	Part No	Description	Price (each)	Stock
	52108495448	Bracket, bottom	$279.31	To Order

Photo	Part No	Description	Price (each)	Stock
	52107310145	Attachment strip	$136.99	To Order

Photo	Part No	Description	Price (each)	Stock
	52107404879	Clip	$10.56	To Order

Photo	Part No	Description	Price (each)	Stock
	61139258261	Plug-in connection bracket	$8.68	To Order

Photo	Part No	Description	Price (each)	Stock
	7129908078	Screw	$2.28	To Order

Photo	Part No	Description	Price (each)	Stock
	7147216152	Blind rivet	$1.12	To Order

Photo	Part No	Description	Price (each)	Stock
	51471911992	Expanding rivet	$0.88	IN STOCK

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
-	52107042164	Blind rivet	52107042164 Blind rivet 4,0X10	$0.83	18
-	7147132311	Blind rivet nut, flat headed	7147132311 Blind rivet nut, flat headed M6	$1.04	4
-	7147265827	Blind rivet	7147265827 Blind rivet	$0.83	4
-	7149194839	Screw torx drive IN STOCK	7149194839 Screw torx drive M6 X 20 IN STOCK	$4.69	4
01	52107470641	Backrest frame, electrical	52107470641 Backrest frame, electrical	$1,217.37	2
01	52107457276	Backrest frame, electrical	52107457276 Backrest frame, electrical	$635.40	2
02	52107312905	Left support	52107312905 Left support	$51.03	2
02	52107312906	Right support	52107312906 Right support	$51.03	2
03	52107308917	Carrier plate	52107308917 Carrier plate	$82.34	1
04	52108495448	Bracket, bottom	52108495448 Bracket, bottom	$279.31	1
05	52107310145	Attachment strip	52107310145 Attachment strip	$136.99	2
06	52107355783	Stopper left	52107355783 Stopper left	$91.19	2
06	52107355784	Stopper right	52107355784 Stopper right	$91.19	2
07	52107404879	Clip	52107404879 Clip	$10.56	2
08	61139258261	Plug-in connection bracket	61139258261 Plug-in connection bracket	$8.68	2
12	7129908078	Screw	7129908078 Screw TS 5X12	$2.28	4
13	7147216152	Blind rivet	7147216152 Blind rivet AL-A2	$1.12	2
14	51471911992	Expanding rivet IN STOCK	51471911992 Expanding rivet D = 8MM IN STOCK	$0.88	4

Seat Front Backrest Frame

Rolls Royce Phantom RR11(2017-2023)
