Frnt Axle Support Wishbone Tension Strut

Rolls Royce Phantom RR11(2017-2023)

Find Your Part

Rolls Royce Phantom RR11(2017-2023) - Frnt axle support wishbone tension strut

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
31106871405 Front axle support $7,504.65 To Order
Photo Part No Description Price (each) Stock
31106876339 Hexagon screw with flange $10.83 To Order
Photo Part No Description Price (each) Stock
31106872063 Hex Bolt with washer $5.57 To Order
Photo Part No Description Price (each) Stock
31106872115 Strut, engine mount, left $108.83 To Order
31106872116 Strut, engine mount, right $108.83 To Order
Photo Part No Description Price (each) Stock
07119909300 Screw with flange $3.03 To Order
Photo Part No Description Price (each) Stock
07129907856 Threaded spindle M12 $6.77 To Order
Photo Part No Description Price (each) Stock
31106888079 LEFT tension strut WITH RUBBER MOUNTING $1,340.61 To Order
31106888080 Right tension strut with rubber mounting $1,340.61 To Order
Photo Part No Description Price (each) Stock
31106871829 Wishbone, bottom, with rubber mount left Enquire To Order
31 10 6893396 Wishbone, bottom,with rubber mount right $1,489.47 To Order
31106893395 Wishbone, bottom, with rubber mount left $1,489.47 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
31106883553 Control arm, camber correction, top left Enquire To Order
31108845761 Wishbone, upper left $3,985.35 To Order
31106883554 Control arm, camber correction,top right Enquire To Order
...and 9 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
31106875903 Cage nut $11.63 To Order
Photo Part No Description Price (each) Stock
07119909323 Hex Bolt $6.75 To Order
Photo Part No Description Price (each) Stock
31 10 6765451 Combination nut $3.56 To Order
Photo Part No Description Price (each) Stock
31 10 6789333 Torx screw $3.93 IN STOCK
Photo Part No Description Price (each) Stock
33 30 6760349 Self-locking collar nut $4.20 IN STOCK
Photo Part No Description Price (each) Stock
33 17 6760342 Hex Bolt $11.18 To Order
Photo Part No Description Price (each) Stock
33 31 6767586 ASA screw with washer $16.14 IN STOCK
Photo Part No Description Price (each) Stock
31106876225 Hexagon screw with flange $10.57 To Order
Photo Part No Description Price (each) Stock
07146875114 Hexagon nut with collar $7.28 IN STOCK
Photo Part No Description Price (each) Stock
31106891642 Stiffening plate with cross-member $8,696.86 To Order
Photo Part No Description Price (each) Stock
31106870648 Hex Bolt with washer $5.26 To Order
Photo Part No Description Price (each) Stock
31106896469 Reinforcement, left $183.03 To Order
31106871416 Reinforcement, right $149.14 To Order
Photo Part No Description Price (each) Stock
33306797639 ASA screw, self-tapping $5.26 To Order
Photo Part No Description Price (each) Stock
31106868499 Heli-Coil threaded insert $4.39 To Order
Photo Part No Description Price (each) Stock
31106870940 Cage nut $5.07 To Order
Photo Part No Description Price (each) Stock
31106868376 Heli-Coil threaded insert $2.39 To Order
Photo Part No Description Price (each) Stock
07147141730 Threaded plug $17.51 To Order
Photo Part No Description Price (each) Stock
33556790913 Hexagon nut with collar $1.46 To Order
Photo Part No Description Price (each) Stock
31146894930 Underride protection, front $716.25 To Order
Photo Part No Description Price (each) Stock
31106894931 Holder for underride protection front $119.56 To Order
Photo Part No Description Price (each) Stock
07119907898 Hex Bolt $1.26 IN STOCK

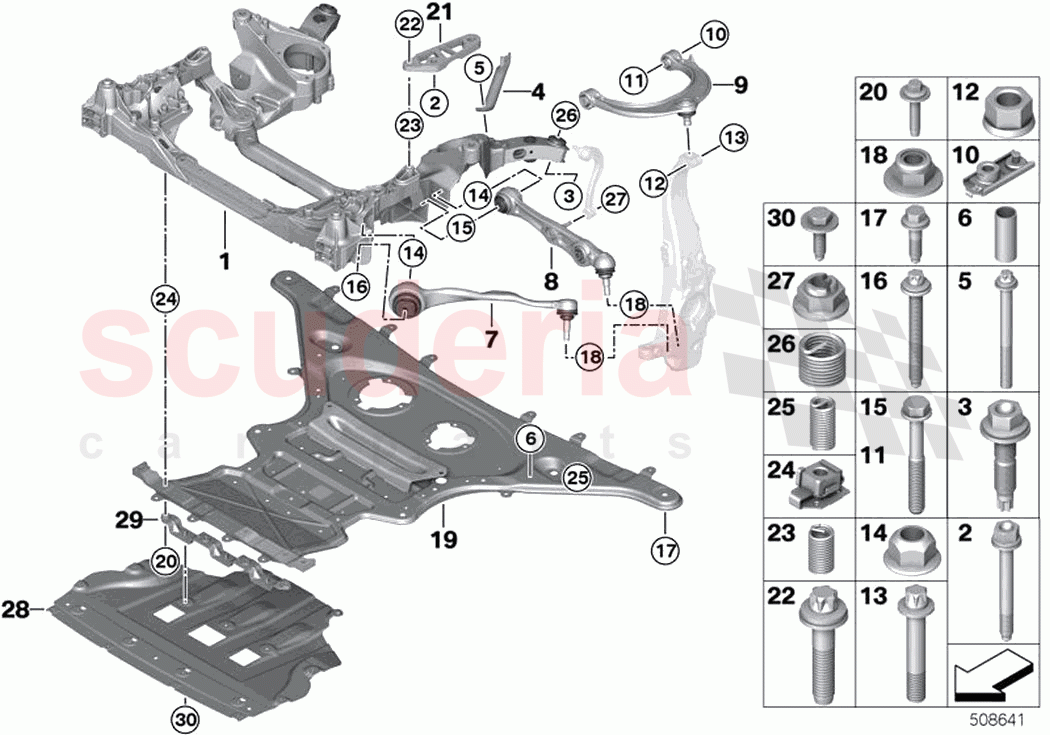

Frnt axle support wishbone tension strut of Rolls Royce Rolls Royce Phantom RR11(2017-2023) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
01 31106871405
Front axle support 		$7,504.65 1
TO
02 31106876339
Hexagon screw with flange
M12X1,5X106 		$10.83 6
TO
03 31106872063
Hex Bolt with washer
M14X54X1.5 		$5.57 2
TO
04 31106872115
Strut, engine mount, left 		$108.83 1
TO
04 31106872116
Strut, engine mount, right 		$108.83 1
TO
05 07119909300
Screw with flange
AM8X85-U1-10,9 		$3.03 4
TO
06 07129907856
Threaded spindle M12
M12X1,5X30 A2 		$6.77 8
TO
07 31106888079
LEFT tension strut WITH RUBBER MOUNTING 		$1,340.61 1
TO
07 31106888080
Right tension strut with rubber mounting 		$1,340.61 1
TO
08 31106871829
Wishbone, bottom, with rubber mount left
from 02.2021 		- 1
PE
 Enquire

31 10 6893396

WISHBONE, BOTTOM,WITH RUBBER MOUNT RIGHT

from $1,489.47

08 31106893395
Wishbone, bottom, with rubber mount left 		$1,489.47 1
TO
09 31106883553
Control arm, camber correction, top left
+30MIN; from 06.2021 		- 1
PE
 Enquire
09 31108845761
Wishbone, upper left
PLUS 		$3,985.35 1
TO
09 31106883554
Control arm, camber correction,top right
+30MIN; from 06.2021 		- 1
PE
 Enquire
09 31108845762
Wishbone, upper right
PLUS 		$3,985.35 1
TO

31108838797

WISHBONE WITH RUBBER MOUNT TOP LEFT

from $1,057.69

09 31106878256
Wishbone with rubber mount top right
from 03.2021 		- 1
PE
 Enquire
09 31108838798
Wishbone with rubber mount top right
IN STOCK 		$1,057.69 1
IN
09 31106883555
Control arm, camber correction, top left
-30MIN; from 06.2021 		- 1
PE
 Enquire
09 31108845763
Wishbone, upper left
MINUS 		$3,957.99 1
TO
09 31106883556
Control arm, camber correction,top right
-30MIN; from 06.2021 		- 1
PE
 Enquire
09 31108845764
Wishbone, upper right
MINUS 		$3,957.99 1
TO
10 31106875903
Cage nut
M10-10 ZNS3 		$11.63 4
TO
11 07119909323
Hex Bolt
M10X90 TC 10,9 		$6.75 4
TO
12 31 10 6765451
Combination nut
M10-22H ZNS3 		$3.56 2
TO
13 31 10 6789333
Torx screw
M10X59-10.9 ZNS
IN STOCK 		$3.93 2
IN
14 33 30 6760349
Self-locking collar nut
M14X1,5-10 ZNS3
IN STOCK 		$4.20 2
IN
15 33 17 6760342
Hex Bolt
M14X1,5X110 		$11.18 2
TO
16 33 31 6767586
ASA screw with washer
M14X127-10.9
IN STOCK 		$16.14 2
IN
17 31106876225
Hexagon screw with flange
M12X1,5X45-10.9 		$10.57 4
TO
18 07146875114
Hexagon nut with collar
M16X1.5 ZNNIV
IN STOCK 		$7.28 4
IN
19 31106891642
Stiffening plate with cross-member 		$8,696.86 1
TO
20 31106870648
Hex Bolt with washer
M8X40 		$5.26 16
TO
21 31106896469
Reinforcement, left 		$183.03 1
TO
21 31106871416
Reinforcement, right 		$149.14 1
TO
22 33306797639
ASA screw, self-tapping
M12X60-10.9ZNS3 		$5.26 2
TO
23 31106868499
Heli-Coil threaded insert
M12X30-A2 		$4.39 2
TO
24 31106870940
Cage nut 		$5.07 4
TO
25 31106868376
Heli-Coil threaded insert
M8X20-A2 		$2.39 16
TO
26 07147141730
Threaded plug
M14X1,5X14 		$17.51 2
TO
27 33556790913
Hexagon nut with collar
M10-10 ZNS3 		$1.46 2
TO
28 31146894930
Underride protection, front
to 08.2020 		$716.25 1
TO
29 31106894931
Holder for underride protection front
to 08.2020 		$119.56 1
TO
30 07119907898
Hex Bolt
M6X20-8.8; to 08.2020
IN STOCK 		$1.26 3
IN
