Name: Charge air cooler
Rating: 4.1 (1 reviews)

Diagram
INFO

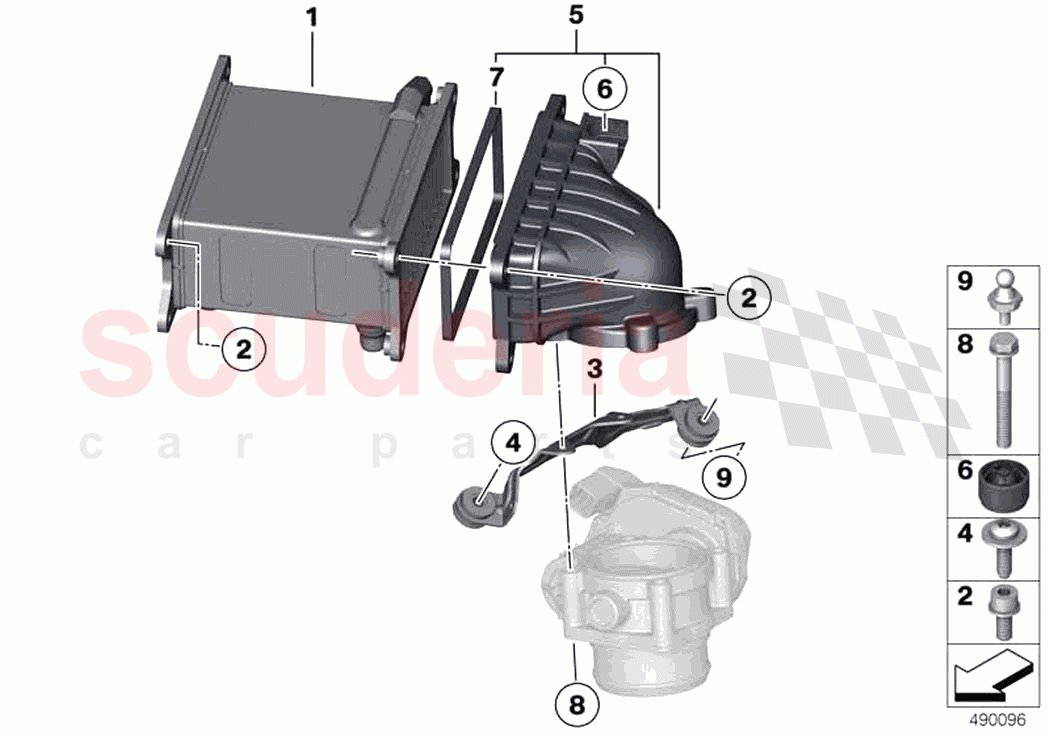

Charge air cooler of Rolls Royce Rolls Royce Phantom RR11(2017-2023)

Rolls Royce Phantom RR11(2017-2023) - Charge air cooler

View the exploded parts diagram to find the part you are looking for

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

TO ORDER

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	17 51 7566391	Charge-air cooler	$742.82	To Order
	17 51 7566392	Charge-air cooler	$742.82	To Order
	17519470130	Charge-air cooler	$1,655.28	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	07 11 9905182	Fillister head screw	$5.19	To Order
	11617574307	Oval head screw with O-ring	$4.51	To Order

Photo	Part No	Description	Price (each)	Stock
	17 51 7566396	Bracket, charge-air cooler	$53.32	To Order
	17518695450	Bracket, charge-air cooler	$54.19	To Order
	17519796608	Bracket, charge-air cooler	$56.20	To Order

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	17 11 7594307	ISA screw	$1.72	To Order

Photo	Part No	Description	Price (each)	Stock
	17 51 7578864	Air channel	$93.65	To Order
	17518647964	Air channel	$132.34	To Order

Photo	Part No	Description	Price (each)	Stock
	13 71 7588501	Rubber buffer	$5.70	To Order

Photo	Part No	Description	Price (each)	Stock
	11 61 7561009	Profile-gasket	$12.53	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	07 11 9904526	Hex Bolt with washer	$1.45	To Order

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Key
-	07149362188	Ball pin	07149362188 Ball pin from 02.2018	$4.87	1	TO
01	17 51 7566391	Charge-air cooler	17 51 7566391 Charge-air cooler 07-Dec	$742.82	1	TO
01	17 51 7566392	Charge-air cooler	17 51 7566392 Charge-air cooler 01-Jun	$742.82	1	TO
01	17519470130	Charge-air cooler	17519470130 Charge-air cooler CYL. 1-6	$1,655.28	1	TO
01	17519480566	Charge-air cooler	17519480566 Charge-air cooler CYL. 7-12	$1,655.28	1	TO
02	07 11 9905182	Fillister head screw	07 11 9905182 Fillister head screw M6X22	$5.19	16	TO
02	11617574307	Oval head screw with O-ring	11617574307 Oval head screw with O-ring M6X25	$4.51	12	TO
03	17 51 7566396	Bracket, charge-air cooler	17 51 7566396 Bracket, charge-air cooler 07-Dec; from 02.2018	$53.32	1	TO
03	17518695450	Bracket, charge-air cooler	17518695450 Bracket, charge-air cooler CYL.7-12; from 02.2018	$54.19	1	TO
03	17519796608	Bracket, charge-air cooler	17519796608 Bracket, charge-air cooler CYL.7-12; from 02.2018	$56.20	1	TO
03	17 51 7566397	Bracket, charge-air cooler	17 51 7566397 Bracket, charge-air cooler 01-Jun; from 02.2018	$53.32	1	TO
03	17518695449	Bracket, charge-air cooler	17518695449 Bracket, charge-air cooler CYL.1-6; from 02.2018	$71.54	1	TO
04	17 11 7594307	ISA screw	17 11 7594307 ISA screw M6X27; from 02.2018	$1.72	4	TO
05	17 51 7578864	Air channel	17 51 7578864 Air channel 01-Jun	$93.65	1	TO
05	17518647964	Air channel	17518647964 Air channel 07-Dec	$132.34	1	TO
06	13 71 7588501	Rubber buffer	13 71 7588501 Rubber buffer	$5.70	2	TO
07	11 61 7561009	Profile-gasket IN STOCK	11 61 7561009 Profile-gasket IN STOCK	$12.53	2	IN
08	07 11 9904526	Hex Bolt with washer	07 11 9904526 Hex Bolt with washer M6X55-Z1	$1.45	8	TO

Charge Air Cooler

Rolls Royce Phantom RR11(2017-2023)

Rolls Royce Phantom RR11(2017-2023) - Charge air cooler
