Coolant Lines

Rolls Royce Ghost Extended RR22(2019-2023)

Find Your Part

Rolls Royce Ghost Extended RR22(2019-2023) - Coolant lines

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
64509299652 Refrigerant line, double pipe $1,116.18 To Order
64509299651 Refrigerant line, double pipe $943.08 To Order
Photo Part No Description Price (each) Stock
64509351500 Coolant pipe $532.11 To Order
64509365395 Coolant pipe $527.12 To Order
Photo Part No Description Price (each) Stock
64509351492 Pressure hose, compressor-condenser $322.88 To Order
Photo Part No Description Price (each) Stock
64509351503 Suction pipe $705.28 To Order
Photo Part No Description Price (each) Stock
64539323658 Pressure sensor $106.80 To Order
Photo Part No Description Price (each) Stock
64 53 6922944 Valve $9.61 To Order
Photo Part No Description Price (each) Stock
07149287978 Sealing cap, suction line $3.62 To Order
64 53 8387437 Sealing cap, suction line $0.89 To Order
Photo Part No Description Price (each) Stock
07149287979 Sealing cap, pressure line $4.04 To Order
64 53 8387438 Sealing cap, pressure line $0.89 To Order
Photo Part No Description Price (each) Stock
07149351502 Clamp $3.01 To Order
Photo Part No Description Price (each) Stock
34506859776 Hex nut $1.41 To Order
Photo Part No Description Price (each) Stock
07119908428 Hexalobular socket screw $1.41 To Order
Photo Part No Description Price (each) Stock
07 12 9904835 ISA screw $3.71 To Order
Photo Part No Description Price (each) Stock
12141305028 Clamp $25.69 To Order
Photo Part No Description Price (each) Stock
07 11 9905399 Hex Bolt with washer $0.57 To Order
Photo Part No Description Price (each) Stock
07129907467 Hex nut $2.16 To Order
Photo Part No Description Price (each) Stock
64539284018 Gasket ring $8.41 To Order
Photo Part No Description Price (each) Stock
64539284019 Gasket ring $9.77 To Order
Photo Part No Description Price (each) Stock
64539284020 Gasket ring $9.77 To Order

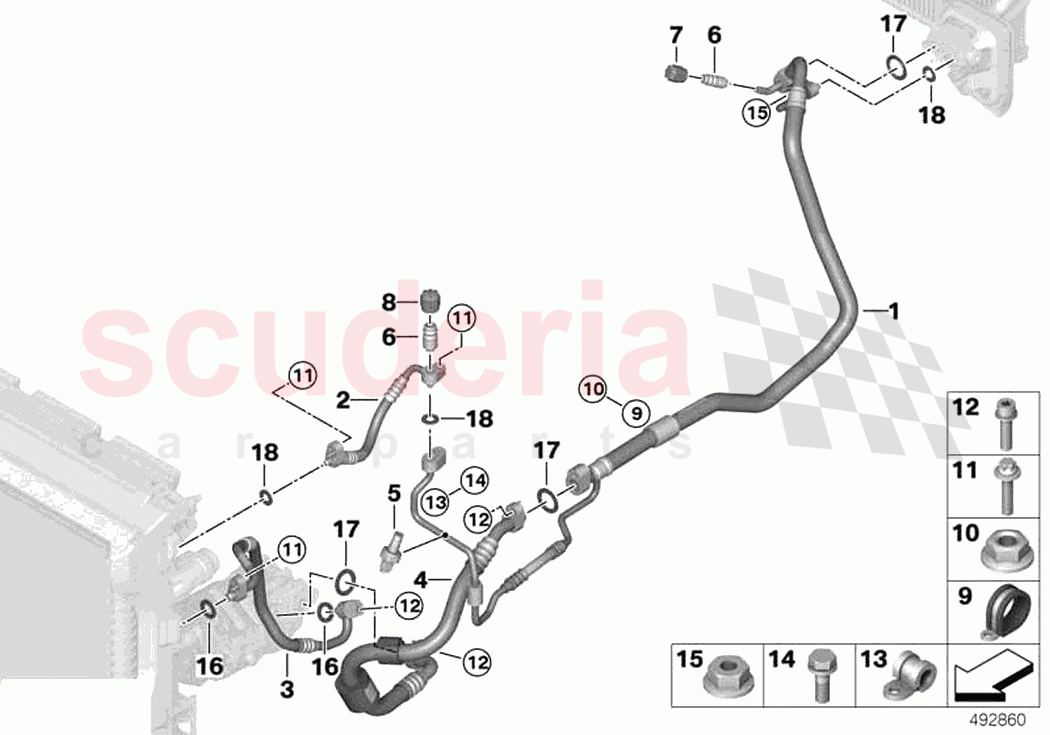

Coolant lines of Rolls Royce Rolls Royce Ghost Extended RR22(2019-2023) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 64509299652
Refrigerant line, double pipe
R1234YF 		$1,116.18 1
TO
1 64509299651
Refrigerant line, double pipe
R134A 		$943.08 1
TO
2 64509351500
Coolant pipe
R1234YF 		$532.11 1
TO
2 64509365395
Coolant pipe
R134A 		$527.12 1
TO
3 64509351492
Pressure hose, compressor-condenser 		$322.88 1
TO
4 64509351503
Suction pipe 		$705.28 1
TO
5 64539323658
Pressure sensor 		$106.80 1
TO
6 64 53 6922944
Valve
R134A/R1234YF 		$9.61 2
TO
7 07149287978
Sealing cap, suction line
R1234YF 		$3.62 1
TO
7 64 53 8387437
Sealing cap, suction line
R134A 		$0.89 1
TO
8 07149287979
Sealing cap, pressure line
R1234YF 		$4.04 1
TO
8 64 53 8387438
Sealing cap, pressure line
R134A 		$0.89 1
TO
9 07149351502
Clamp
D=32MM 		$3.01 1
TO
10 34506859776
Hex nut
M6-8-SC-ZNNIV S 		$1.41 1
TO
11 07119908428
Hexalobular socket screw
BM6 X 25 		$1.41 3
TO
12 07 12 9904835
ISA screw
M8X30-U1-8.8 		$3.71 3
TO
13 12141305028
Clamp
D=10/6,4 		$25.69 1
TO
14 07 11 9905399
Hex Bolt with washer
M6X18-U1 		$0.57 1
TO
15 07129907467
Hex nut
M6-10-ZNNIV SI 		$2.16 1
TO
16 64539284018
Gasket ring
D=11MM 		$8.41 2
TO
17 64539284019
Gasket ring
D=17MM 		$9.77 3
TO
18 64539284020
Gasket ring
D=8MM 		$9.77 3
TO
