Mounting Parts Engine Compartment

Rolls Royce Ghost Extended RR22(2019-2023)

Find Your Part

Rolls Royce Ghost Extended RR22(2019-2023) - Mounting parts engine compartment

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
51717466650 Bulkhead, upper section, middle $544.59 To Order
Photo Part No Description Price (each) Stock
61137951006 Sealing frame left $69.37 To Order
Photo Part No Description Price (each) Stock
61137951005 Holder upper section $24.66 To Order
Photo Part No Description Price (each) Stock
61137951004 Holder lower section $58.94 To Order
Photo Part No Description Price (each) Stock
51717466659 Bulkhead, lower section, left $544.59 To Order
51717466661 Bulkhead, lower section, left $614.01 To Order
Photo Part No Description Price (each) Stock
51717466660 Bulkhead, lower section, right $544.59 To Order
51717466662 Bulkhead, lower section, right $614.01 To Order
Photo Part No Description Price (each) Stock
51757428073 Cover, steering gear, front left $262.75 To Order
51757428074 Cover, steering gear, front right $262.75 To Order
Photo Part No Description Price (each) Stock
51757409799 Cover, steering gear, rear left $485.23 To Order
51757409800 Cover, steering gear, rear right $485.23 To Order
Photo Part No Description Price (each) Stock
07147336362 Plastic nut for coarse threaded pin $1.41 To Order
Photo Part No Description Price (each) Stock
07 14 9213164 Hex Bolt $1.24 IN STOCK
Photo Part No Description Price (each) Stock
07142994134 Fillister head screw $1.62 To Order
Photo Part No Description Price (each) Stock
07129907505 Screw $1.94 To Order
Photo Part No Description Price (each) Stock
07147311312 C-clip plastic nut $1.04 To Order
Photo Part No Description Price (each) Stock
07119907898 Hex Bolt $1.27 IN STOCK
Photo Part No Description Price (each) Stock
51451857745 Clamp $2.34 To Order
Photo Part No Description Price (each) Stock
07147169847 Plastic cap nut with washer $1.04 To Order
Photo Part No Description Price (each) Stock
07147306224 Expanding nut $1.20 To Order

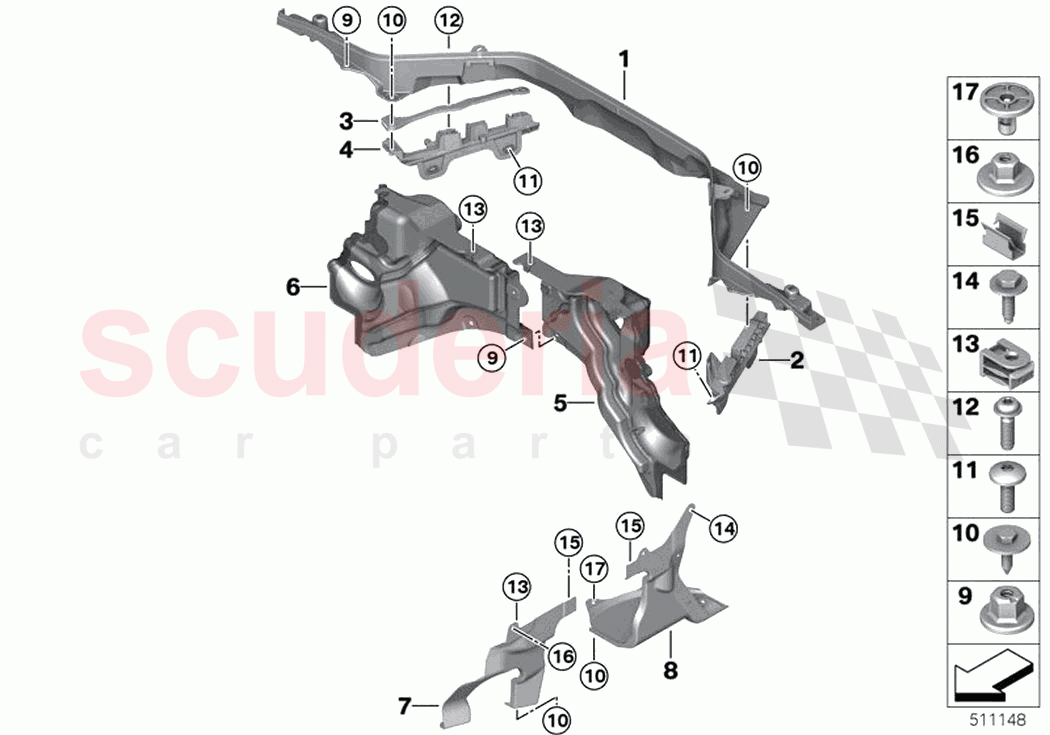

Mounting parts engine compartment of Rolls Royce Rolls Royce Ghost Extended RR22(2019-2023) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 51717466650
Bulkhead, upper section, middle 		$544.59 1
TO
2 61137951006
Sealing frame left 		$69.37 1
TO
3 61137951005
Holder upper section 		$24.66 1
TO
4 61137951004
Holder lower section 		$58.94 1
TO
5 51717466659
Bulkhead, lower section, left
LHD 		$544.59 1
TO
5 51717466661
Bulkhead, lower section, left
RHD 		$614.01 1
TO
6 51717466660
Bulkhead, lower section, right
LHD 		$544.59 1
TO
6 51717466662
Bulkhead, lower section, right
RHD 		$614.01 1
TO
7 51757428073
Cover, steering gear, front left 		$262.75 1
TO
7 51757428074
Cover, steering gear, front right 		$262.75 1
TO
8 51757409799
Cover, steering gear, rear left 		$485.23 1
TO
8 51757409800
Cover, steering gear, rear right 		$485.23 1
TO
9 07147336362
Plastic nut for coarse threaded pin
M6 		$1.41 11
TO
10 07 14 9213164
Hex Bolt
TS5X20 SW8 D=22
IN STOCK 		$1.24 19
IN
11 07142994134
Fillister head screw 		$1.62 6
TO
12 07129907505
Screw
5 X 16 		$1.94 4
TO
13 07147311312
C-clip plastic nut
TS5 		$1.04 8
TO
14 07119907898
Hex Bolt
M6X20-8.8
IN STOCK 		$1.27 2
IN
15 51451857745
Clamp 		$2.34 2
TO
16 07147169847
Plastic cap nut with washer
D=22MM 		$1.04 2
TO
17 07147306224
Expanding nut
L= 19.9MM 		$1.20 6
TO
