Name: Brake pipe rear
Rating: 5.0 (1 reviews)

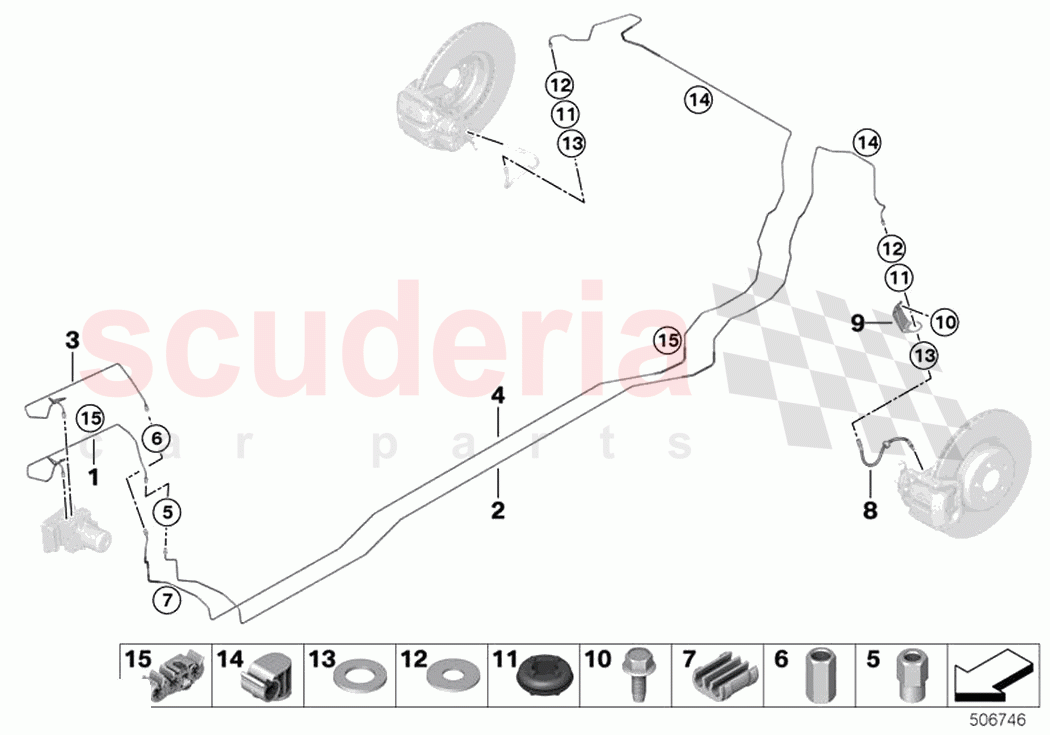

View the exploded parts diagram to find the part you are looking for

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

TO ORDER

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	34306874130	Pipe	$55.90	To Order

Photo	Part No	Description	Price (each)	Stock
	34306890162	Pipe	$55.90	To Order

Photo	Part No	Description	Price (each)	Stock
	34306874132	Pipe	$55.90	To Order

Photo	Part No	Description	Price (each)	Stock
	34306890163	Pipe	$55.90	To Order

Photo	Part No	Description	Price (each)	Stock
	34326868934	Connection piece	$11.16	To Order

Photo	Part No	Description	Price (each)	Stock
	34326868935	Connection piece	$10.86	To Order

Photo	Part No	Description	Price (each)	Stock
	34 32 1107991	Spacer holder	$5.63	To Order

Photo	Part No	Description	Price (each)	Stock
	34206861806	Brake hose rear	$59.72	To Order

Photo	Part No	Description	Price (each)	Stock
	07 13 1025735	Screw, self tapping	$1.20	To Order

Photo	Part No	Description	Price (each)	Stock
	34306875170	Rubber grommet	$3.65	To Order

Photo	Part No	Description	Price (each)	Stock
	37 13 1114028	Washer	$2.42	To Order

Photo	Part No	Description	Price (each)	Stock
	34 30 1163613	Washer	$2.04	To Order

Photo	Part No	Description	Price (each)	Stock
	34326855500	Brake pipe bracket	$1.38	To Order

Photo	Part No	Description	Price (each)	Stock
	34306886415	Line clip, triple	$4.01	To Order

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Key
1	34306874130	Pipe	34306874130 Pipe	$55.90	1	TO
2	34306890162	Pipe	34306890162 Pipe	$55.90	1	TO
3	34306874132	Pipe	34306874132 Pipe	$55.90	1	TO
4	34306890163	Pipe	34306890163 Pipe	$55.90	1	TO
5	34326868934	Connection piece	34326868934 Connection piece M10X1	$11.16	1	TO
6	34326868935	Connection piece	34326868935 Connection piece M12X1	$10.86	1	TO
7	34 32 1107991	Spacer holder	34 32 1107991 Spacer holder	$5.63	1	TO
8	34206861806	Brake hose rear	34206861806 Brake hose rear	$59.72	2	TO
9	34306875485	Holder, brake hose, rear left	34306875485 Holder, brake hose, rear left	$40.80	1	TO
9	34306875486	Holder, brake hose, rear right	34306875486 Holder, brake hose, rear right	$40.80	1	TO
10	07 13 1025735	Screw, self tapping	07 13 1025735 Screw, self tapping M6X16MM	$1.20	4	TO
11	34306875170	Rubber grommet	34306875170 Rubber grommet	$3.65	2	TO
12	37 13 1114028	Washer	37 13 1114028 Washer 10X25X1,5-ZNS3	$2.42	2	TO
13	34 30 1163613	Washer	34 30 1163613 Washer 14X25X2-ZNS3	$2.04	2	TO
14	34326855500	Brake pipe bracket	34326855500 Brake pipe bracket	$1.38	3	TO
15	34306886415	Line clip, triple	34306886415 Line clip, triple	$4.01	2	TO

Brake Pipe Rear

Rolls Royce Ghost Extended RR22(2019-2023)
