Name: Cooling system exhaust turbocharger
Rating: 5.0 (1 reviews)

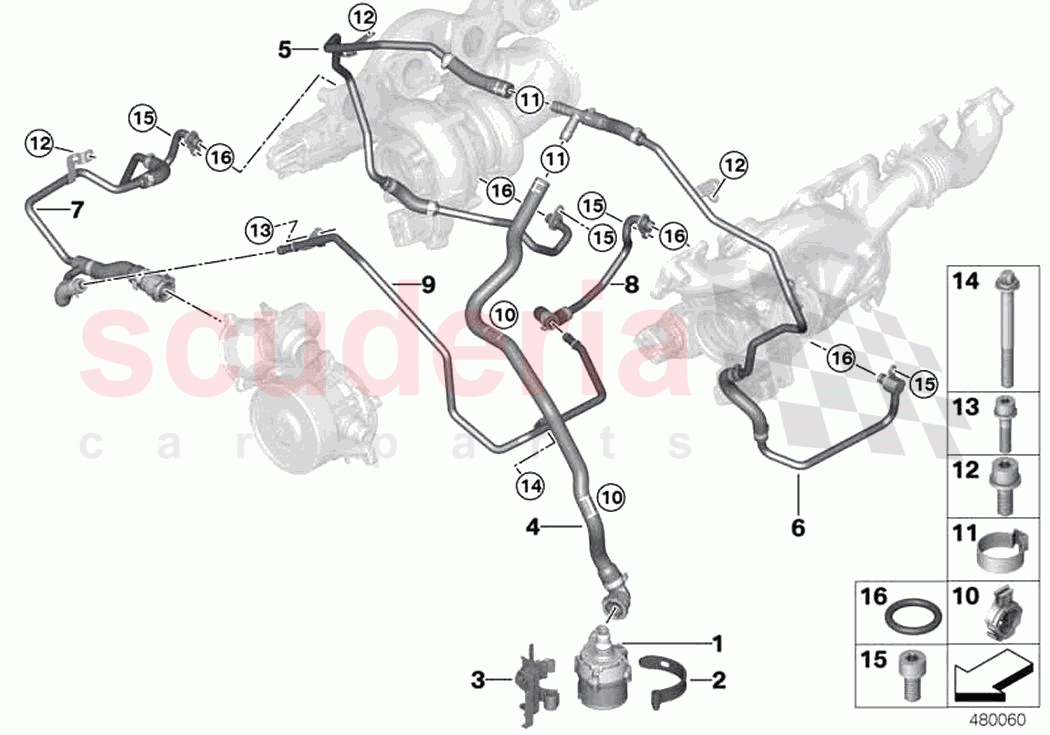

View the exploded parts diagram to find the part you are looking for

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

TO ORDER

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	11519470045	Auxiliary water pump	$164.61	To Order

Photo	Part No	Description	Price (each)	Stock
	17118632138	Rubber band	$11.43	To Order

Photo	Part No	Description	Price (each)	Stock
	17119425930	Bracket additional water pump	$36.89	To Order

Photo	Part No	Description	Price (each)	Stock
	11538654390	Coolant line, flow to turbocharger	$123.84	To Order

Photo	Part No	Description	Price (each)	Stock
	11538654391	Coolant line, flow to turbocharger	$155.67	To Order

Photo	Part No	Description	Price (each)	Stock
	11538654394	Coolant line, return from turbocharger	$155.67	To Order

Photo	Part No	Description	Price (each)	Stock
	11538654395	Coolant line, return from turbocharger	$70.71	To Order

Photo	Part No	Description	Price (each)	Stock
	11538654396	Coolant line, return from turbocharger	$95.53	To Order

Photo	Part No	Description	Price (each)	Stock
	64219222656	Hose clamp	$2.72	To Order

Photo	Part No	Description	Price (each)	Stock
	11 15 1726339	Hose clamp	$1.36	To Order

Photo	Part No	Description	Price (each)	Stock
	07 12 9904819	Torx-bolt with washer	$1.21	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	07 12 9905569	Torx bolt	$1.13	To Order

Photo	Part No	Description	Price (each)	Stock
	07 12 9905906	ASA-Bolt	$4.94	To Order

Photo	Part No	Description	Price (each)	Stock
	07129903804	ISA screw	$3.06	To Order

Photo	Part No	Description	Price (each)	Stock
	11537610049	O-ring	$1.76	To Order

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Key
1	11519470045	Auxiliary water pump	11519470045 Auxiliary water pump	$164.61	1	TO
2	17118632138	Rubber band	17118632138 Rubber band	$11.43	1	TO
3	17119425930	Bracket additional water pump	17119425930 Bracket additional water pump	$36.89	1	TO
5	11538654390	Coolant line, flow to turbocharger	11538654390 Coolant line, flow to turbocharger ZYL. 1-6	$123.84	1	TO
6	11538654391	Coolant line, flow to turbocharger	11538654391 Coolant line, flow to turbocharger ZYL. 7-12	$155.67	1	TO
7	11538654394	Coolant line, return from turbocharger	11538654394 Coolant line, return from turbocharger ZYL. 1-6	$155.67	1	TO
8	11538654395	Coolant line, return from turbocharger	11538654395 Coolant line, return from turbocharger ZYL. 7-12	$70.71	1	TO
9	11538654396	Coolant line, return from turbocharger	11538654396 Coolant line, return from turbocharger ZYL. 7-12	$95.53	1	TO
10	64219222656	Hose clamp	64219222656 Hose clamp D=23MM	$2.72	2	TO
11	11 15 1726339	Hose clamp	11 15 1726339 Hose clamp 21,3MM	$1.36	2	TO
12	07 12 9904819	Torx-bolt with washer IN STOCK	07 12 9904819 Torx-bolt with washer M6X16-8.8-ZNNIV IN STOCK	$1.21	3	IN
13	07 12 9905569	Torx bolt	07 12 9905569 Torx bolt M6X25-ZNNIV SI	$1.13	1	TO
14	07 12 9905906	ASA-Bolt	07 12 9905906 ASA-Bolt M8X80 ZNNIV	$4.94	1	TO
15	07129903804	ISA screw	07129903804 ISA screw M6X10-8.8-ZNS3	$3.06	4	TO
16	11537610049	O-ring	11537610049 O-ring 9,7X1,5MM	$1.76	4	TO

Cooling System Exhaust Turbocharger

Rolls Royce Ghost Extended RR22(2019-2023)
