Name: Refrigerant lines rear A C
Rating: 5.0 (1 reviews)

View All

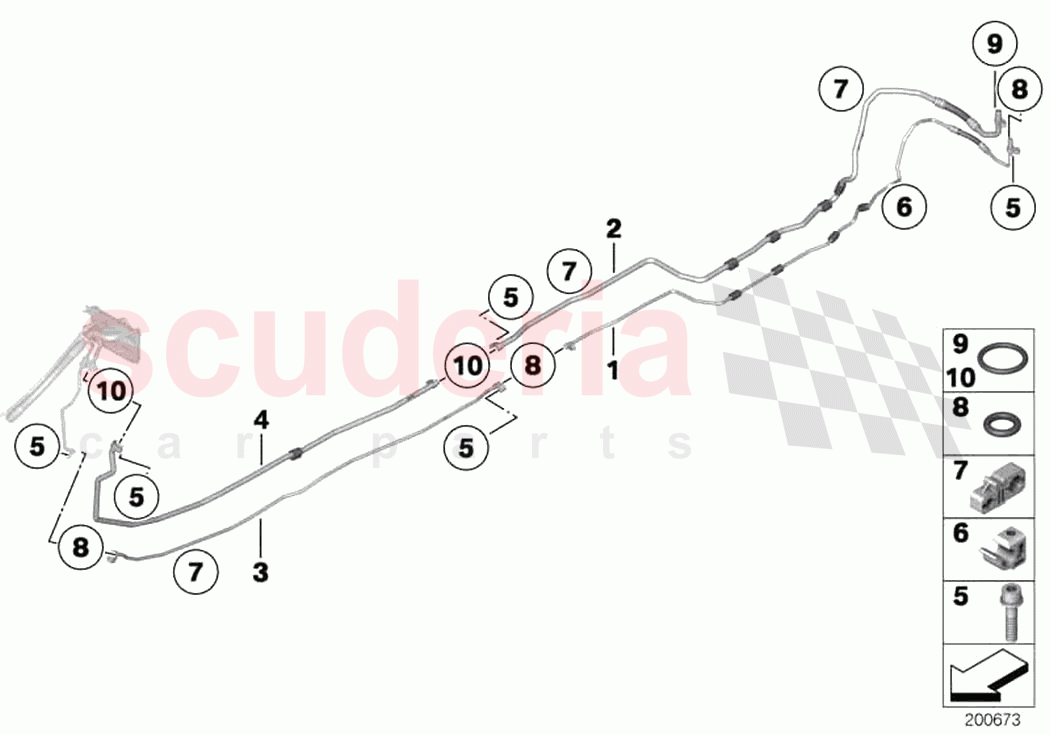

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	64539167144	Pressure line, underfloor, part 2	$251.42	To Order

Photo	Part No	Description	Price (each)	Stock
	64539167140	Suction line, underfloor, part 2	$311.28	To Order

Photo	Part No	Description	Price (each)	Stock
	64539167143	Pressure line, underfloor, part 1	$203.50	To Order

Photo	Part No	Description	Price (each)	Stock
	64509168374	Suction pipe	$301.10	To Order

Photo	Part No	Description	Price (each)	Stock
	7129905558	Internal Torx screw with washer	$1.16	To Order

Photo	Part No	Description	Price (each)	Stock
	35511161876	Pipe clamp	$2.42	To Order

Photo	Part No	Description	Price (each)	Stock
	64539167146	Dual clip	$33.70	To Order

Photo	Part No	Description	Price (each)	Stock
	64508374959	Gasket ring	$8.64	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	64538375742	Gasket ring	$10.12	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	64508375741	Gasket ring	$3.81	IN STOCK

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	64539167144	Pressure line, underfloor, part 2	64539167144 Pressure line, underfloor, part 2	$251.42	1
2	64539167140	Suction line, underfloor, part 2	64539167140 Suction line, underfloor, part 2	$311.28	1
3	64539167143	Pressure line, underfloor, part 1	64539167143 Pressure line, underfloor, part 1	$203.50	1
4	64509168374	Suction pipe	64509168374 Suction pipe	$301.10	1
5	7129905558	Internal Torx screw with washer	7129905558 Internal Torx screw with washer M6X25-U1-8.8	$1.16	6
6	35511161876	Pipe clamp	35511161876 Pipe clamp	$2.42	1
7	64539167146	Dual clip	64539167146 Dual clip	$33.70	4
8	64508374959	Gasket ring IN STOCK	64508374959 Gasket ring 9,5X2,5 IN STOCK	$8.64	3
9	64538375742	Gasket ring IN STOCK	64538375742 Gasket ring D=13,7 MM IN STOCK	$10.12	1
10	64508375741	Gasket ring IN STOCK	64508375741 Gasket ring D=10,8 MM IN STOCK	$3.81	2

Refrigerant Lines Rear A C

Rolls Royce Ghost RR4(2017-2019)
