Name: Flexible discs centre mount insert nut
Rating: 5.0 (1 reviews)

Flexible discs centre mount insert nut of Rolls Royce Rolls Royce Ghost RR4(2017-2019)

View All

Rolls Royce Ghost RR4(2017-2019) - Flexible discs centre mount insert nut

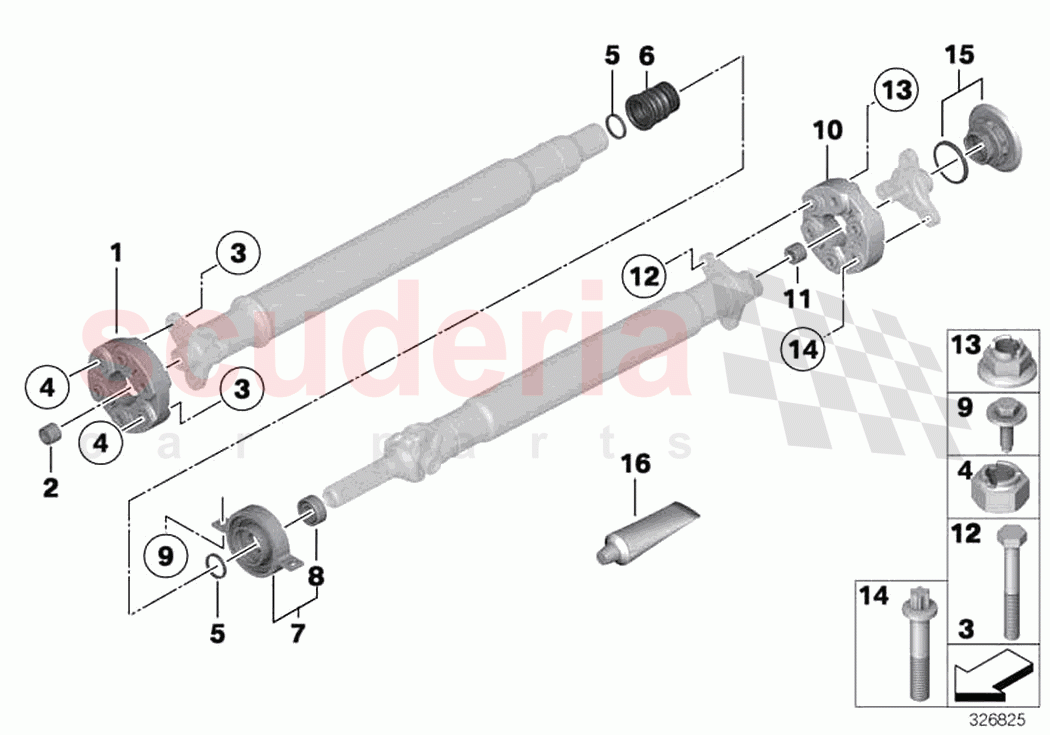

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	26117514207	Universal joint	$254.61	To Order

Photo	Part No	Description	Price (each)	Stock
	26117526611	Centering sleeve	$8.55	To Order

Photo	Part No	Description	Price (each)	Stock
	26117527475	Hex Bolt	$6.28	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	33326760368	Hexagon nut with collar	$3.86	To Order

Photo	Part No	Description	Price (each)	Stock
	26117527617	Damper ring	$4.87	To Order
	26117581110	Damper ring	$4.87	To Order

Photo	Part No	Description	Price (each)	Stock
	26117526628	Rubber boot, centre bearing	$17.28	To Order

Photo	Part No	Description	Price (each)	Stock
	26128624826	Centre Mount, aluminium	$202.66	To Order
	26128624826	Centre Mount, aluminium	$202.66	To Order
	26127621278	Centre Mount, aluminium	$202.66	To Order

Photo	Part No	Description	Price (each)	Stock
	26121225002	Grooved ball bearing	$65.31	To Order

Photo	Part No	Description	Price (each)	Stock
	26127521853	Hex Bolt with washer	$1.72	To Order

Photo	Part No	Description	Price (each)	Stock
	26117526806	Centering sleeve hard	$29.17	To Order
	26117562574	Centering sleeve hard	$36.82	To Order

Photo	Part No	Description	Price (each)	Stock
	26118607971	Torx screw	$5.32	To Order

Photo	Part No	Description	Price (each)	Stock
	33127607158	Repair kit insert nut	$41.03	To Order

Photo	Part No	Description	Price (each)	Stock
	83190447919	Lubricating mat.Optitemp 2 LN 584 LO	Enquire	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	26117514207	Universal joint	26117514207 Universal joint LK=110MM	$254.61	1
2	26117526611	Centering sleeve	26117526611 Centering sleeve	$8.55	1
3	26117527475	Hex Bolt IN STOCK	26117527475 Hex Bolt M12X1,5X71-ZNS3 IN STOCK	$6.28	3
4	33326760368	Hexagon nut with collar	33326760368 Hexagon nut with collar M12X1,5-10 ZNS3	$3.86	3
5	26117527617	Damper ring	26117527617 Damper ring D=39/D=35; from 11.2009	$4.87	2
5	26117581110	Damper ring	26117581110 Damper ring D=38/D=33; to 11.2009	$4.87	2
6	26117526628	Rubber boot, centre bearing	26117526628 Rubber boot, centre bearing	$17.28	1
7	26128624826	Centre Mount, aluminium	26128624826 Centre Mount, aluminium	$202.66	1
7	26128624826	Centre Mount, aluminium	26128624826 Centre Mount, aluminium from 08.2016	$202.66	1
7	26127621278	Centre Mount, aluminium	26127621278 Centre Mount, aluminium to 12.2012	$202.66	1
8	26121225002	Grooved ball bearing	26121225002 Grooved ball bearing D=55/D=35	$65.31	1
9	26127521853	Hex Bolt with washer	26127521853 Hex Bolt with washer M8X24-8.8-ZNS3	$1.72	2
11	26117526806	Centering sleeve hard	26117526806 Centering sleeve hard from 04.2010	$29.17	1
11	26117562574	Centering sleeve hard	26117562574 Centering sleeve hard to 04.2010	$36.82	1
14	26118607971	Torx screw	26118607971 Torx screw M12X1,5X55-ZNS3	$5.32	3
15	33127607158	Repair kit insert nut	33127607158 Repair kit insert nut M39X1,5X20	$41.03	1
16	83190447919	Lubricating mat.Optitemp 2 LN 584 LO	83190447919 Lubricating mat.Optitemp 2 LN 584 LO 100G	-	1	Enquire

Flexible Discs Centre Mount Insert Nut

Rolls Royce Ghost RR4(2017-2019)

Rolls Royce Ghost RR4(2017-2019) - Flexible discs centre mount insert nut
