Fuel Pipe And Mounting Parts

Rolls Royce Ghost RR4(2017-2019)

Find Your Part

Rolls Royce Ghost RR4(2017-2019) - Fuel Pipe and Mounting Parts

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
16 12 7204356 Scavenging line front $162.56 To Order
Photo Part No Description Price (each) Stock
16 12 7204357 Feed line, front $301.64 To Order
Photo Part No Description Price (each) Stock
16 12 7201506 Scavenge air line $101.69 To Order
16127228004 Scavenge air line $106.62 To Order
16127247555 Scavenge air line $310.37 To Order
Photo Part No Description Price (each) Stock
16 12 7201511 Feed line, rear Enquire To Order
16127227999 Feed line, rear $106.62 To Order
16127267959 Feed line, rear $301.64 To Order
Photo Part No Description Price (each) Stock
16 12 7199667 Pipe clip $16.64 To Order
Photo Part No Description Price (each) Stock
07129901130 ISA screw $1.09 To Order
Photo Part No Description Price (each) Stock
16 12 7199665 Line clip, triple $8.03 To Order
Photo Part No Description Price (each) Stock
16 12 7213370 Line clip, triple $4.01 To Order
Photo Part No Description Price (each) Stock
16 12 7202598 Spacer $8.24 To Order
Photo Part No Description Price (each) Stock
16 12 7202597 Spacer $7.72 To Order
Photo Part No Description Price (each) Stock
16 12 6766397 Pipe clip $1.38 To Order
Photo Part No Description Price (each) Stock
61137838241 Toothed ring $4.87 To Order

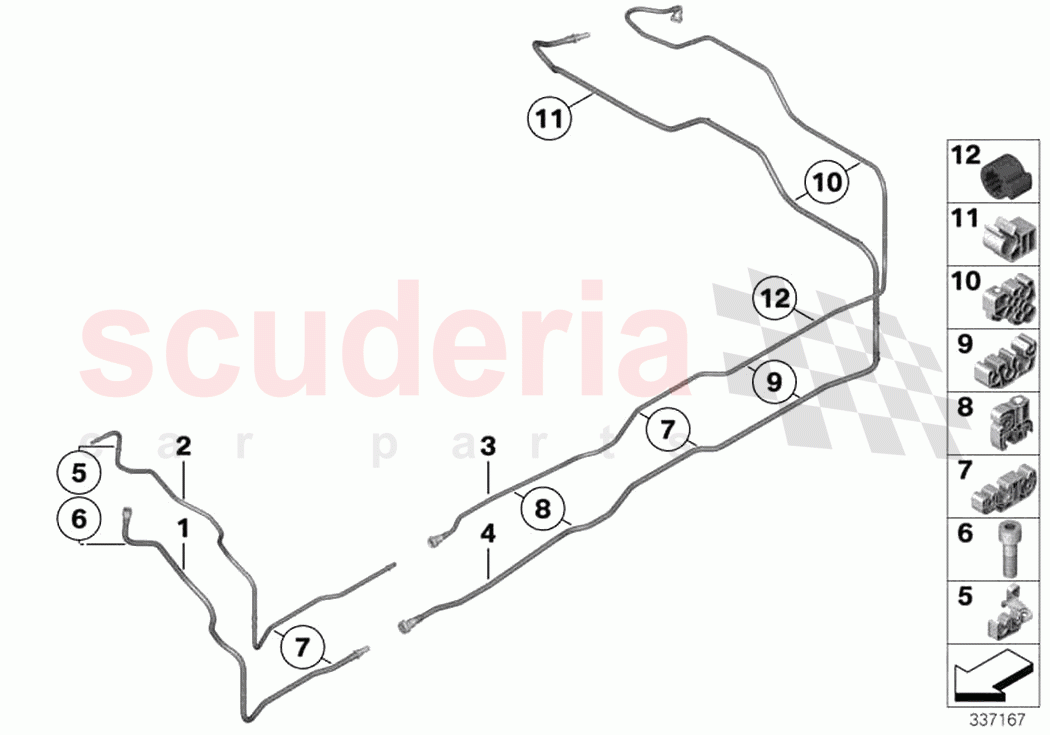

Fuel Pipe and Mounting Parts of Rolls Royce Rolls Royce Ghost RR4(2017-2019) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 16 12 7204356
Scavenging line front 		$162.56 1
TO
2 16 12 7204357
Feed line, front 		$301.64 1
TO
3 16 12 7201506
Scavenge air line
from 07.2012 		$101.69 1
TO
3 16127228004
Scavenge air line 		$106.62 1
TO
3 16127247555
Scavenge air line 		$310.37 1
TO
4 16 12 7201511
Feed line, rear
from 07.2012 		- 1
PE
 Enquire
4 16127227999
Feed line, rear 		$106.62 1
TO
4 16127267959
Feed line, rear 		$301.64 1
TO
5 16 12 7199667
Pipe clip 		$16.64 1
TO
6 07129901130
ISA screw
M6X20-8.8-ZNNIV 		$1.09 1
TO
7 16 12 7199665
Line clip, triple 		$8.03 7
TO
8 16 12 7213370
Line clip, triple 		$4.01 1
TO
9 16 12 7202598
Spacer 		$8.24 1
TO
10 16 12 7202597
Spacer 		$7.72 2
TO
11 16 12 6766397
Pipe clip
D14 		$1.38 3
TO
12 61137838241
Toothed ring 		$4.87 1
TO
