Name: Crankshaft Connecting Rod
Rating: 5.0 (1 reviews)

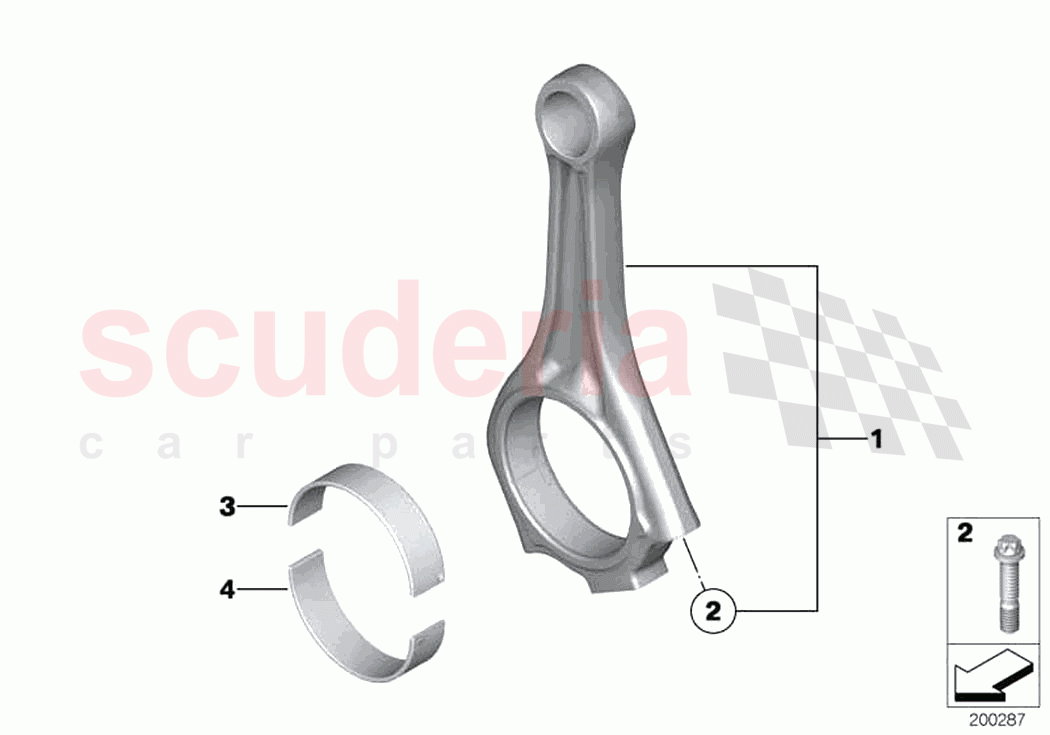

View the exploded parts diagram to find the part you are looking for

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

TO ORDER

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	11247603480	Connecting rod	$274.79	To Order

Photo	Part No	Description	Price (each)	Stock
	11 24 7516322	Connecting rod bolt	$5.32	To Order

...and 1 more part variants. See table on right for more details.

...and 1 more part variants. See table on right for more details.

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Key
1	11247603480	Connecting rod	11247603480 Connecting rod L=138,5MM	$274.79	12	TO
2	11 24 7516322	Connecting rod bolt	11 24 7516322 Connecting rod bolt	$5.32	24	TO
3	11 24 7548795	Bearing shell, blue	11 24 7548795 Bearing shell, blue 54,00MM(0); from 03.2011	$73.66	12	TO
3	11 24 7572225	Bearing shell, blue	11 24 7572225 Bearing shell, blue 54,00MM(0); to 03.2011	$45.11	12	TO
3	11 24 7593228	Bearing shell, blue	11 24 7593228 Bearing shell, blue 53,75MM(+0,25); from 03.2011	$63.22	12	TO
3	11 24 7580668	Bearing shell, blue	11 24 7580668 Bearing shell, blue 53,75MM(+0,25); to 03.2011	$45.11	12	TO
4	11 24 7544648	Bearing shell, red	11 24 7544648 Bearing shell, red 54,00MM(0); from 03.2011	$45.11	12	TO
4	11 24 7572228	Bearing shell, red	11 24 7572228 Bearing shell, red 54,00MM(0); to 03.2011	$45.11	12	TO
4	11 24 7544650	Bearing shell, red	11 24 7544650 Bearing shell, red 53,75MM(+0,25); from 03.2011	$45.11	12	TO
4	11 24 7580673	Bearing shell, red	11 24 7580673 Bearing shell, red 53,75MM(+0,25); to 03.2011	$43.95	12	TO
