Heat Exch Transmission Oil Cooler Line

Rolls Royce Ghost RR4(2017-2019)

Find Your Part

Rolls Royce Ghost RR4(2017-2019) - Heat exch transmission oil cooler line

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
17217638678 Transmission oil cooler $402.47 To Order
Photo Part No Description Price (each) Stock
07 12 9904553 Hex nut with plate $0.91 IN STOCK
Photo Part No Description Price (each) Stock
17 11 7536971 Screw, self tapping $1.29 IN STOCK
Photo Part No Description Price (each) Stock
11 42 7789289 Clip nut $1.41 To Order
Photo Part No Description Price (each) Stock
17 22 7603918 Oil cooling pipe inlet $447.88 To Order
17228644790 Oil cooling pipe inlet $492.61 To Order
Photo Part No Description Price (each) Stock
17 22 7800958 O-ring $4.77 IN STOCK
Photo Part No Description Price (each) Stock
17 22 7603919 Oil cooling pipe outlet $509.25 To Order
17228644791 Oil cooling pipe outlet $492.61 To Order
Photo Part No Description Price (each) Stock
17 22 7555715 Locking screw $1.66 IN STOCK
Photo Part No Description Price (each) Stock
07 11 9903994 Hex Bolt with washer $0.80 To Order
Photo Part No Description Price (each) Stock
17 22 7575461 Pipe clip $4.01 To Order
Photo Part No Description Price (each) Stock
17 22 7579121 Spacer $4.72 To Order
Photo Part No Description Price (each) Stock
17 22 7591176 Bracket, oil cooler line $15.64 To Order
Photo Part No Description Price (each) Stock
17 22 7595232 Bracket, oil cooler line $26.87 To Order
Photo Part No Description Price (each) Stock
07119905525 Hex Bolt with washer $0.68 To Order
Photo Part No Description Price (each) Stock
17 22 7596825 Bracket, oil cooler line $22.40 To Order
Photo Part No Description Price (each) Stock
17 12 7533721 Hose clamp $22.96 To Order
Photo Part No Description Price (each) Stock
07 14 6958688 Fillister head screw $3.49 To Order

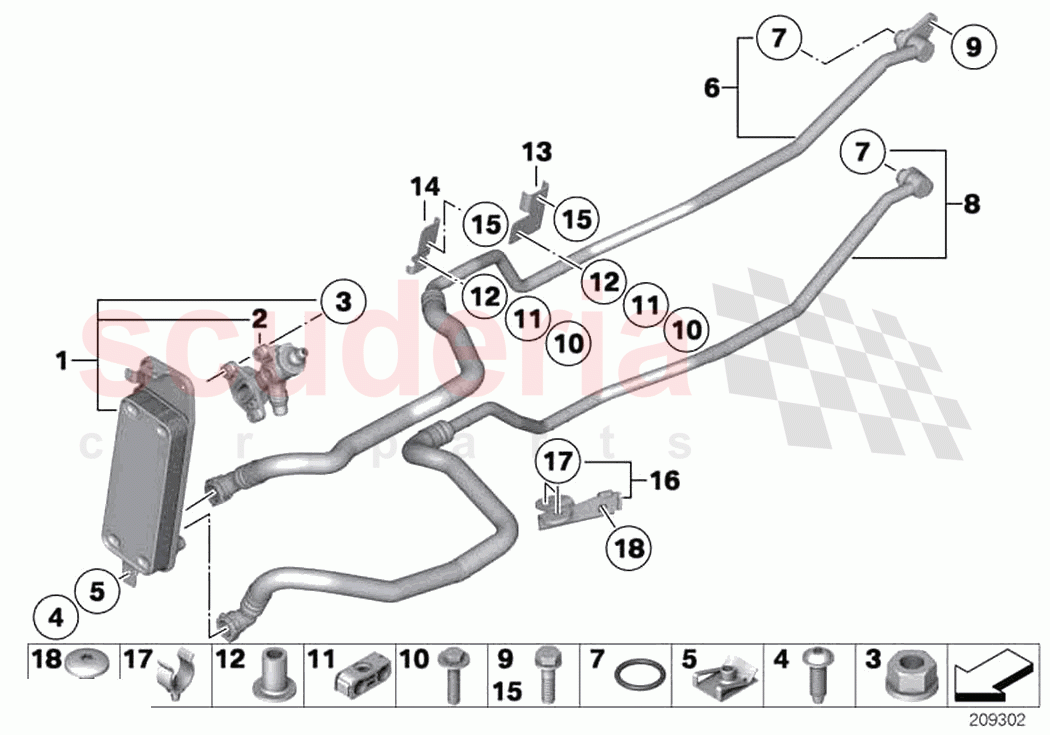

Heat exch transmission oil cooler line of Rolls Royce Rolls Royce Ghost RR4(2017-2019) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- 11 53 1436850
Blind plug
D=8; to 10.2010 		$7.17 1
TO
1 17217638678
Transmission oil cooler
from 10.2010 		$402.47 1
TO
3 07 12 9904553
Hex nut with plate
AM6-8-ZNNIV SI; from 03.2015
IN STOCK 		$0.91 3
IN
4 17 11 7536971
Screw, self tapping
D6X20 ZNS3
IN STOCK 		$1.29 1
IN
5 11 42 7789289
Clip nut
M6-ZNS3 		$1.41 1
TO
6 17 22 7603918
Oil cooling pipe inlet
from 03.2015 		$447.88 1
TO
6 17228644790
Oil cooling pipe inlet
to 03.2015 		$492.61 1
TO
7 17 22 7800958
O-ring
13,65X2,62
IN STOCK 		$4.77 2
IN
8 17 22 7603919
Oil cooling pipe outlet
from 03.2015 		$509.25 1
TO
8 17228644791
Oil cooling pipe outlet
to 03.2015 		$492.61 1
TO
9 17 22 7555715
Locking screw
M8X28-Z3
IN STOCK 		$1.66 1
IN
10 07 11 9903994
Hex Bolt with washer
M6X30-U2-ZNS3 		$0.80 2
TO
11 17 22 7575461
Pipe clip 		$4.01 2
TO
12 17 22 7579121
Spacer 		$4.72 2
TO
13 17 22 7591176
Bracket, oil cooler line 		$15.64 1
TO
14 17 22 7595232
Bracket, oil cooler line 		$26.87 1
TO
15 07119905525
Hex Bolt with washer
M6X14-U1-8.8 		$0.68 2
TO
16 17 22 7596825
Bracket, oil cooler line 		$22.40 1
TO
17 17 12 7533721
Hose clamp 		$22.96 2
TO
18 07 14 6958688
Fillister head screw
M6X14 		$3.49 1
TO
