Name: Engine bonnet closing system
Rating: 4.6 (1 reviews)

Engine bonnet closing system of Rolls Royce Rolls Royce Ghost RR21(2019-2023)

View All

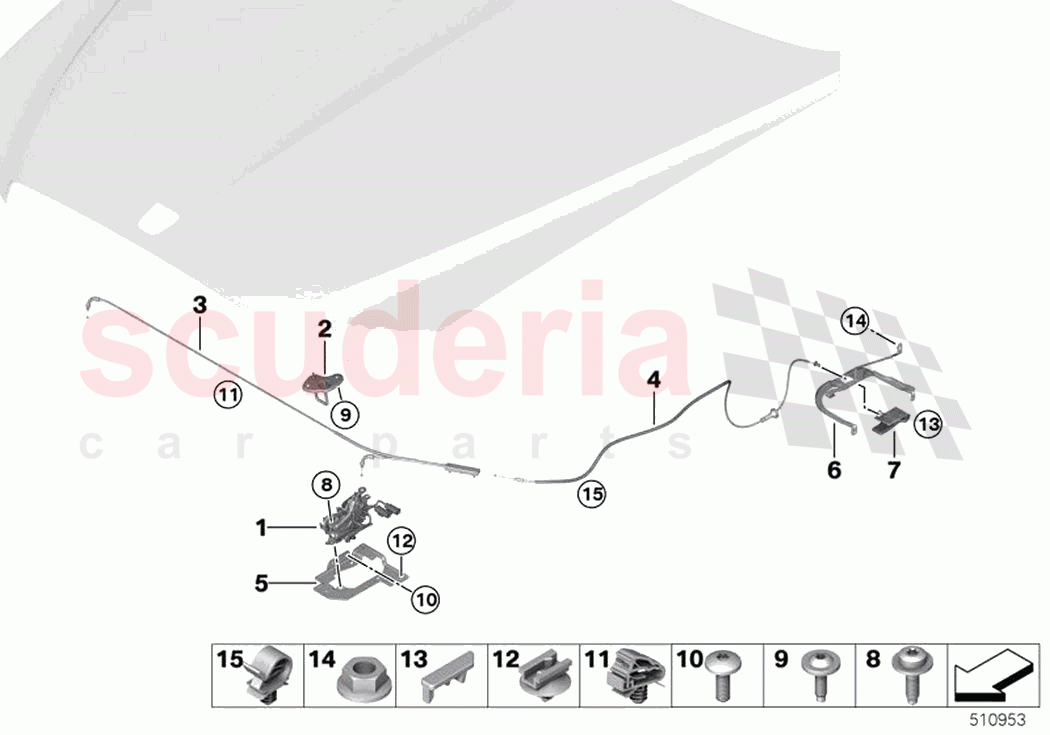

Rolls Royce Ghost RR21(2019-2023) - Engine bonnet closing system

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	51237347404	Lock left	$109.36	To Order
	51237347409	Lock passive	$109.36	To Order
	51237347410	Lock left	$240.60	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	51237473707	Lock top part	$65.59	To Order

Photo	Part No	Description	Price (each)	Stock
	51237495445	Bowden cable, front	$49.89	To Order
	51235A0ED51	Bowden cable, front	$50.90	To Order

Photo	Part No	Description	Price (each)	Stock
	51237495446	Bowden cable, rear	$57.79	To Order

Photo	Part No	Description	Price (each)	Stock
	51237495475	Cover left	$201.09	To Order
	51237495476	Cover right	$201.09	To Order

Photo	Part No	Description	Price (each)	Stock
	51477419771	Holder, bonnet actuator	$421.60	To Order
	51477419772	Holder, bonnet actuator	$446.17	To Order

Photo	Part No	Description	Price (each)	Stock
	51237441224	Lever f engine hood mechanism	$152.76	To Order

Photo	Part No	Description	Price (each)	Stock
	7119908698	Countersunk screw	$2.47	To Order

Photo	Part No	Description	Price (each)	Stock
	7147263759	Oval-head screw with washer	$1.30	To Order

Photo	Part No	Description	Price (each)	Stock
	7142994134	Fillister head screw	$1.62	To Order

Photo	Part No	Description	Price (each)	Stock
	34356767984	Cable clip	$1.00	To Order

Photo	Part No	Description	Price (each)	Stock
	61139152083	Holder, plug connection, ASD	$6.94	To Order

Photo	Part No	Description	Price (each)	Stock
	51239881199	Lock Bowden cable	$32.39	To Order

Photo	Part No	Description	Price (each)	Stock
	7119905544	Hex nut with plate	$0.88	To Order

Photo	Part No	Description	Price (each)	Stock
	12521741316	Tubing support	$1.89	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	51237347404	Lock left	51237347404 Lock left	$109.36	1
1	51237347409	Lock passive	51237347409 Lock passive	$109.36	1
1	51237347410	Lock left	51237347410 Lock left FGS	$240.60	1
1	51237347411	Lock right	51237347411 Lock right FGS	$240.60	1
2	51237473707	Lock top part	51237473707 Lock top part	$65.59	2
3	51237495445	Bowden cable, front	51237495445 Bowden cable, front LL	$49.89	1
3	51235A0ED51	Bowden cable, front	51235A0ED51 Bowden cable, front RL	$50.90	1
4	51237495446	Bowden cable, rear	51237495446 Bowden cable, rear	$57.79	1
5	51237495475	Cover left	51237495475 Cover left	$201.09	1
5	51237495476	Cover right	51237495476 Cover right	$201.09	1
6	51477419771	Holder, bonnet actuator	51477419771 Holder, bonnet actuator LL	$421.60	1
6	51477419772	Holder, bonnet actuator	51477419772 Holder, bonnet actuator RL	$446.17	1
7	51237441224	Lever f engine hood mechanism	51237441224 Lever f engine hood mechanism	$152.76	1
8	7119908698	Countersunk screw	7119908698 Countersunk screw M6X20-PCU2-10.9	$2.47	4
9	7147263759	Oval-head screw with washer	7147263759 Oval-head screw with washer ISA M6X21	$1.30	4
10	7142994134	Fillister head screw	7142994134 Fillister head screw	$1.62	10
11	34356767984	Cable clip	34356767984 Cable clip	$1.00	3
12	61139152083	Holder, plug connection, ASD	61139152083 Holder, plug connection, ASD	$6.94	1
13	51239881199	Lock Bowden cable	51239881199 Lock Bowden cable	$32.39	1
14	7119905544	Hex nut with plate	7119905544 Hex nut with plate M6-8-ZNNIV SI	$0.88	3
15	12521741316	Tubing support	12521741316 Tubing support	$1.89	2

Engine Bonnet Closing System

Rolls Royce Ghost RR21(2019-2023)

Rolls Royce Ghost RR21(2019-2023) - Engine bonnet closing system
