Name: Drive shaft single components 4 wheel
Rating: 4.7 (1 reviews)

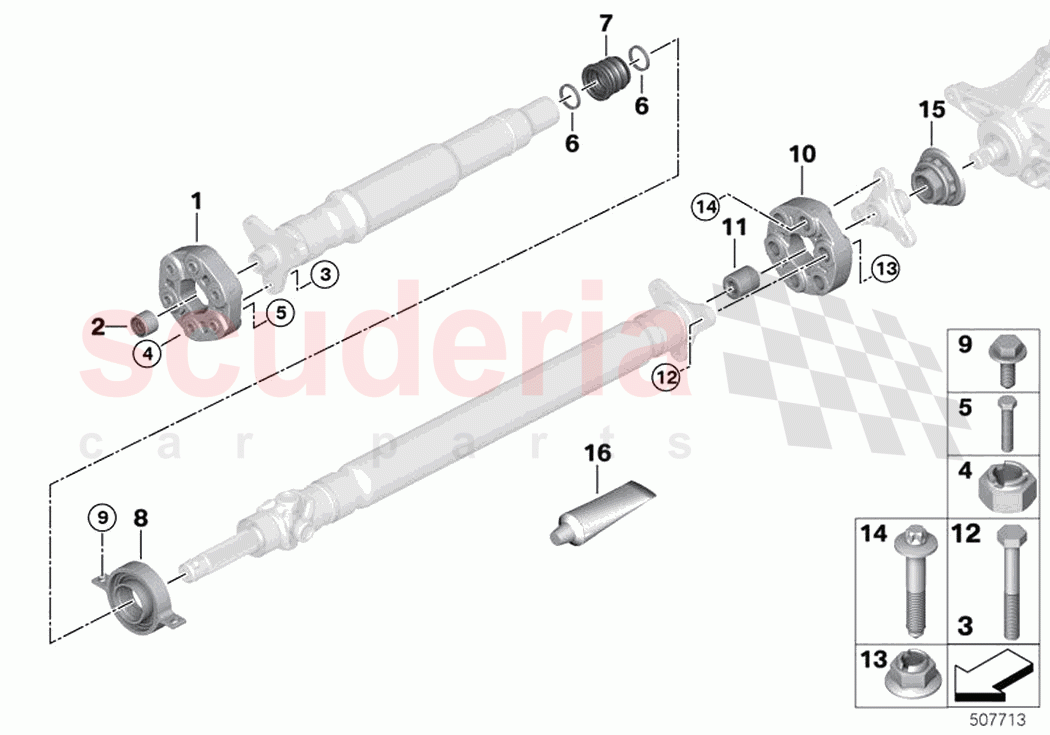

View the exploded parts diagram to find the part you are looking for

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

TO ORDER

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	26117610061	Universal joint	$239.53	To Order

Photo	Part No	Description	Price (each)	Stock
	26 11 7526611	Centering sleeve	$8.44	To Order

Photo	Part No	Description	Price (each)	Stock
	26 11 7527475	Hex Bolt	$6.20	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	33326760368	Hexagon nut with collar	$3.81	To Order

Photo	Part No	Description	Price (each)	Stock
	26117523709	Hex Bolt	$5.26	To Order

Photo	Part No	Description	Price (each)	Stock
	26 11 7581110	Damper ring	$4.81	To Order

Photo	Part No	Description	Price (each)	Stock
	26 11 7526628	Rubber boot, centre bearing	$17.07	To Order

Photo	Part No	Description	Price (each)	Stock
	07119907349	Hex Bolt	$1.96	To Order

Photo	Part No	Description	Price (each)	Stock
	26117546426	Universal joint	$251.52	To Order

Photo	Part No	Description	Price (each)	Stock
	26 11 7562574	Centering sleeve hard	$36.37	To Order

Photo	Part No	Description	Price (each)	Stock
	33 12 7607158	Repair kit insert nut	$40.53	To Order

Photo	Part No	Description	Price (each)	Stock
	83230417754	Grease Optitemp HT 1 LF	$17.99	To Order

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Key	Add to Cart
1	26117610061	Universal joint	26117610061 Universal joint LK=105MM/12	$239.53	1	TO
2	26 11 7526611	Centering sleeve	26 11 7526611 Centering sleeve	$8.44	1	TO
3	26 11 7527475	Hex Bolt IN STOCK	26 11 7527475 Hex Bolt M12X1,5X71-ZNS3 IN STOCK	$6.20	3	IN
4	33326760368	Hexagon nut with collar	33326760368 Hexagon nut with collar M12X1,5-10 ZNS3	$3.81	3	TO
5	26117523709	Hex Bolt	26117523709 Hex Bolt M12X1,5X58-ZNS3	$5.26	3	TO
6	26 11 7581110	Damper ring	26 11 7581110 Damper ring D=38/D=33	$4.81	2	TO
7	26 11 7526628	Rubber boot, centre bearing	26 11 7526628 Rubber boot, centre bearing	$17.07	1	TO
8	26 12 9846613	Centre Mount, aluminium	26 12 9846613 Centre Mount, aluminium from 08.2022	-	1	PE	Enquire
8	26 12 8859751	Centre mount aluminium	26 12 8859751 Centre mount aluminium	-	1	PE	Enquire
9	07119907349	Hex Bolt	07119907349 Hex Bolt AM8X30-8.8-ZNS3	$1.96	2	TO
10	26117546426	Universal joint	26117546426 Universal joint LK=110MM/12	$251.52	1	TO
11	26 11 7562574	Centering sleeve hard	26 11 7562574 Centering sleeve hard	$36.37	1	TO
14	26 11 7526138	Torx screw	26 11 7526138 Torx screw M12X1,5X55-ZNS3	-	3	PE	Enquire
14	26118607971	Torx screw	26118607971 Torx screw M12X1,5X55-ZNS3	$5.26	3	TO
15	33 12 7607158	Repair kit insert nut	33 12 7607158 Repair kit insert nut M39X1,5X20	$40.53	1	TO
16	83230417754	Grease Optitemp HT 1 LF	83230417754 Grease Optitemp HT 1 LF 50G	$17.99	1	TO

Drive Shaft Single Components 4 Wheel

Rolls Royce Ghost RR21(2019-2023)
