Find Your Part

View All

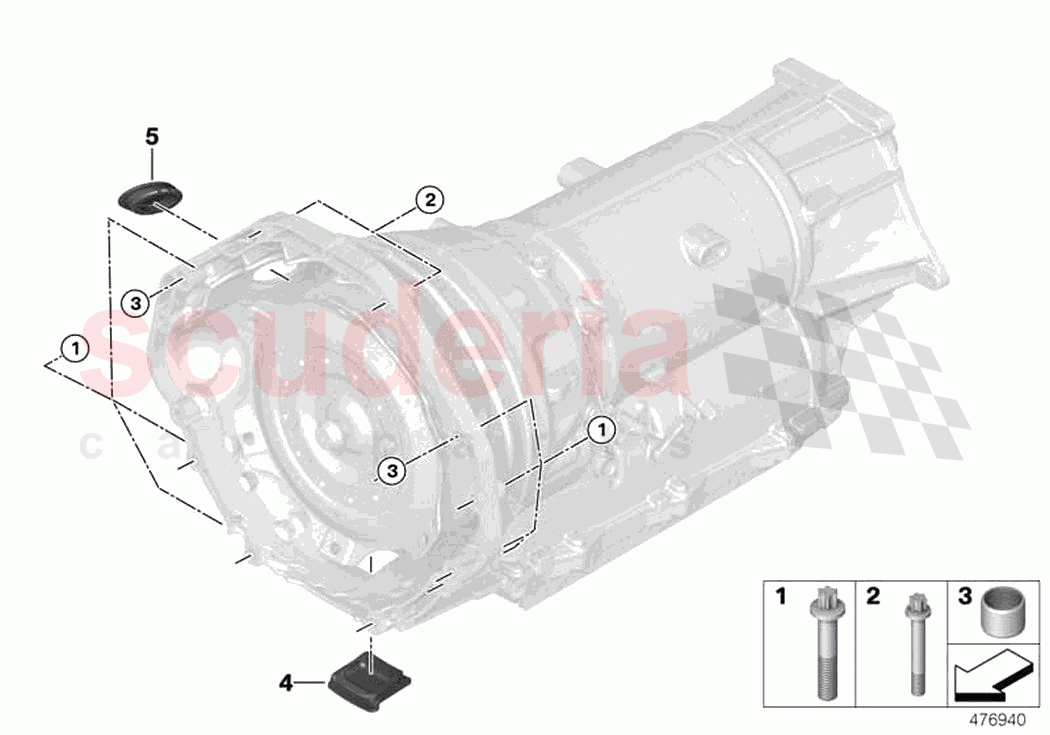

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	23001222888	Torx bolt	$5.54	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	23001222887	ASA-Bolt	$1.36	To Order

Photo	Part No	Description	Price (each)	Stock
	11117524470	Dowel	$1.62	To Order

Photo	Part No	Description	Price (each)	Stock
	24147600852	Cap	$11.01	To Order

Photo	Part No	Description	Price (each)	Stock
	24147590118	Cap	$11.01	To Order

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	23001222888	Torx bolt IN STOCK	23001222888 Torx bolt M10X55-8.8 ZNS3 IN STOCK	$5.54	9
2	23001222887	ASA-Bolt	23001222887 ASA-Bolt M8X50-8.8-ZNS3	$1.36	2
3	11117524470	Dowel	11117524470 Dowel D=14,5MM	$1.62	2
4	24147600852	Cap	24147600852 Cap	$11.01	1
5	24147590118	Cap	24147590118 Cap	$11.01	1
