Fuel Pipe And Mounting Parts

Rolls Royce Ghost Series I (2009-2014)

Find Your Part

Rolls Royce Ghost Series I (2009-2014) - Fuel Pipe and Mounting Parts

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
16 12 7204357 Feed line, front $301.64 To Order
Photo Part No Description Price (each) Stock
16 12 7204356 Scavenging line front $162.56 To Order
Photo Part No Description Price (each) Stock
16 12 7201511 Feed line, rear Enquire To Order
Photo Part No Description Price (each) Stock
16 12 7201506 Scavenge air line $101.69 To Order
Photo Part No Description Price (each) Stock
16 12 7199667 Pipe clip $16.64 To Order
Photo Part No Description Price (each) Stock
07 11 9902824 Fillister head screw Enquire To Order
Photo Part No Description Price (each) Stock
16 12 7199665 Line clip, triple $8.03 To Order
Photo Part No Description Price (each) Stock
16 12 7213370 Line clip, triple $4.01 To Order
Photo Part No Description Price (each) Stock
16 12 7202598 Spacer $8.24 To Order
Photo Part No Description Price (each) Stock
16 12 7202597 Spacer $7.72 To Order
Photo Part No Description Price (each) Stock
16 12 6766397 Pipe clip $1.38 To Order

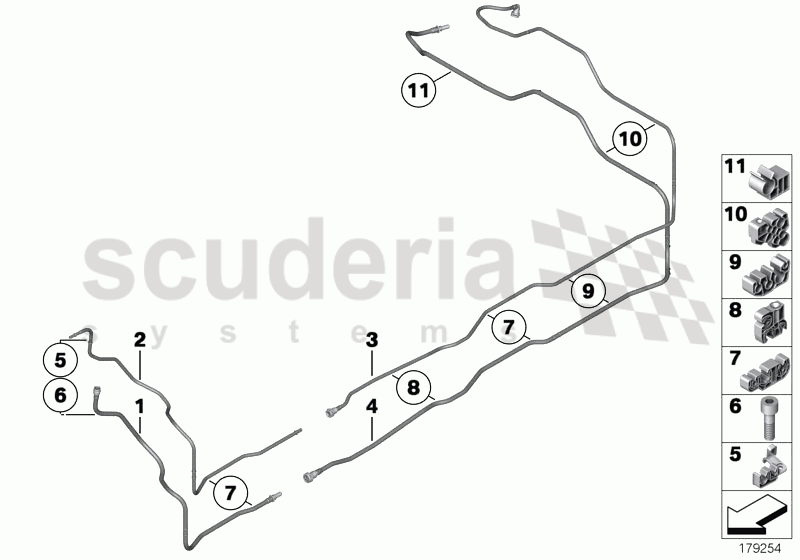

Fuel Pipe and Mounting Parts of Rolls Royce Rolls Royce Ghost Series I (2009-2014) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 16 12 7204357
Feed line, front 		$301.64 -
TO
2 16 12 7204356
Scavenging line front 		$162.56 -
TO
3 16 12 7201511
Feed line, rear 		- -
PE
 Enquire
4 16 12 7201506
Scavenge air line 		$101.69 -
TO
5 16 12 7199667
Pipe clip 		$16.64 -
TO
6 07 11 9902824
Fillister head screw
M6X20-8.8-ZNS3 		- -
PE
 Enquire
7 16 12 7199665
Line clip, triple 		$8.03 -
TO
8 16 12 7213370
Line clip, triple 		$4.01 -
TO
9 16 12 7202598
Spacer 		$8.24 -
TO
10 16 12 7202597
Spacer 		$7.72 -
TO
11 16 12 6766397
Pipe clip
D14 		$1.38 -
TO
