Activated Charcoal Filter Fuel Ventilat

Rolls Royce Dawn RR6(2017-2023)

Find Your Part

Rolls Royce Dawn RR6(2017-2023) - Activated Charcoal Filter FUEL VENTILAT

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
16137215049 Activated Charcoal Filter $662.99 To Order
Photo Part No Description Price (each) Stock
16 13 7193479 Leak diagnosis pump $271.84 IN STOCK
Photo Part No Description Price (each) Stock
16 13 1183912 Sealing grommet $4.51 To Order
Photo Part No Description Price (each) Stock
16137417589 Dust filter $189.22 To Order
Photo Part No Description Price (each) Stock
16 13 1183918 Cap $5.34 To Order
Photo Part No Description Price (each) Stock
07 14 7194471 screw for plastic $1.62 To Order
Photo Part No Description Price (each) Stock
16127366811 Scavenge air line $389.72 IN STOCK
Photo Part No Description Price (each) Stock
16 12 6766397 Pipe clip $1.38 To Order
Photo Part No Description Price (each) Stock
16 12 7199666 Line clip, double $4.01 To Order
Photo Part No Description Price (each) Stock
16117366809 Vent pipe $182.01 To Order
Photo Part No Description Price (each) Stock
16 13 1183931 Cable clip $7.56 To Order

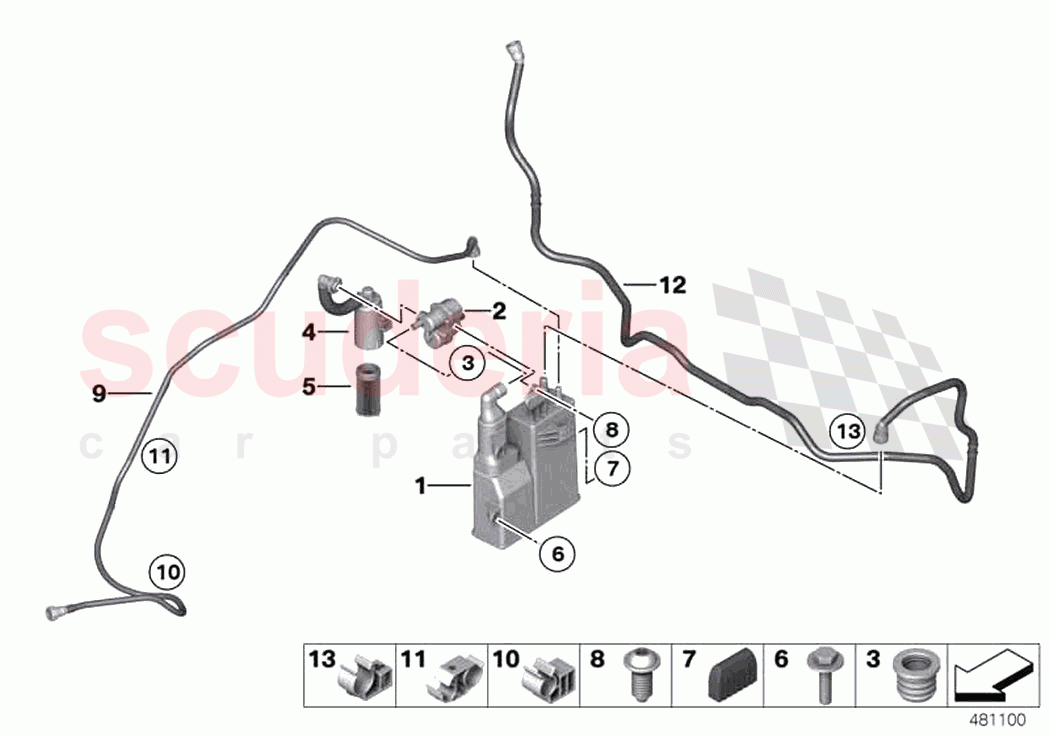

Activated Charcoal Filter FUEL VENTILAT of Rolls Royce Rolls Royce Dawn RR6(2017-2023) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 16137215049
Activated Charcoal Filter 		$662.99 1
TO
2 16 13 7193479
Leak diagnosis pump
IN STOCK 		$271.84 1
IN
3 16 13 1183912
Sealing grommet 		$4.51 1
TO
4 16137417589
Dust filter 		$189.22 1
TO
7 16 13 1183918
Cap 		$5.34 1
TO
8 07 14 7194471
screw for plastic
TS5X12-ZNS3 		$1.62 3
TO
9 16127366811
Scavenge air line
IN STOCK 		$389.72 1
IN
10 16 12 6766397
Pipe clip
D14 		$1.38 2
TO
11 16 12 7199666
Line clip, double 		$4.01 1
TO
12 16117366809
Vent pipe 		$182.01 1
TO
13 16 13 1183931
Cable clip
D18 		$7.56 7
TO
