Engine Block

Rolls Royce Dawn RR6(2017-2023)

Find Your Part

Rolls Royce Dawn RR6(2017-2023) - Engine block

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
11112158071 Engine block with piston $23,919.01 To Order
Photo Part No Description Price (each) Stock
7129904795 ASA-Bolt $5.19 To Order
Photo Part No Description Price (each) Stock
7129905712 ASA-Bolt $3.93 To Order
Photo Part No Description Price (each) Stock
11417508149 Collar screw $5.32 To Order
Photo Part No Description Price (each) Stock
11117628302 Collar screw $5.32 To Order
Photo Part No Description Price (each) Stock
11427584759 Oil Spraying Nozzle $52.95 To Order
Photo Part No Description Price (each) Stock
11117568242 Spacer $19.45 To Order
Photo Part No Description Price (each) Stock
11117568243 Screw $10.70 To Order
Photo Part No Description Price (each) Stock
11111710132 Spacer bush $5.02 To Order
Photo Part No Description Price (each) Stock
11121726238 Dowel $0.98 To Order
Photo Part No Description Price (each) Stock
7119963225 Gasket ring $0.59 IN STOCK
Photo Part No Description Price (each) Stock
7119904539 Screw plug $2.39 To Order
Photo Part No Description Price (each) Stock
11121715657 Dowel $2.24 IN STOCK
Photo Part No Description Price (each) Stock
11117524470 Dowel $1.62 To Order
Photo Part No Description Price (each) Stock
11111743118 Dowel $5.05 To Order
Photo Part No Description Price (each) Stock
11117584776 Connector $40.22 To Order
Photo Part No Description Price (each) Stock
7119963300 Gasket ring $1.83 To Order
Photo Part No Description Price (each) Stock
11117587530 Oil pipe $57.35 To Order
Photo Part No Description Price (each) Stock
11117557325 Collar screw $5.32 To Order
View All

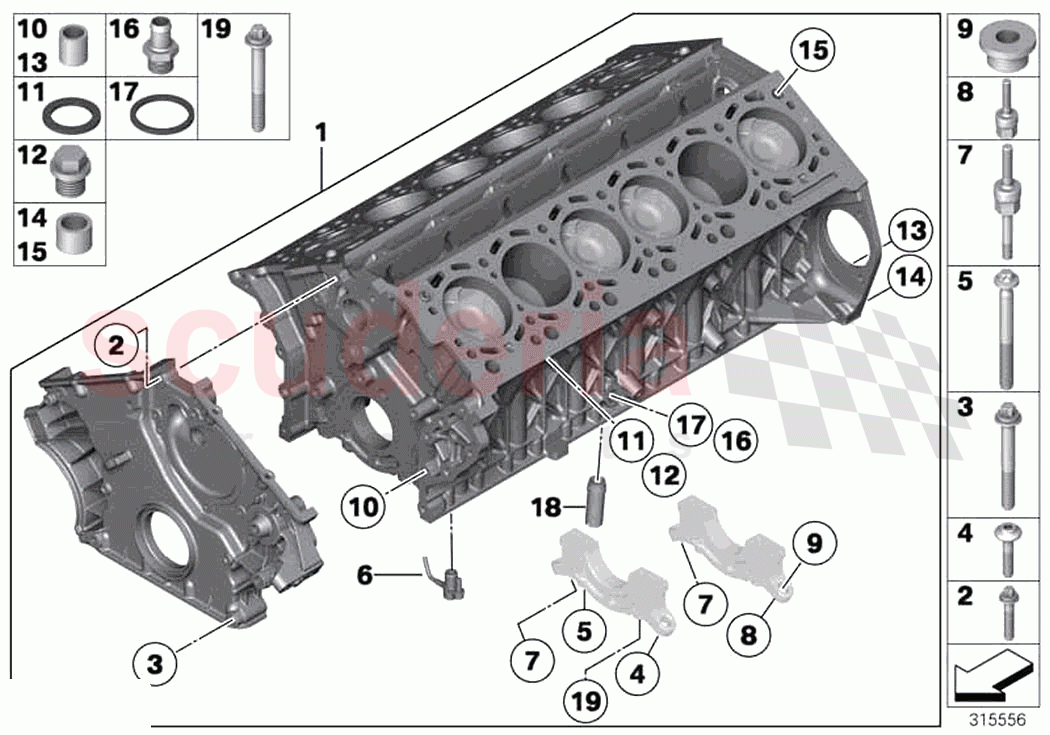

Engine block of Rolls Royce Rolls Royce Dawn RR6(2017-2023) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- 83197515683
Primer Loctite 171000
4ML 		- 1 Enquire
1 11112158071
Engine block with piston 		$23,919.01 1
2 7129904795
ASA-Bolt
M8X40-U1-8.8 		$5.19 3
3 7129905712
ASA-Bolt
M8X65-U1 		$3.93 3
4 11417508149
Collar screw
M8X37 		$5.32 11
5 11117628302
Collar screw
M11X99 		$5.32 14
6 11427584759
Oil Spraying Nozzle 		$52.95 12
7 11117568242
Spacer 		$19.45 2
8 11117568243
Screw 		$10.70 1
9 11111710132
Spacer bush 		$5.02 14
10 11121726238
Dowel
D=10,5MM 		$0.98 2
11 7119963225
Gasket ring
A14X20-AL
IN STOCK 		$0.59 2
12 7119904539
Screw plug
M14X1,5-ZNNIV 		$2.39 2
13 11121715657
Dowel
D=8,3MM
IN STOCK 		$2.24 2
14 11117524470
Dowel
D=14,5MM 		$1.62 2
15 11111743118
Dowel
D=14,5MM 		$5.05 4
16 11117584776
Connector 		$40.22 2
17 7119963300
Gasket ring
A18X22-AL 		$1.83 2
18 11117587530
Oil pipe 		$57.35 2
19 11117557325
Collar screw
M8X70 		$5.32 14
