Levelling Device Pressure Accumulator

Rolls Royce Dawn RR6(2017-2023)

Find Your Part

Rolls Royce Dawn RR6(2017-2023) - Levelling device pressure accumulator

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
37206886059 RP air supply system $1,993.58 IN STOCK
Photo Part No Description Price (each) Stock
07 12 9905411 Hex nut $0.95 To Order
Photo Part No Description Price (each) Stock
37 20 6788733 Vent tubing $212.80 To Order
Photo Part No Description Price (each) Stock
16 13 1183931 Cable clip $7.56 To Order
Photo Part No Description Price (each) Stock
37 20 6782229 Pipe $39.45 To Order
Photo Part No Description Price (each) Stock
37 20 6782228 Pressure accumulator, air supply system $2,289.75 IN STOCK
Photo Part No Description Price (each) Stock
37206863879 Pipe, rear left air spring $203.80 To Order
Photo Part No Description Price (each) Stock
37206863880 Pipe, rear right air spring $203.80 To Order
Photo Part No Description Price (each) Stock
37206863873 Pipe, front left air spring $359.72 To Order
Photo Part No Description Price (each) Stock
37206863874 Pipe, front right air spring $359.72 To Order
Photo Part No Description Price (each) Stock
37 22 1092403 Screwed connection $5.05 To Order
Photo Part No Description Price (each) Stock
34 30 6784201 Line clip, double $4.01 To Order
Photo Part No Description Price (each) Stock
34326855500 Brake pipe bracket $1.38 To Order
Photo Part No Description Price (each) Stock
37 22 6776050 Pipe clip $1.38 To Order
Photo Part No Description Price (each) Stock
34326880898 Brake pipe bracket $5.01 To Order
Photo Part No Description Price (each) Stock
34317707371 Tandem clamp $3.52 To Order
Photo Part No Description Price (each) Stock
61138370478 Cable tie $0.74 To Order
Photo Part No Description Price (each) Stock
51721866416 Edge protection $16.04 To Order
Photo Part No Description Price (each) Stock
37 14 6756263 Pressure sensor $192.20 IN STOCK

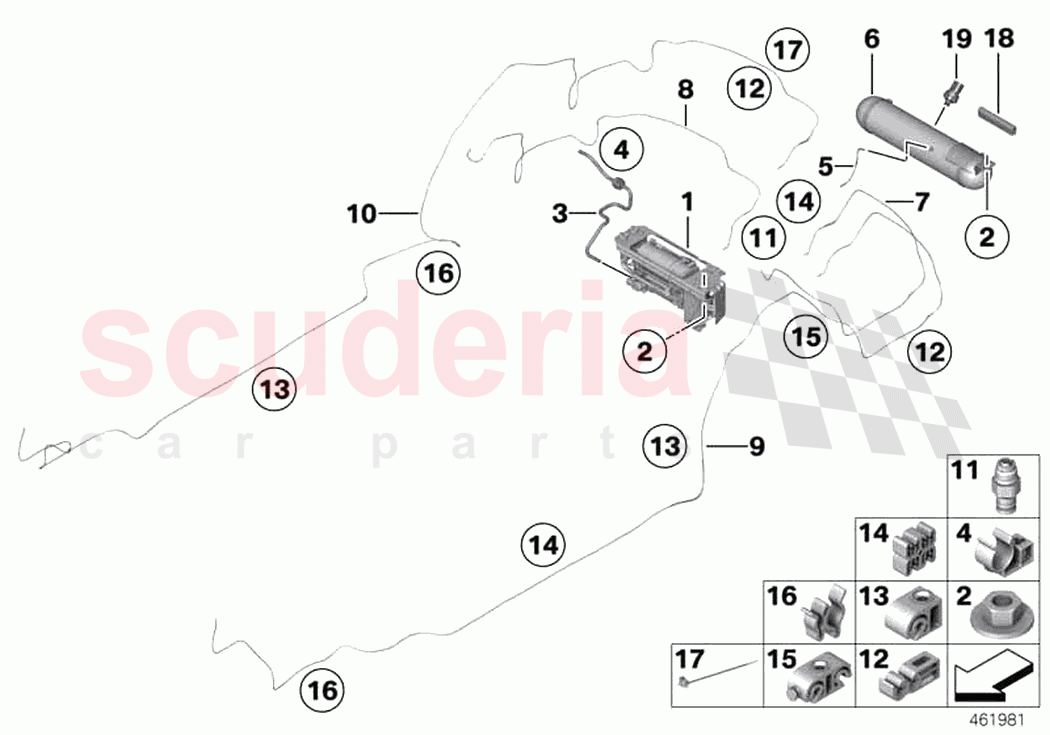

Levelling device pressure accumulator of Rolls Royce Rolls Royce Dawn RR6(2017-2023) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- 61 36 6901469
Relay, make contact, black
IN STOCK 		$24.69 1
IN
1 37206886059
RP air supply system
IN STOCK 		$1,993.58 1
IN
2 07 12 9905411
Hex nut
BM6-8-ZNNIV SI 		$0.95 8
TO
3 37 20 6788733
Vent tubing 		$212.80 1
TO
4 16 13 1183931
Cable clip
D18 		$7.56 1
TO
5 37 20 6782229
Pipe
225MM 		$39.45 1
TO
6 37 20 6782228
Pressure accumulator, air supply system
IN STOCK 		$2,289.75 1
IN
7 37206863879
Pipe, rear left air spring
2594MM 		$203.80 1
TO
8 37206863880
Pipe, rear right air spring
2960MM 		$203.80 1
TO
9 37206863873
Pipe, front left air spring
6261MM 		$359.72 1
TO
10 37206863874
Pipe, front right air spring
6895MM 		$359.72 1
TO
11 37 22 1092403
Screwed connection
D=4MM 		$5.05 10
TO
12 34 30 6784201
Line clip, double 		$4.01 6
TO
13 34326855500
Brake pipe bracket 		$1.38 18
TO
14 37 22 6776050
Pipe clip 		$1.38 8
TO
15 34326880898
Brake pipe bracket 		$5.01 17
TO
16 34317707371
Tandem clamp
D=5-8/10-12MM 		$3.52 3
TO
17 61138370478
Cable tie 		$0.74 2
TO
18 51721866416
Edge protection 		$16.04 1
TO
19 37 14 6756263
Pressure sensor
21BAR
IN STOCK 		$192.20 1
IN
