Name: Brake pipe rear
Rating: 4.5 (1 reviews)

Brake pipe rear of Rolls Royce Rolls Royce Cullinan RR31(2017-2023)

View All

Rolls Royce Cullinan RR31(2017-2023) - Brake pipe rear

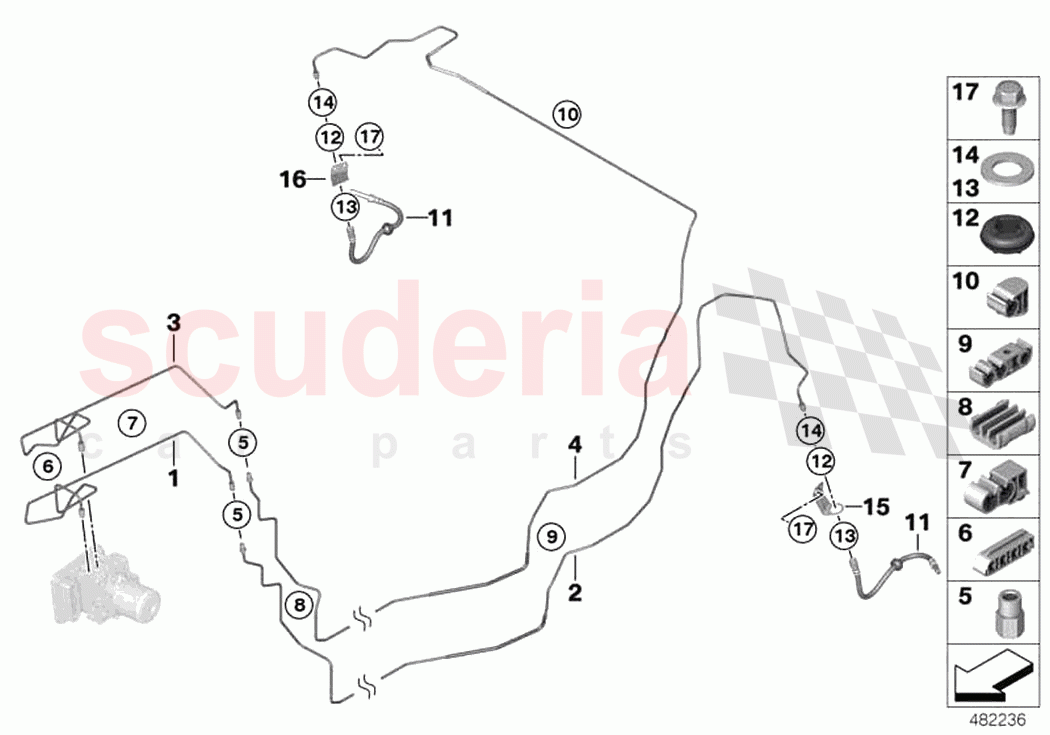

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	34326874156	Pipe -DSC hydraulic unit-	$62.64	To Order

Photo	Part No	Description	Price (each)	Stock
	34326874170	Pipe -connecting piece-	$46.34	To Order

Photo	Part No	Description	Price (each)	Stock
	34326874158	Pipe -DSC hydraulic unit-	Enquire	To Order
	34326899307	Pipe -DSC hydraulic unit-	$62.30	To Order

Photo	Part No	Description	Price (each)	Stock
	34326874172	Pipe -connecting piece-	Enquire	To Order
	34326899309	Pipe -connecting piece-	$64.34	To Order

Photo	Part No	Description	Price (each)	Stock
	34326868934	Connection piece	$11.16	To Order

Photo	Part No	Description	Price (each)	Stock
	34326777692	Spacer, 4-part	$4.22	To Order

Photo	Part No	Description	Price (each)	Stock
	34326871117	Line clip, double	$1.38	To Order

Photo	Part No	Description	Price (each)	Stock
	34321107991	Spacer holder	$5.63	To Order

Photo	Part No	Description	Price (each)	Stock
	34306751993	Brake pipe bracket	$10.32	To Order

Photo	Part No	Description	Price (each)	Stock
	34326855500	Brake pipe bracket	$1.38	To Order

Photo	Part No	Description	Price (each)	Stock
	34206861806	Brake hose rear	$59.72	To Order

Photo	Part No	Description	Price (each)	Stock
	34306875170	Rubber grommet	$3.65	To Order

Photo	Part No	Description	Price (each)	Stock
	34301163613	Washer	$2.04	To Order
	7119904119	Washer	$1.48	To Order

Photo	Part No	Description	Price (each)	Stock
	37131114028	Washer	$2.42	To Order

Photo	Part No	Description	Price (each)	Stock
	34306875485	Holder, brake hose, rear left	$40.80	To Order

Photo	Part No	Description	Price (each)	Stock
	34306875486	Holder, brake hose, rear right	$40.80	To Order

Photo	Part No	Description	Price (each)	Stock
	7131025735	Screw, self tapping	$1.20	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
01	34326874156	Pipe -DSC hydraulic unit-	34326874156 Pipe -DSC hydraulic unit- M10/M10	$62.64	1
02	34326874170	Pipe -connecting piece-	34326874170 Pipe -connecting piece- M10/M10	$46.34	1
03	34326874158	Pipe -DSC hydraulic unit-	34326874158 Pipe -DSC hydraulic unit- M10/M10; from 04.2019	-	1	Enquire
03	34326899307	Pipe -DSC hydraulic unit-	34326899307 Pipe -DSC hydraulic unit- M10/M10	$62.30	1
04	34326874172	Pipe -connecting piece-	34326874172 Pipe -connecting piece- M10/M10; from 04.2019	-	1	Enquire
04	34326899309	Pipe -connecting piece-	34326899309 Pipe -connecting piece- M10/M10	$64.34	1
05	34326868934	Connection piece	34326868934 Connection piece M10X1	$11.16	2
06	34326777692	Spacer, 4-part	34326777692 Spacer, 4-part	$4.22	1
07	34326871117	Line clip, double	34326871117 Line clip, double	$1.38	2
08	34321107991	Spacer holder	34321107991 Spacer holder	$5.63	1
09	34306751993	Brake pipe bracket	34306751993 Brake pipe bracket	$10.32	2
10	34326855500	Brake pipe bracket	34326855500 Brake pipe bracket	$1.38	2
11	34206861806	Brake hose rear	34206861806 Brake hose rear	$59.72	2
12	34306875170	Rubber grommet	34306875170 Rubber grommet	$3.65	2
13	34301163613	Washer	34301163613 Washer 14X25X2-ZNS3	$2.04	2
13	7119904119	Washer	7119904119 Washer 12-300 HV-ZNS3; to 12.2020	$1.48	2
14	37131114028	Washer	37131114028 Washer 10X25X1,5-ZNS3	$2.42	2
15	34306875485	Holder, brake hose, rear left	34306875485 Holder, brake hose, rear left	$40.80	1
16	34306875486	Holder, brake hose, rear right	34306875486 Holder, brake hose, rear right	$40.80	1
17	7131025735	Screw, self tapping	7131025735 Screw, self tapping M6X16MM	$1.20	4

Brake Pipe Rear

Rolls Royce Cullinan RR31(2017-2023)

Rolls Royce Cullinan RR31(2017-2023) - Brake pipe rear
