Name: Rear axle drive
Rating: 4.9 (1 reviews)

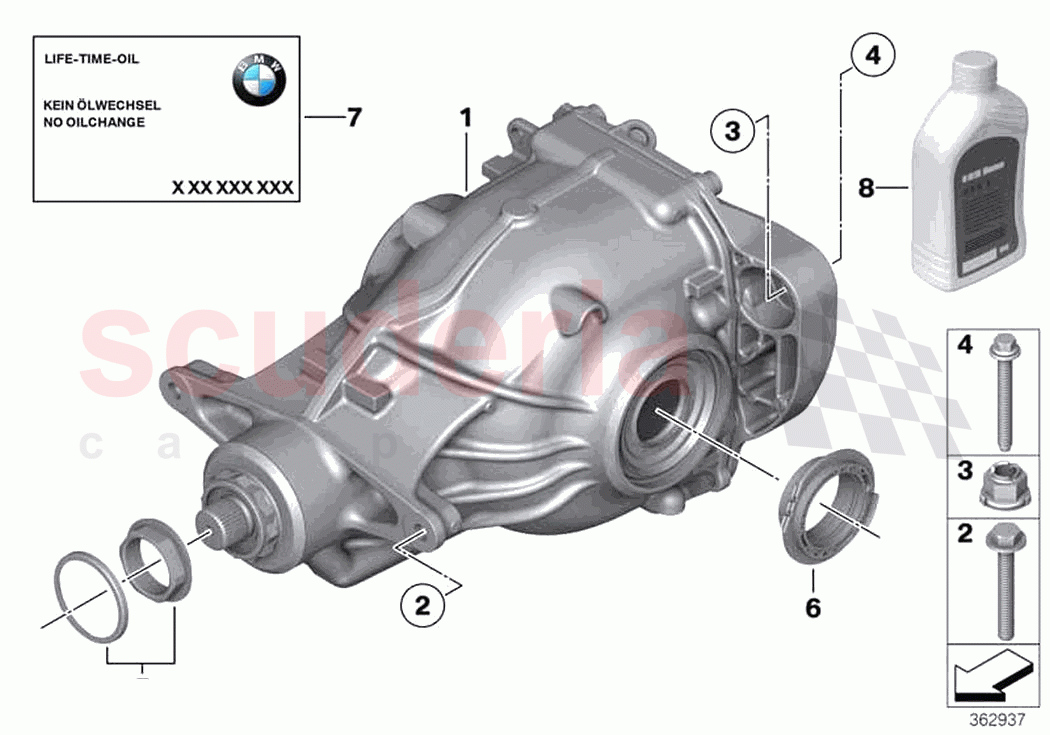

View the exploded parts diagram to find the part you are looking for

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

TO ORDER

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	07 11 9906460	Hex Bolt with washer	$6.19	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	33 30 6787062	Combination nut	$4.96	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	33 17 6760336	Hex Bolt with washer	$13.84	To Order

Photo	Part No	Description	Price (each)	Stock
	33 12 7607158	Repair kit insert nut	$41.03	To Order

Photo	Part No	Description	Price (each)	Stock
	31537502681	Assembly ring	$6.46	To Order

Photo	Part No	Description	Price (each)	Stock
	01 39 9791197	Stick-on label	$7.40	To Order

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Key
01	33109425847	Rear-axle-drive	33109425847 Rear-axle-drive I=2,81; from 03.2020	$2,730.13	1	TO
01	33109454765	Rear-axle-drive	33109454765 Rear-axle-drive 225AL I=2,81	$3,976.72	1	TO
01	33109454766	Rear-axle-drive	33109454766 Rear-axle-drive 225AL I=2,81	$4,654.29	1	TO
02	07 11 9906460	Hex Bolt with washer IN STOCK	07 11 9906460 Hex Bolt with washer M12X1,5X110 IN STOCK	$6.19	2	IN
03	33 30 6787062	Combination nut IN STOCK	33 30 6787062 Combination nut M14X1,5-10ZNNIV IN STOCK	$4.96	1	IN
04	33 17 6760336	Hex Bolt with washer	33 17 6760336 Hex Bolt with washer M14X1,5X133ZNS3	$13.84	1	TO
05	33 12 7607158	Repair kit insert nut	33 12 7607158 Repair kit insert nut M39X1,5X20	$41.03	1	TO
06	31537502681	Assembly ring	31537502681 Assembly ring	$6.46	1	TO
07	01 39 9791197	Stick-on label	01 39 9791197 Stick-on label DE, EN	$7.40	1	TO
08	83222413512	Hypoid axle oil G3	83222413512 Hypoid axle oil G3 0,5L; from 02.2020	$55.34	-	TO
08	83222471487	Hypoid axle oil G5	83222471487 Hypoid axle oil G5 0,5L	$55.34	-	TO

Rear Axle Drive

Rolls Royce Cullinan RR31(2017-2023)
