Fuel Pipe And Mounting Parts

Rolls Royce Cullinan RR31(2017-2023)

Find Your Part

Rolls Royce Cullinan RR31(2017-2023) - Fuel Pipe and Mounting Parts

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
16127446741 Fuel feed line front $124.21 To Order
Photo Part No Description Price (each) Stock
16127454999 Fuel feed line $124.21 To Order
Photo Part No Description Price (each) Stock
16127415286 Fuel feed line rear $124.21 To Order
Photo Part No Description Price (each) Stock
16137446742 Scavenging line front $177.07 To Order
16125A20A13 Scavenging line front $310.37 To Order
Photo Part No Description Price (each) Stock
16127455000 Scavenge air line $128.39 To Order
Photo Part No Description Price (each) Stock
16137446743 Scavenging line rear $115.44 To Order
Photo Part No Description Price (each) Stock
07147441116 Clip $11.47 To Order
07145A154B0 Clip $1.38 To Order
Photo Part No Description Price (each) Stock
07147441119 Clip $4.72 To Order
Photo Part No Description Price (each) Stock
07147441123 Clip $6.94 To Order

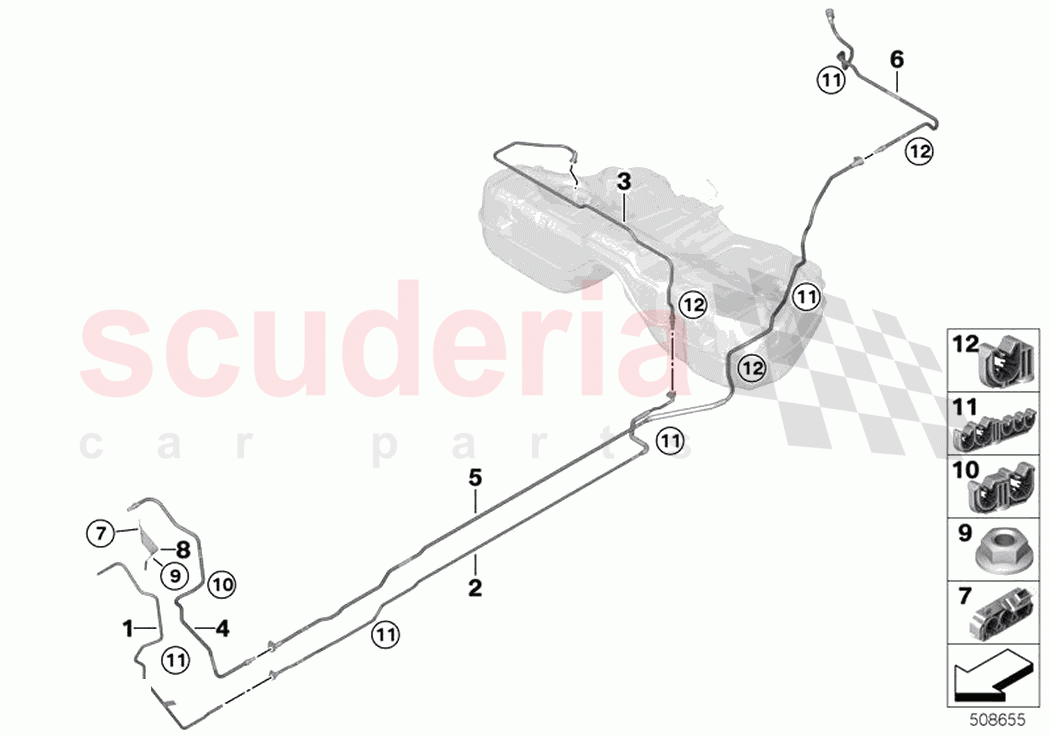

Fuel Pipe and Mounting Parts of Rolls Royce Rolls Royce Cullinan RR31(2017-2023) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
01 16127446741
Fuel feed line front 		$124.21 1
TO
02 16127454999
Fuel feed line 		$124.21 1
TO
03 16127415286
Fuel feed line rear 		$124.21 1
TO
04 16137446742
Scavenging line front
from 08.2020 		$177.07 1
TO
04 16125A20A13
Scavenging line front
to 08.2020 		$310.37 1
TO
05 16127455000
Scavenge air line 		$128.39 1
TO
06 16137446743
Scavenging line rear 		$115.44 1
TO
07 07147441116
Clip
D8/10 D10/12; from 02.2021 		$11.47 1
TO
07 07145A154B0
Clip
D10 D12 		$1.38 1
TO
11 07147441119
Clip
2XD5 D4 D10/12 		$4.72 11
TO
12 07147441123
Clip
D10/12 		$6.94 8
TO
